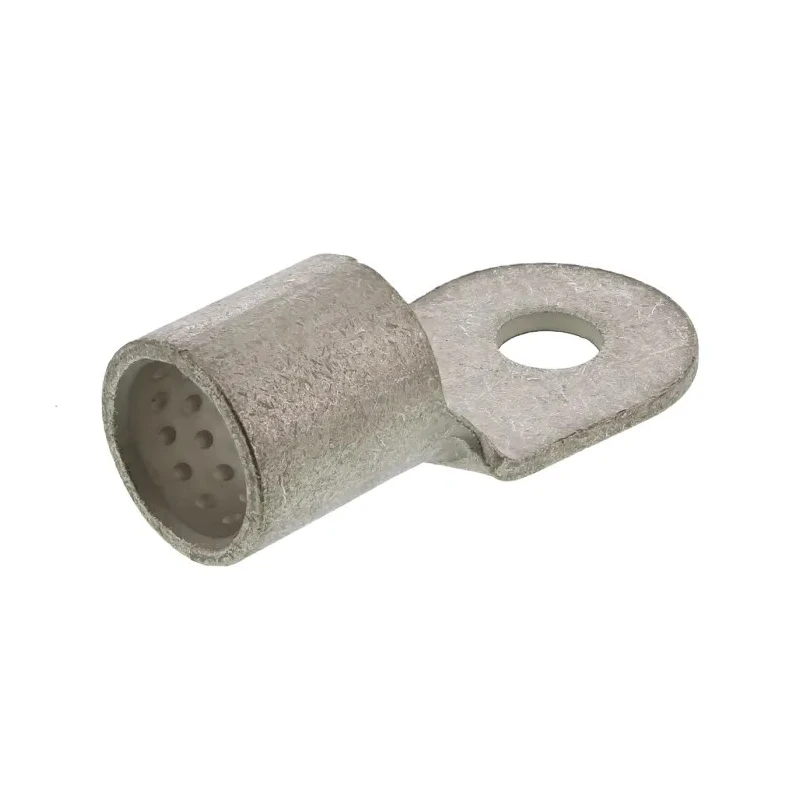

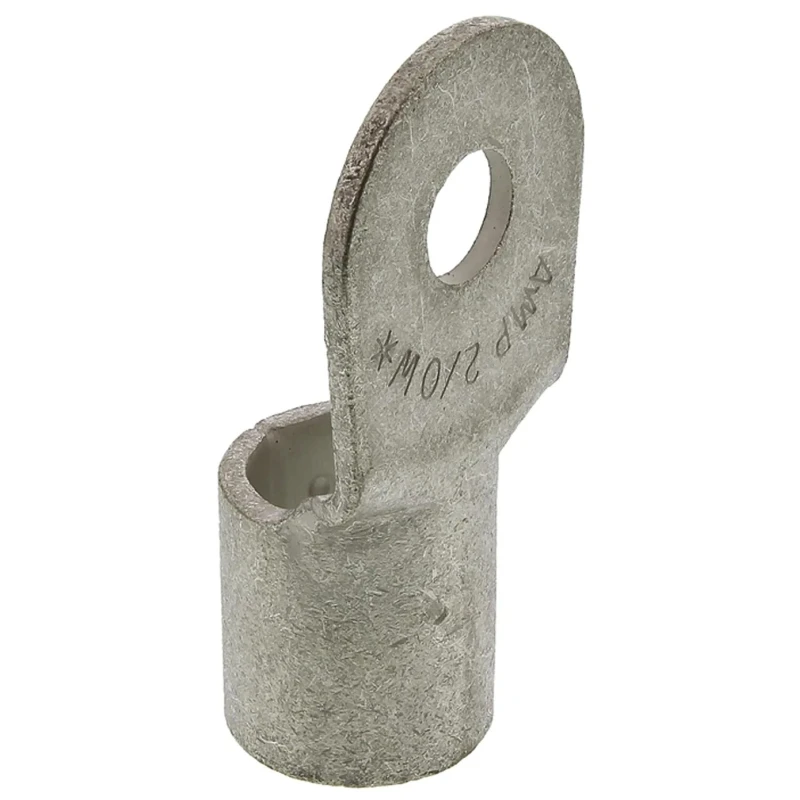

TE Connectivity Solistrand Insulated Ring Terminal M8 Stud Size 2 AWG Wire Size 2 AWG 36922
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 2.03mm |
| Model | 36922 |
| Insulation | Insulated |
| Overall Length | 50.8mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | CSA, RoHS, UL |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 60.6mm² |
| Maximum Wire Size mm² | 76.3mm² |
| Minimum Wire Size AWG | 2AWG |
| Outer Ring Diameter | 24.03mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
Key Features
- Constructed of high conductivity copper for optimal electrical performance.
- Electro tin plating enhances resistance to corrosion.
- Robust design suitable for harsh industrial environments.
- Brazed seams increase barrel strength for durability.
- Dimpled and serrated barrel improves tensile strength and electrical contact.
- Bell-shaped mouth on the barrel allows easy and quick wire insertion.
- Rated for maximum operating temperature of 170°C for versatile applications.
- Compatible with SOLISTRAND crimping tools for optimal connection quality.
Product Description
TE Connectivity 36922 Solistrand Insulated Ring Terminal features a robust design with an M8 stud size and 2 AWG wire size, constructed from fine grade high conductivity copper for superior electrical performance. It is electro tin plated to resist corrosion effectively and designed to withstand harsh industrial environments with brazed barrel seams for added strength.
The terminal’s barrel interior is serrated and dimpled to maximize tensile strength and electrical contact area after crimping, ensuring high reliability. The bell-shaped barrel entrance facilitates quick and easy wire insertion, reducing installation time.
This ring terminal is rated for a maximum operating temperature of 170°C, making it suitable for a wide range of electrical and industrial applications including materials handling equipment, motors, heavy equipment, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, instruments, and control systems.
These terminals are designed to be used with SOLISTRAND crimping tools which optimize the mechanical and electrical connection, ensuring robust performance even in challenging environments.
Constructed of fine grade high conductivity copper for optimal electrical performance. Electro tin plating enhances corrosion resistance. Robust design for harsh industrial use. Brazed seams provide increased strength around the barrel.
Dimpled and serrated barrel for improved tensile strength and electrical contact. Bell-shaped mouth aids quick, easy insertion of wires. 170°C maximum operating temperature rating. Compatible with SOLISTRAND crimping tools.
Ideal for industrial, manufacturing, electrical assembly, and commercial equipment wiring needs, this Ring Terminal ensures reliable connections in demanding environments. Explore the full range of TE Connectivity power connectors and accessories available through EnvMart for your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 170°C, making it suitable for various electrical and industrial applications.
This terminal is constructed from high conductivity copper and features electro tin plating to enhance corrosion resistance.
The stud size for this model is M8, which is compatible with various industrial applications.
This terminal is compatible with wire sizes ranging from 2 AWG, with a minimum wire size of 60.6 mm² and a maximum wire size of 76.3 mm².
The overall length of this ring terminal is 50.8 mm, providing adequate space for connections in various applications.
This model is designed to be used with SOLISTRAND crimping tools, which optimize the mechanical and electrical connection.
This terminal is certified to CSA, RoHS, and UL standards, ensuring compliance with industry regulations.
The barrel features dimpled and serrated interiors which enhance tensile strength and electrical contact after crimping, ensuring reliable connections.
The outer ring diameter is 24.03 mm and the inner ring diameter is 8.33 mm, which are important for fitting and connection.
This terminal has a robust design suitable for harsh industrial environments, making it ideal for applications such as motors and heavy equipment.
The thickness of this ring terminal is 2.03 mm, contributing to its strength and durability.
This terminal is suitable for a wide range of applications including materials handling equipment, switchgear, and telecommunications.
