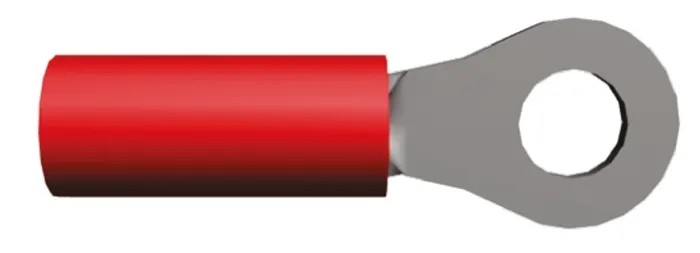

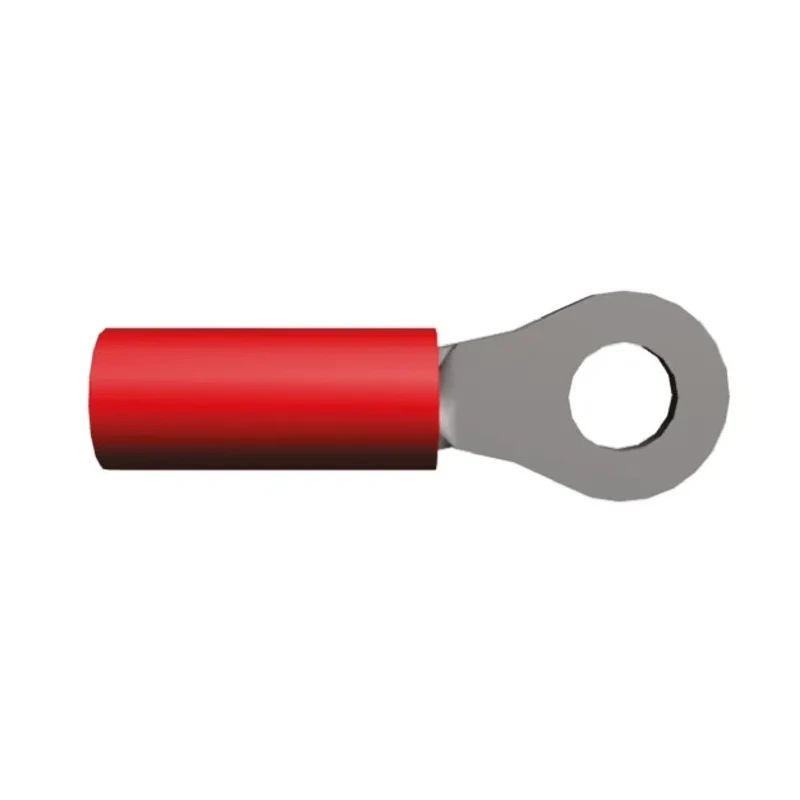

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Wire Size Red 36152
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 36152 |
| Insulation | Insulated |
| Overall Length | 20.24mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed from high conductivity copper body providing excellent electrical performance.
- Features durable nylon insulation for secure and safe wire protection.
- Serrated barrel design ensures maximum contact and tensile strength after crimping.
- Copper sleeve improves wire insulation support and prevents fraying of wire strands.
- Colour coded red sleeve simplifies wire size identification and installation.
- Funnelled wire entry facilitates easy and fast wire insertion in production environments.
- Suitable for a wide range of industrial applications including aerospace, automotive, lighting, and control systems.
- Complies with RoHS standards ensuring environmentally safe manufacture.
Product Description
TE Connectivity 36152 PIDG Insulated Ring Terminal features an M3.5 stud size and supports wire sizes 22 AWG to 16 AWG, with a nylon insulation sleeve in red color. This ring terminal is engineered with a high conductivity copper body and a tin-plated contact, offering reliable and efficient electrical connections.
The barrel contains serrations that maximize contact area and tensile strength once crimped, ensuring secure wire attachment. The copper sleeve inside the barrel enhances insulation support and prevents wire fraying, while the colour coded nylon sleeve identifies wire size quickly and aids in tooling identification. The funnelled entry design further facilitates fast wire insertion, making it ideal for high-volume assembly lines.
These terminals meet or exceed multiple industry standards, including RoHS compliance, and are suitable for diverse industrial and commercial applications such as instrumentation, control panels, aerospace, motors, power supplies, and lighting equipment. The robust design ensures durability and performance in demanding operating environments, with a maximum operating temperature of 105°C.
High conductivity copper body for optimum electrical performance. Durable nylon insulation improves wire protection and longevity. Serrated barrel provides superior contact and tensile strength. Copper sleeve prevents wire fraying and improves insulation support.
Colour coded red sleeve for easy wire size and crimping tool identification. Funnelled wire entry allows quick and reliable wire insertion. Compliant with RoHS standards to meet environmental regulations. Suitable for industrial, automotive, aerospace, and electrical control applications.
TE Connectivity PIDG ring terminals offer a versatile and reliable solution for wire termination needs in a variety of industrial sectors. Browse more Ring Terminals and power connectors at EnvMart to find components tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 16 AWG, with a minimum wire size of 0.26 mm² and a maximum wire size of 1.65 mm².
The stud size for this terminal is M3.5.
It features a high conductivity copper body with a tin-plated contact and durable nylon insulation.
The maximum operating temperature for this terminal is 105°C.
The serrated barrel design maximizes contact area and tensile strength after crimping, ensuring a secure wire attachment.
The insulation sleeve is red, which simplifies wire size identification and aids in tooling identification during installation.
The overall length of this terminal is 20.24 mm.
This terminal complies with RoHS standards, ensuring environmentally safe manufacture.
The inner ring diameter is 3.68 mm, and the outer ring diameter is 7.14 mm.
It is suitable for a wide range of industrial applications, including aerospace, automotive, lighting, and control systems.
The funnelled wire entry design facilitates easy and fast wire insertion, making it ideal for high-volume assembly lines.
The thickness of this terminal is 0.79 mm.
