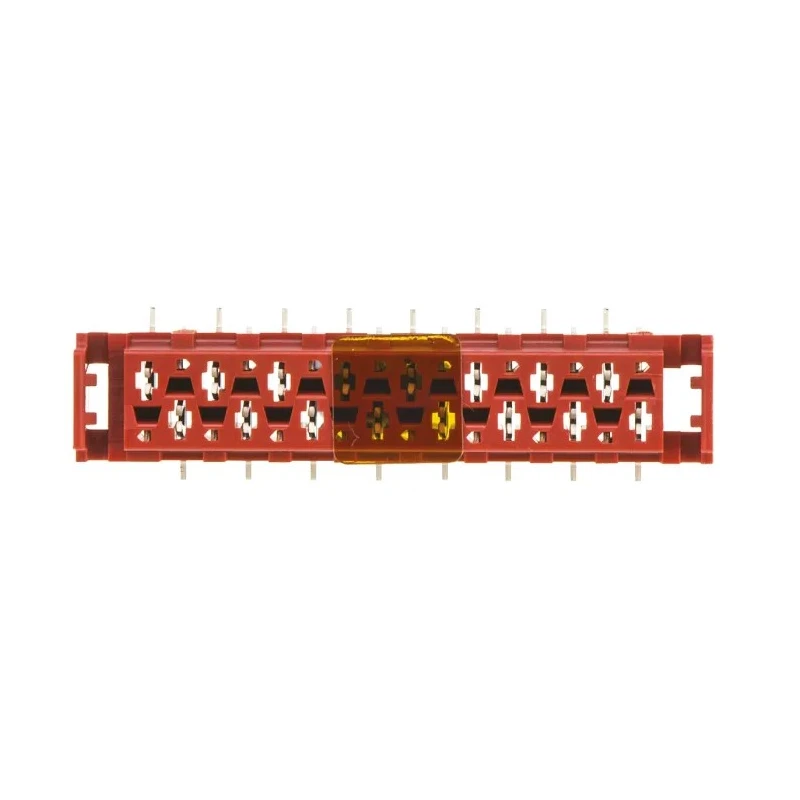

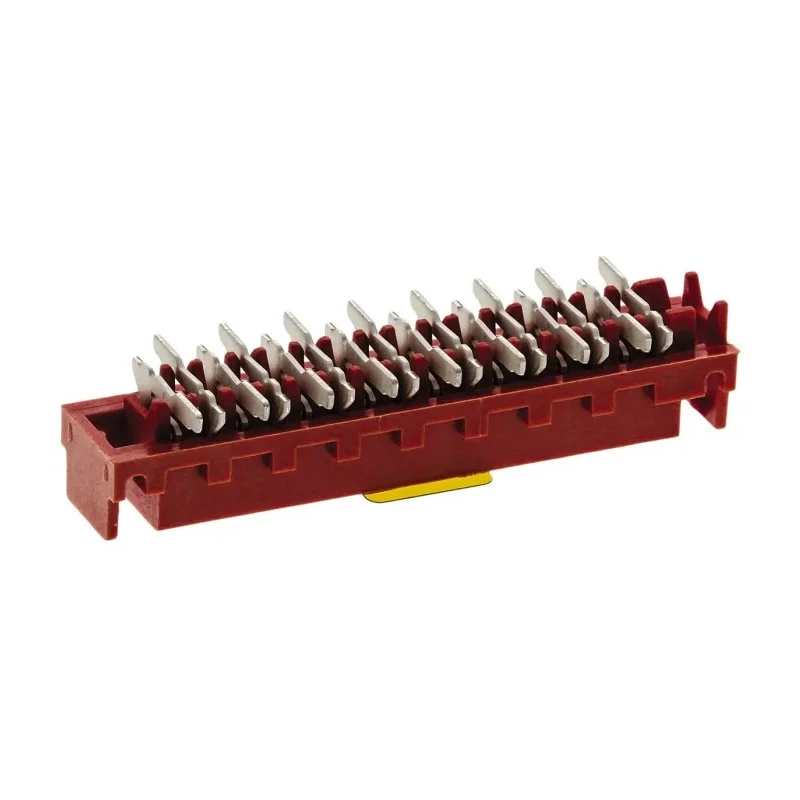

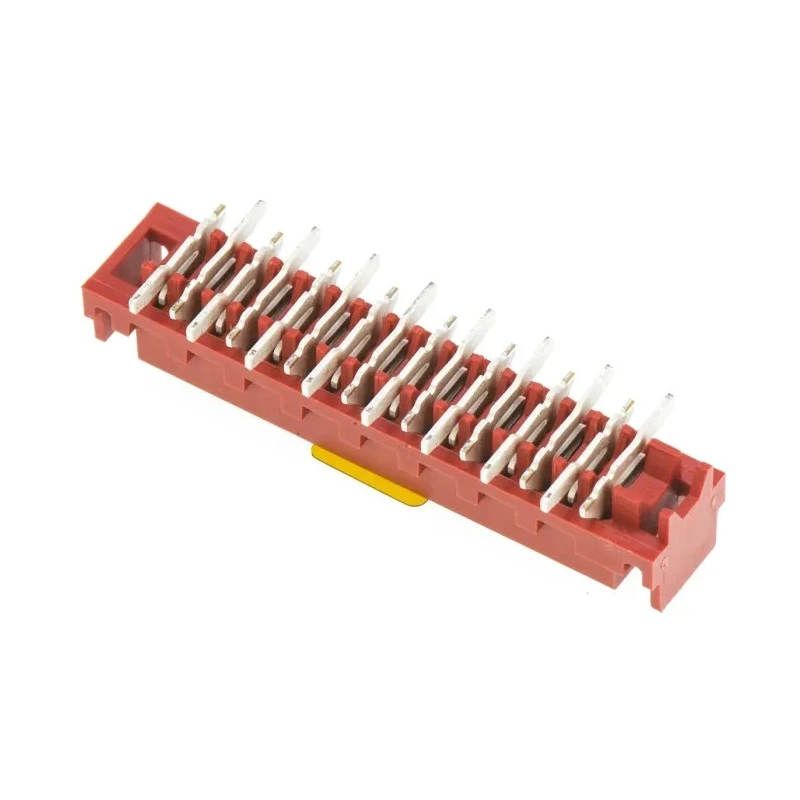

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 16-Contact 2 Row 2.54mm Pitch 230V 1.5A 8-338069-6

TE Connectivity 8-338069-6 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female-on-board SMT connector designed for use in electronic and industrial applications requiring compact, reliable board-to-board connections. Featuring 16 electrical contacts arranged in 2 rows with a 2.54 mm pitch, this PCB socket supports operating voltages up to 230 volts and currents up to 1.5 amperes, suitable for a variety of electronic assemblies.

The socket housing is made from durable polyamide material, providing excellent mechanical strength and thermal resistance within a temperature range of -40°C to 105°C. Bronze contacts plated with tin ensure corrosion resistance and long-lasting connectivity. The connector's contact spring system prevents fretting corrosion through a gas-tight connection, while a positioning spring absorbs movement caused by vibration and thermal expansion, enhancing reliability in harsh environments.

Its straight orientation and surface mount type make this socket suitable for compact and space-saving PCB designs. The Micro-MaTch series includes polarization features to prevent mismating, and locking latches are available for secure mating connections (part numbers with locking latches identified separately).

This 8-338069-6 socket is ideal for industrial, robotic, HVAC, automotive, audio, communication devices, and other electronic manufacturing environments. Applications include production and material handling equipment, robots and motors, control units, central heating units, car radios, navigation systems, dash board systems, base stations, and set top boxes.

Compact and space-saving with a 2.54 mm pitch. Supports working voltage up to 230 volts and current rating of 1.5 amperes. Constructed with polyamide housing and bronze contacts plated with tin. Designed for surface mount installation and board-to-board connector systems.

Temperature range from -40°C to 105°C to ensure reliable operation. Polarized contacts prevent mismating during assembly. Contact springs provide gas tight connection and prevent fretting corrosion. Ideal for robotics, control units, automotive electronics, and audio equipment.
