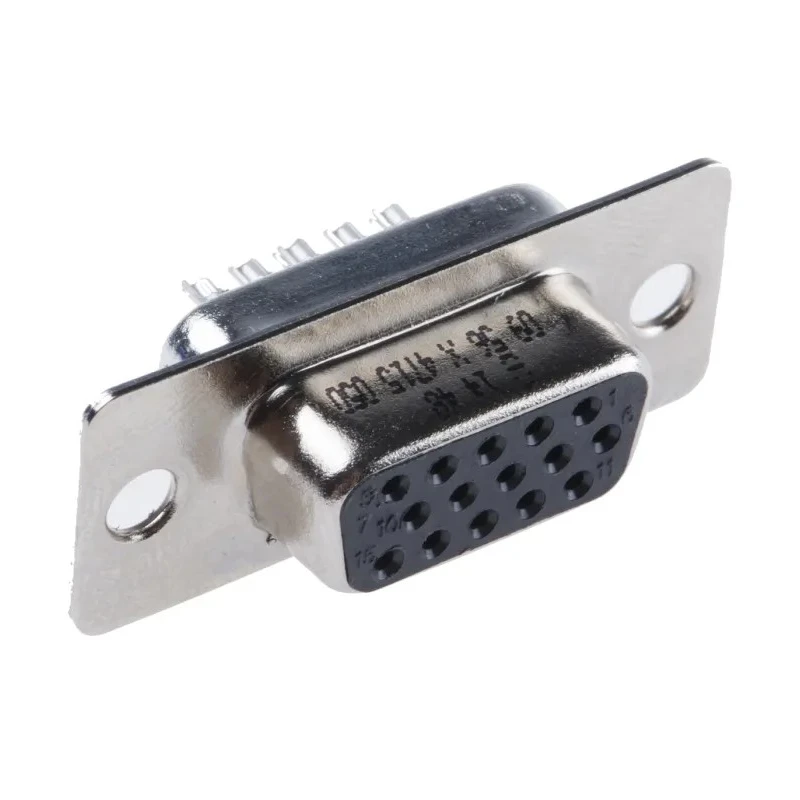

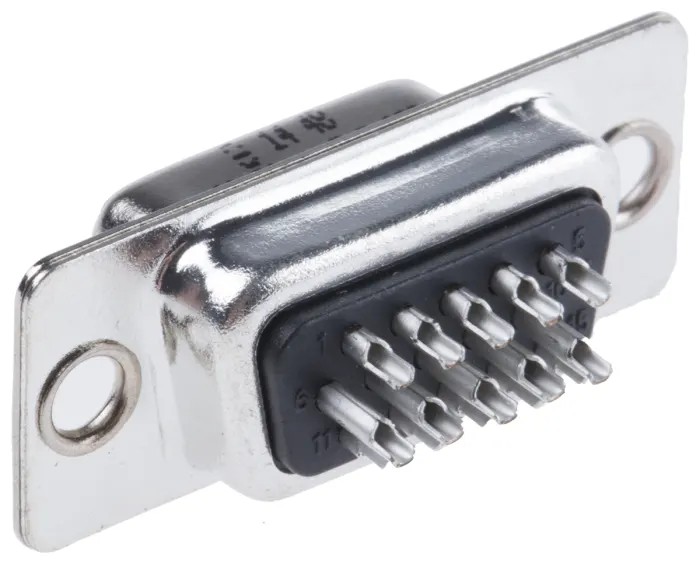

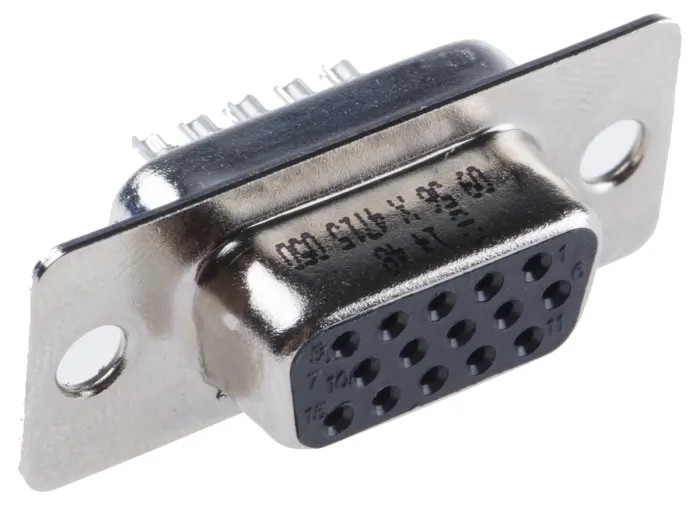

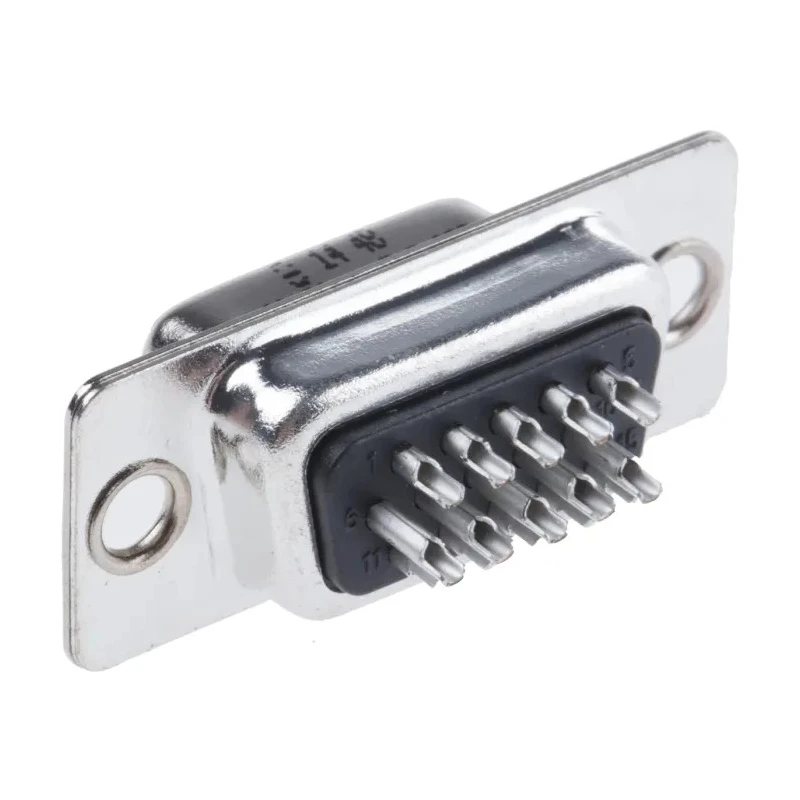

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561004715050
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
| HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- Features 15 contact points for enhanced connectivity.
- Supports a maximum current of 2A suitable for power circuits.
- Constructed with steel housing for durability and strength.
- Operates within -55°C to 105°C temperature range for versatile environments.
- Gold-plated copper alloy contacts ensure excellent corrosion resistance and conductivity.
- Designed with a straight orientation and cable mount type for easy installation.
- Solder termination type assures secure and stable connections.
Product Description
HARTING 09561004715050 D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector offers robust and precise interconnection solutions for industrial, electronics, and power supply applications. Engineered with high-density contact points exceeding standard D-sub capacities by 70%, this connector is ideal for complex setups requiring reliable performance.
The connector features a heavy-duty steel housing ensuring mechanical protection and long service life. Contacts are made from copper alloy and plated with gold (≥ 0.76 μm Au) to resist corrosion and maintain excellent electrical conductivity. The straight orientation and cable mount type facilitate seamless cable integration in manufacturing and assembly environments.
With a voltage rating of 1000V and current handling of 2A, this connector is suitable for demanding electrical systems. Operating temperature ranges from -55°C to 105°C allow use in harsh industrial and environmental conditions. The solder termination ensures firm and durable connections essential in industrial automation, construction machinery, telecommunications, and computing equipment.
Designed for high-density applications, the 2.29 mm pitch configuration optimizes space while delivering performance reliability. This product is manufactured in China and adheres to Harting's quality standards, but does not carry specific certifications.
15 contacts with gold-plated copper alloy for reliability and corrosion resistance. Steel housing for mechanical robustness and durability. Suitable for current ratings up to 2A and voltage up to 1000V. Operates in a wide temperature range from -55°C to 105°C for diverse applications.
Straight cable mounting type with solder termination for stable electrical connections. This connector supports electronic manufacturing, industrial controls, telecommunications, automotive and aerospace hardware, and other precision assembly applications.
Discover more connectors and electrical components from HARTING in the EnvMart catalog for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a maximum current of 2A, making it suitable for power circuits.
The voltage rating for this connector is 1000V, allowing it to handle demanding electrical systems.
It operates within a temperature range of -55°C to 105°C, making it suitable for diverse environments.
This connector features 15 contact points, enhancing its connectivity capabilities.
The contacts are made from gold-plated copper alloy, ensuring excellent corrosion resistance and conductivity.
It utilizes a solder termination type, which provides secure and stable connections.
The connector has a straight orientation and is designed for cable mounting, facilitating easy installation.
The housing is constructed from steel, providing mechanical protection and durability.
This model features a pitch size of 2.29 mm, optimizing space for high-density applications.
This connector is manufactured in China, adhering to HARTING's quality standards.
It is suitable for a variety of applications including industrial controls, telecommunications, automotive, and aerospace hardware.
The contact gender for this connector is female, which is standard for D-Sub connectors.
