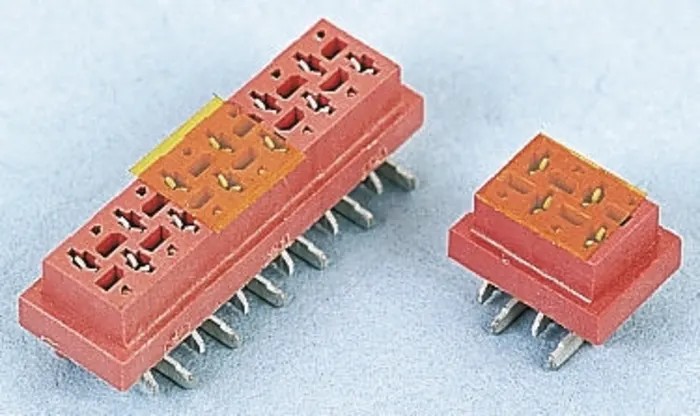

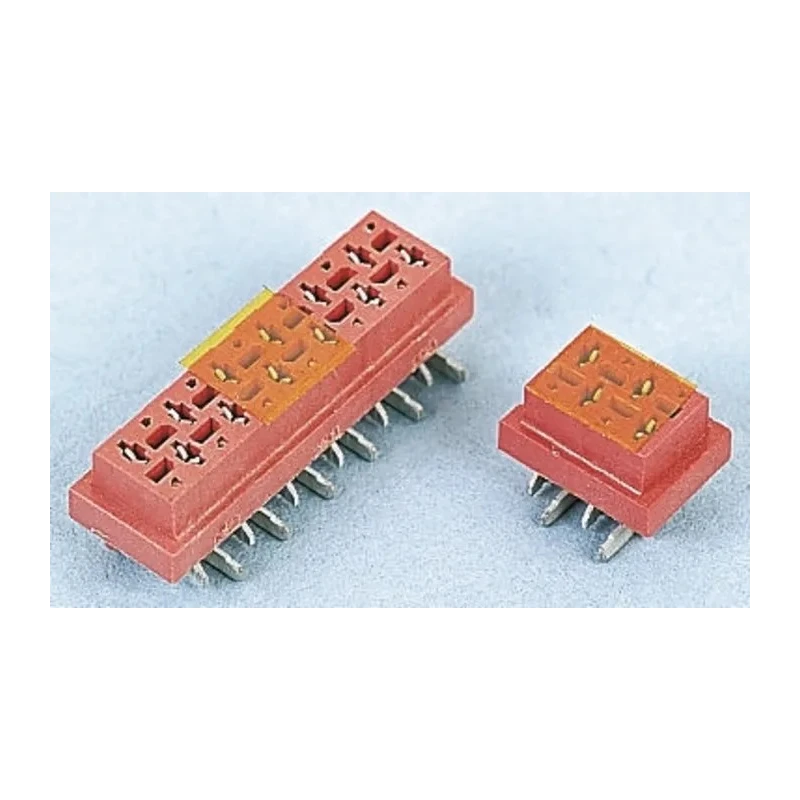

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 2.54 mm Pitch Solder 7-338069-6

TE Connectivity 7-338069-6 Micro-MaTch Series Straight Surface PCB Socket is a 6-contact female on-board SMT socket connector designed for board-to-board and wire-to-board applications. This surface mount connector type uses a 2-row, 2.54 mm pitch straight orientation to provide compact and efficient electrical interconnection solutions.

The socket features a polyamide housing ensuring mechanical stability and reliable PCB attachment by solder termination. Bronze female contacts with tin plating and an integrated spring contact system provide gas-tight connections that prevent fretting corrosion and ensure signal integrity over extended operating periods.

Rated for a current of 1.5A and a maximum voltage of 100V, the connector performs reliably within an operating temperature range of -40°C to 105°C. The Micro-MaTch series incorporates polarization features to prevent mismating, enhancing system reliability. Additionally, versions with locking latches are available to secure the mating connection against vibration and thermal expansion effects.

These connectors are widely applied in industrial and commercial fields including production and material handling equipment, robotics and motors, control units, automotive dashboard and navigation systems, audio equipment, set-top boxes, and central heating units. Their compact size and robust design make them suitable for environments requiring reliable electrical connectivity and durability.

Compact, space-saving design suited for SMT applications. Constructed with polyamide housing and bronze female contacts plated with tin. Rated for 1.5A current and 100V voltage for reliable electrical performance. Operates efficiently between -40°C and 105°C ambient temperatures.

Includes contact spring system preventing fretting corrosion for long-term durability. Polarized design prevents mismating in multi-connector systems. Surface mount type with straight orientation for easy PCB integration.

Equipped with optional locking latches for secure mating connections. Ideal for use in production equipment, robotics, automotive, and audio devices. Explore the PCB Socket category at EnvMart to discover more connectors by TE Connectivity and other leading brands optimized for various industrial and electronic applications.
