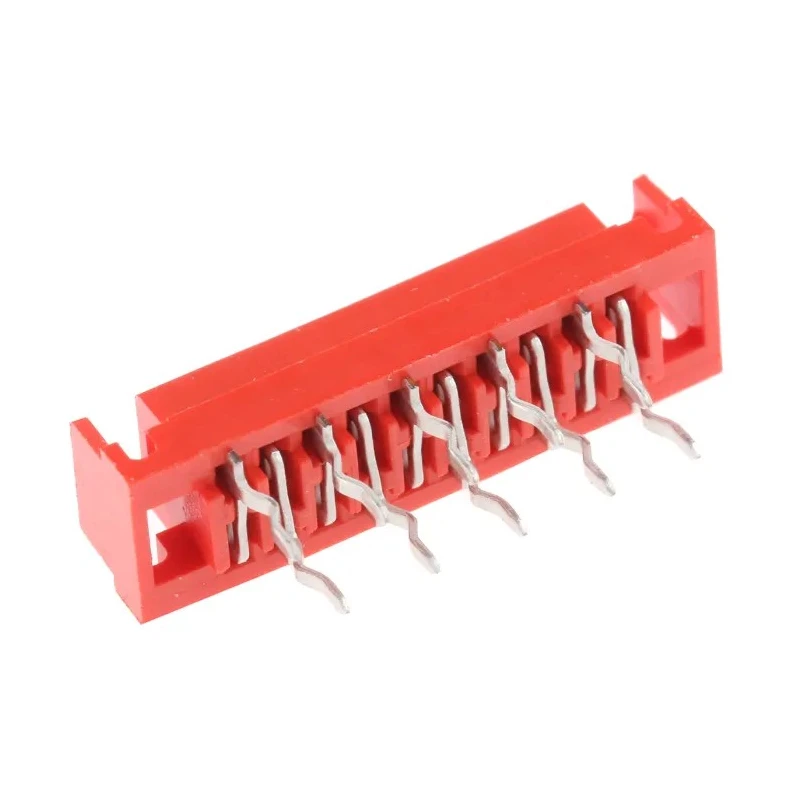

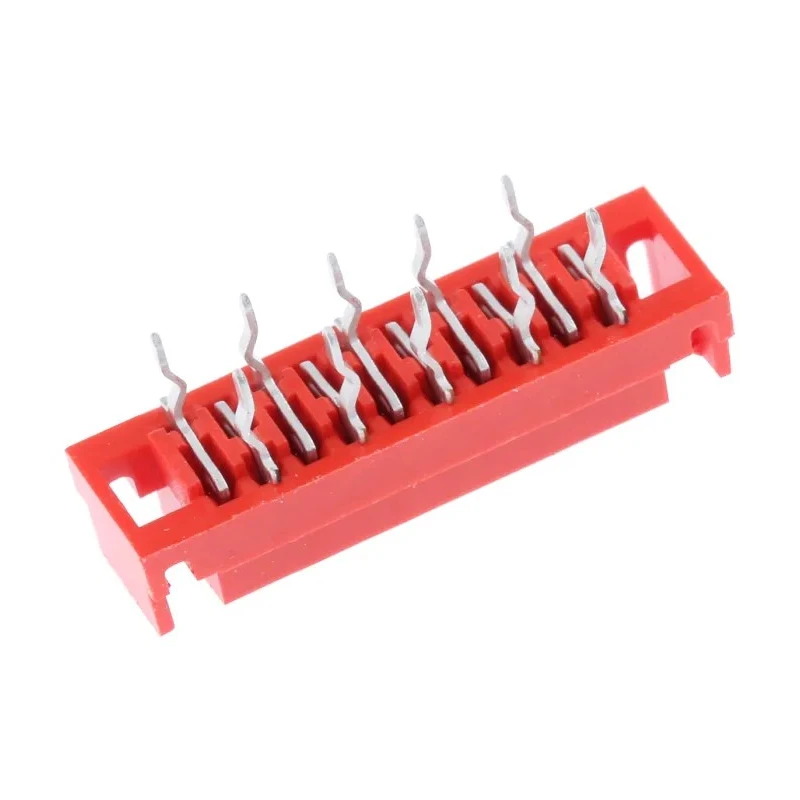

TE Connectivity Micro-MaTch Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch, Solder 1-338068-0
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact, space-saving design suitable for board-to-board connections.
- 10-contact, 2-row configuration with a 2.54 mm pitch.
- Female contact type with bronze contact material and tin plating for reliable signal transmission.
- Contact spring system prevents fretting corrosion and ensures gas-tight connection.
- Kinked leg design provides secure retention to the PCB.
- Operating voltage up to 100 V and current rating of 1.5 A.
- Suitable for operating temperatures from -40°C to 125°C.
- Straight orientation and through-hole mount type for robust mechanical stability.
Product Description
TE Connectivity 1-338068-0 Micro-MaTch Series Straight Through Hole PCB Socket is a female-on-board connector designed for reliable board-to-board or wire-to-board interconnections. Featuring a 10-contact, 2-row configuration with a 2.54 mm pitch, this solder termination socket ensures compact and space-saving integration in electronic devices.
The connector uses bronze contacts with tin plating and includes a contact spring system that prevents fretting corrosion to guarantee a lasting gas-tight connection. Its kinked leg design securely retains the socket to the printed circuit board, enhancing mechanical reliability during vibration and thermal expansion.
Rated for 1.5 A current and up to 100 V voltage, the socket performs consistently in extreme conditions ranging from -40°C to 125°C. The housing is made from high-quality liquid crystal polymer, providing excellent durability suitable for demanding industrial applications.
This Micro-MaTch socket suits a wide range of applications including production and material handling equipment, robots, motors, control units, central heating units, car radios, navigation systems, dashboard systems, base stations, set-top boxes, and various audio equipment.
Compact and space-saving design with 10 contacts in 2 rows. Female contacts featuring bronze material and tin plating. Contact spring system provides fretting corrosion resistance. Kinked legs ensure secure PCB retention.
Rated for 1.5A current and 100V operating voltage. Operating temperature range from -40°C to 125°C. Through-hole solder termination with straight orientation. Housing material is liquid crystal polymer for durability. Suitable for a variety of industrial and electronic applications.
This product is made in Germany and is supplied new. TE Connectivity Micro-MaTch connectors provide a reliable and efficient solution for PCB connections in various electrical and industrial environments.
Explore more high-quality PCB Sockets and electronic components in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1.5 A.
The maximum operating voltage for this connector is 100 V.
The pitch size of the contacts is 2.54 mm.
The contacts are made of bronze with tin plating, while the housing is constructed from liquid crystal polymer.
It operates within a temperature range of -40°C to 125°C.
This PCB socket features 10 contacts arranged in a 2-row configuration.
This model uses solder termination for secure connections.
The orientation type of this socket is straight.
It is designed for through-hole mounting, providing robust mechanical stability.
This socket is suitable for various applications, including production equipment, robots, motors, and audio equipment.
This product is manufactured in Germany.
This model uses a board-to-board connector system.
