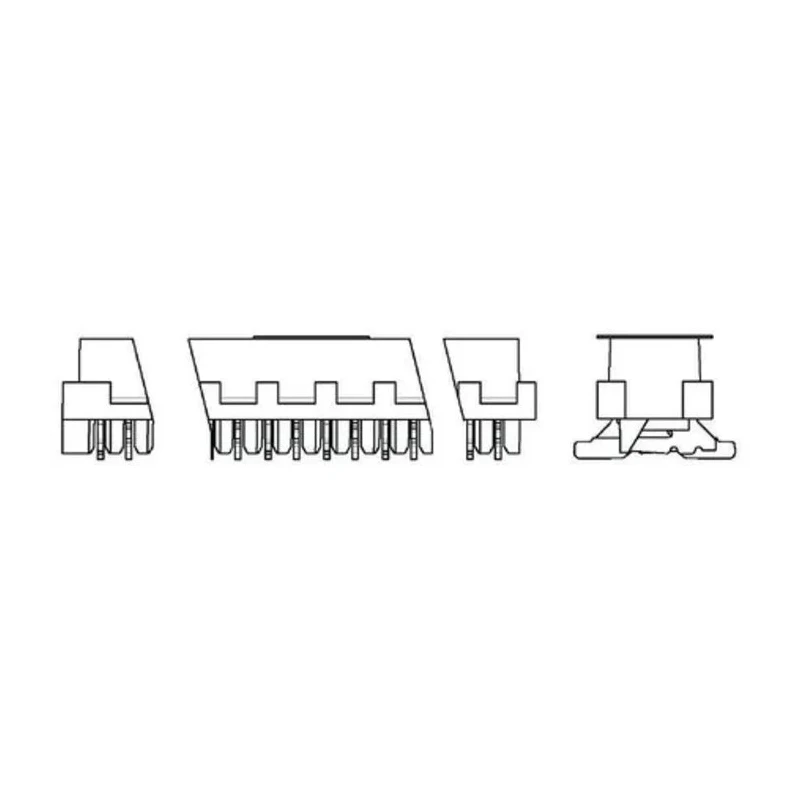

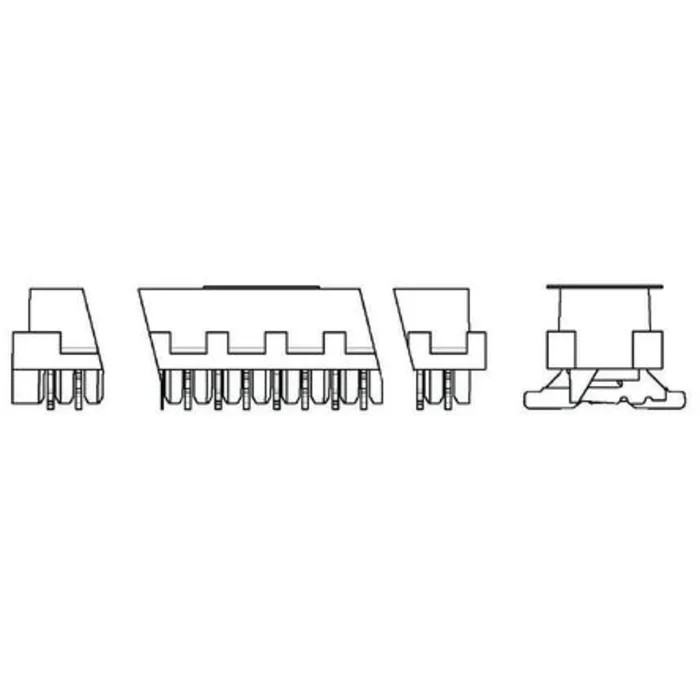

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch Solder 1-188275-0

TE Connectivity 1-188275-0 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female-on-board socket designed for surface mounting on printed circuit boards with 10 contacts arranged in 2 rows and a 2.54 mm pitch. It supports wire-to-board interconnections with a compact and space-saving profile ideal for electronic assemblies requiring reliable and robust connectivity.

The female contacts integrate a spring system to prevent fretting corrosion and provide a gas-tight connection, enhancing durability and signal integrity. A positioning spring is included to absorb mechanical movement caused by vibration and thermal expansion, maintaining secure mating over time. The polarized design safeguards against mismating, important in demanding industrial applications.

This socket supports an operating current of 1.5 A and voltage up to 230 V, with an operational temperature range from −40°C to 105°C, making it compatible with a broad range of industrial, control, and communication electronics. The polyamide housing ensures excellent insulation and mechanical strength while the bronze contacts plated with tin improve electrical performance and resistance to corrosion.

The straight orientation and surface mount configuration enable straightforward PCB integration, supporting compact and efficient electronic designs. Typical applications include production and material handling equipment, robots, motors, control units, central heating units, car radios, navigation systems, dashboard systems, base stations, set-top boxes, and audio equipment where reliable board-level connections are essential.

The socket features a compact and space-saving design. Contact springs prevent fretting corrosion and provide gas-tight connections. Polarized to prevent incorrect mating ensuring operational reliability. Made with bronze contacts and tin plating for excellent conductivity and durability.

Suitable for surface mounting with straight orientation for ease of PCB integration. Rated for 1.5 A current and 230 V voltage in harsh temperature environments. Material composition includes polyamide housing for electrical insulation.

Manufactured in Germany, assuring high production quality. Ideal for industrial, manufacturing, automotive, and communication electronics applications. Part of the Micro-MaTch series designed for compact electronic systems.
