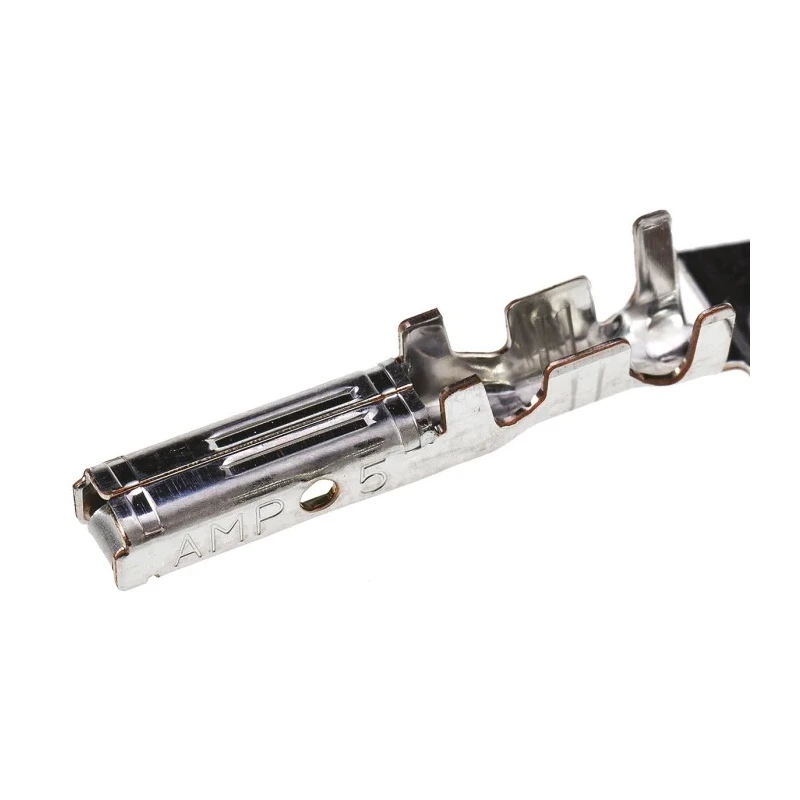

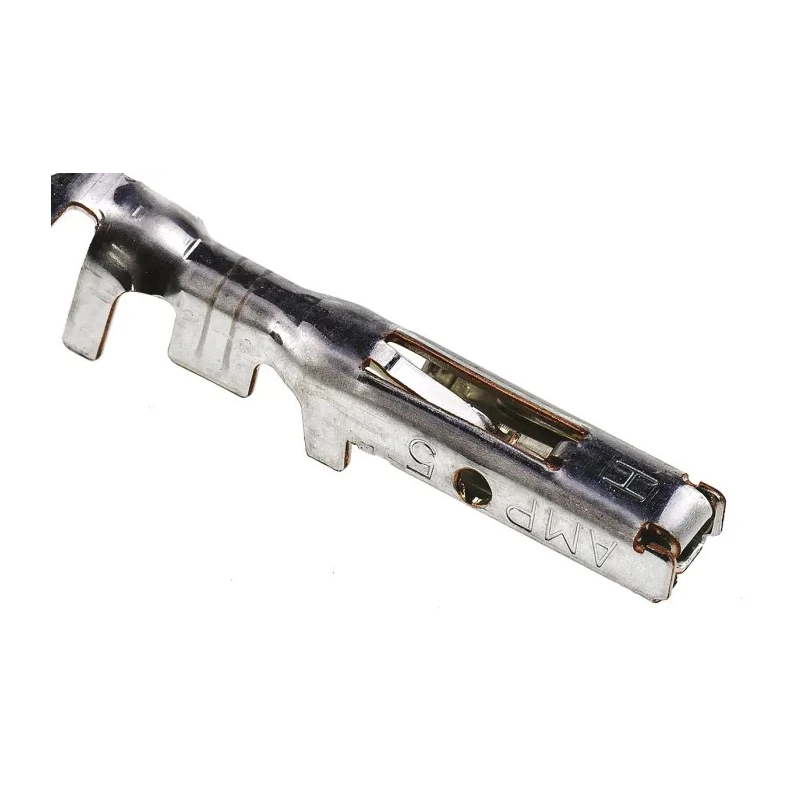

TE Connectivity Dynamic 3000 Series Female Crimp Terminal 15A Current 20-16 AWG Copper Alloy 1-175196-5

TE Connectivity 1-175196-5 Dynamic 3000 Series Female Crimp Terminal is engineered for industrial and electronic applications requiring robust, high current connections. This female crimp terminal is compatible with the Dynamic 3000 connector housing, supporting wire sizes from 20 AWG (0.5 mm²) minimum to 16 AWG (1.25 mm²) maximum, and can safely conduct currents up to 15 amperes.

Constructed from copper alloy and plated with bright tin, the contact delivers excellent conductivity and corrosion resistance, ensuring long-term reliability in various operating environments. The terminal length is 17.8 mm, facilitating compact yet secure connections on printed circuit boards and wire harnesses.

The design features a twist-resistant box style receptacle with triple point contact to increase electrical reliability and reduce contact resistance. Upon insertion, an audible click via the housing lance confirms the terminal is securely locked in place, minimizing assembly errors. The terminal supports easy removal with the appropriate tooling, optimizing serviceability and reducing downtime.

These terminals are available in versions with standard pressure for frequent insertions and withdrawals, as well as high pressure options designed to withstand high vibration environments, adding versatility for industrial machinery and complex signal and power transmission applications.

Operating over a wide temperature range from -55°C to 105°C, this product is suitable for harsh industrial conditions including manufacturing, automotive, machinery control systems, and other commercial electronic equipment.

Conducts high current up to 15A for reliable industrial applications. Constructed from copper alloy with bright tin plating for durability. Compatible with Dynamic 3000 series connector housings. Features a twist-resistant box style with 3-point contact for enhanced electrical reliability.

Secure insertion confirmed by audible click due to housing lance locking. Standard crimp termination suitable for female contacts. Operating temperature range from -55°C to 105°C for diverse environments. Compact length of 17.8 mm allows for efficient PCB wiring.

Available in standard and high pressure versions for varying vibration conditions. Easy removal with proper tooling for maintenance and replacement.

This crimp terminal is essential for engineers and technicians working in industrial machinery, electronic manufacturing, and power distribution sectors seeking reliable and maintainable connector solutions. Environmentally compliant, it conforms to industry standards, ensuring safety and performance.
