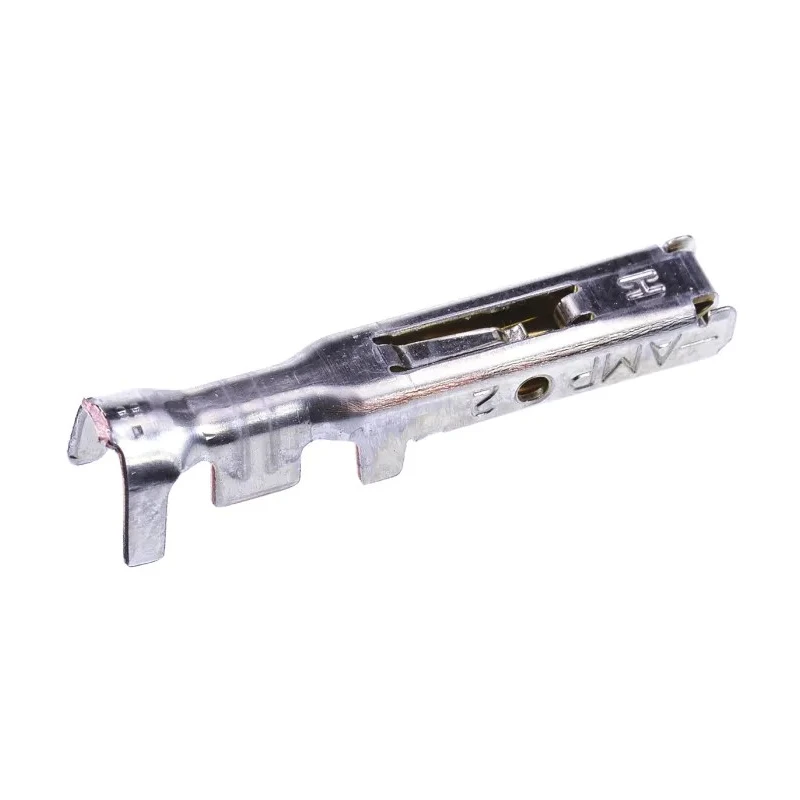

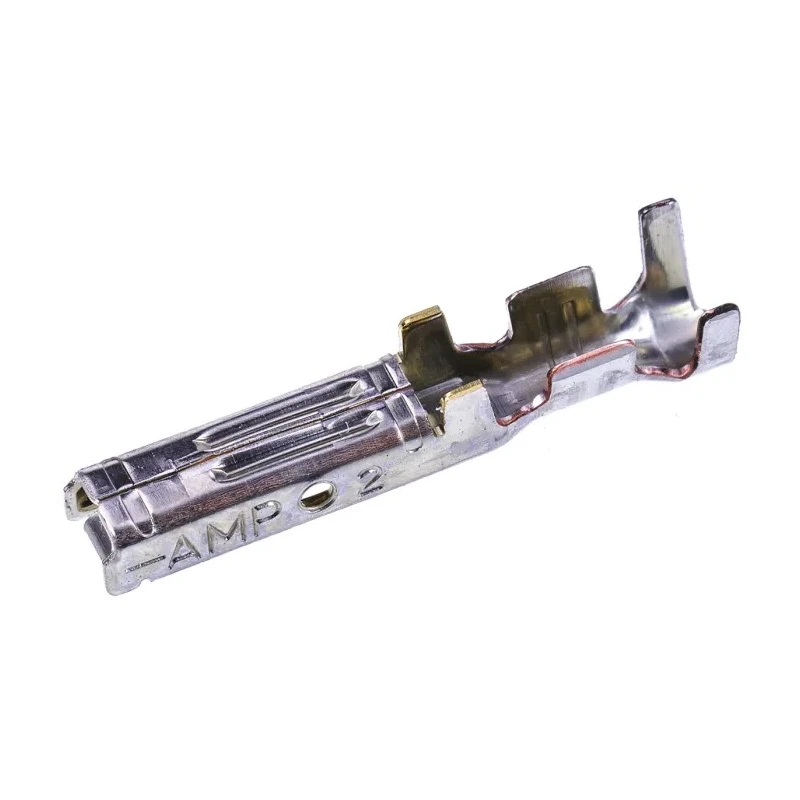

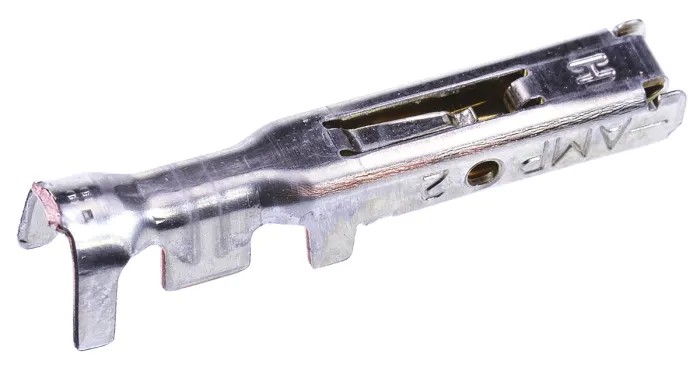

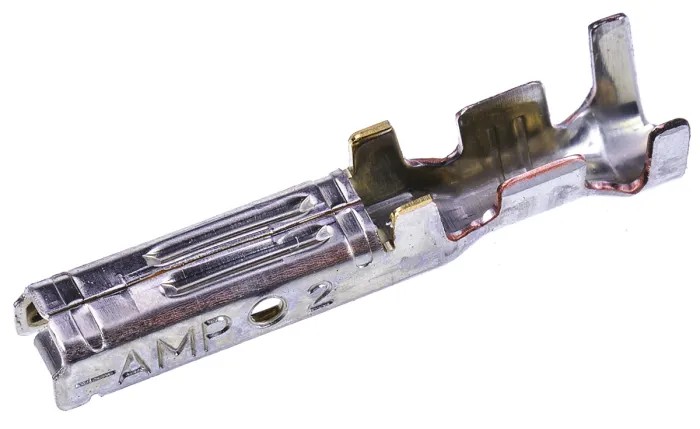

TE Connectivity Dynamic 3000 Series Female Crimp Terminal 20 AWG Min Crimp 16 AWG Max 1-175196-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 17.8mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Supports current up to 15 amps ensuring reliable power connections.
- Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance.
- Designed with a twist resistant box type receptacle and 3 point contact for electrical reliability.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Crimp termination type allows secure wire connections.
- Contact length measures 17.8 millimeters for precise fitment.
- Available in standard and high pressure versions to suit various application requirements.
- Ideal for combined signal and power applications in industrial machinery.
Product Description
TE Connectivity 1-175196-2 female Crimp Terminal from the Dynamic 3000 series is engineered for high current electronic applications, offering robust reliability for signals and power transmission.
This crimp contact fits Dynamic 3000 connector housings and supports a wide wire gauge range from 20 AWG (minimum) to 16 AWG (maximum). It is capable of handling a continuous current of 15 amps, suitable for industrial machinery and demanding electrical environments.
Constructed of high-quality copper alloy with gold plating, the contact ensures excellent conductivity and corrosion resistance. The design incorporates a twist resistant box style receptacle with three points of contact for increased electrical reliability and secure connection.
Termination is via crimping, enabling firm wire fixation, and the contacts are available with either standard or high contact pressure options to accommodate different application needs, including high vibration environments.
The contact operates reliably within a temperature range from -55°C to 105°C, meeting the requirements for harsh industrial conditions. The contact length is precisely 17.8 mm, ensuring correct fit and locking within compatible Dynamic 3000 series housings.
Supports current up to 15 amps ensuring reliable power connections. Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance. Designed with a twist resistant box type receptacle and 3 point contact for electrical reliability.
Operates in a temperature range from -55°C to 105°C for industrial use. Available in standard and high pressure versions for different application needs. Crimp termination type provides secure wire connections. Fits Dynamic 3000 connector housings with secure locking mechanism.
Suitable for combined signal and power applications in industrial machinery. Manufactured in China under quality standards.
This contact is an essential component for industrial, manufacturing, and electrical applications requiring robust and reliable electrical connections. Browse the Electronics Components category on EnvMart for compatible connectors and accessories from TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum continuous current of 15 amps, making it suitable for reliable power connections in various applications.
It operates reliably within a temperature range of -55°C to 105°C, suitable for harsh industrial environments.
This terminal accommodates wire sizes from 20 AWG (minimum) to 16 AWG (maximum), allowing for versatile connections.
The crimp terminal is made from a copper alloy and features gold plating, which enhances conductivity and provides corrosion resistance.
The contact length measures 17.8 millimeters, ensuring a precise fit within compatible connector housings.
It uses a crimp termination type, which allows for secure and firm wire connections.
Yes, it is designed for use with Dynamic 3000 connector housings, ensuring a secure locking mechanism.
This model is available in standard and high pressure versions to suit different application requirements, including those in high vibration environments.
The terminal is female, designed to fit into corresponding male connectors.
It is manufactured in China under quality standards.
It is ideal for combined signal and power applications in industrial machinery, providing robust electrical connections.
The design incorporates a twist resistant box type receptacle with three points of contact for increased electrical reliability.
