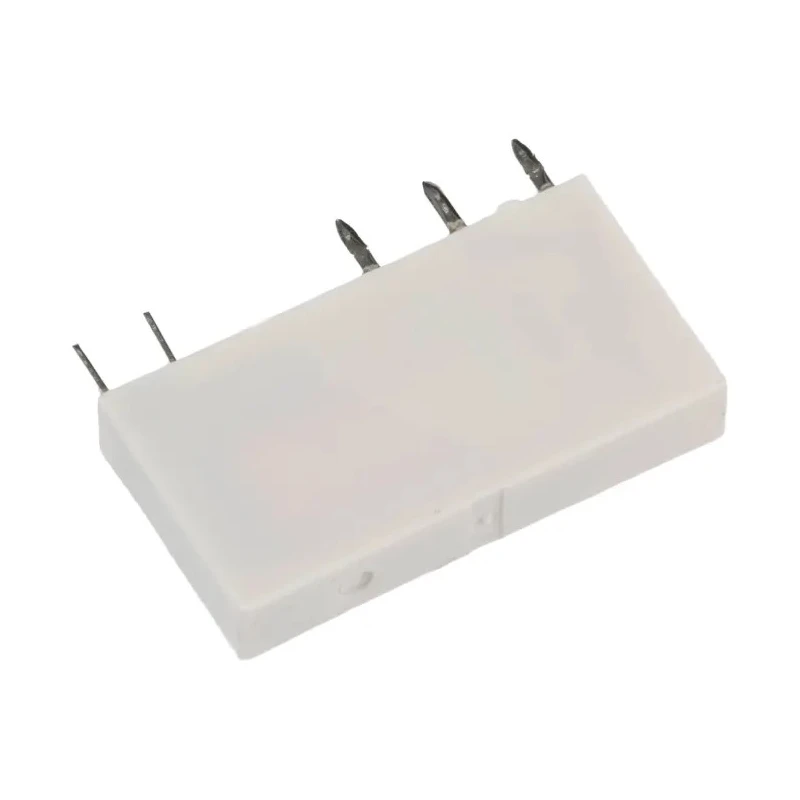

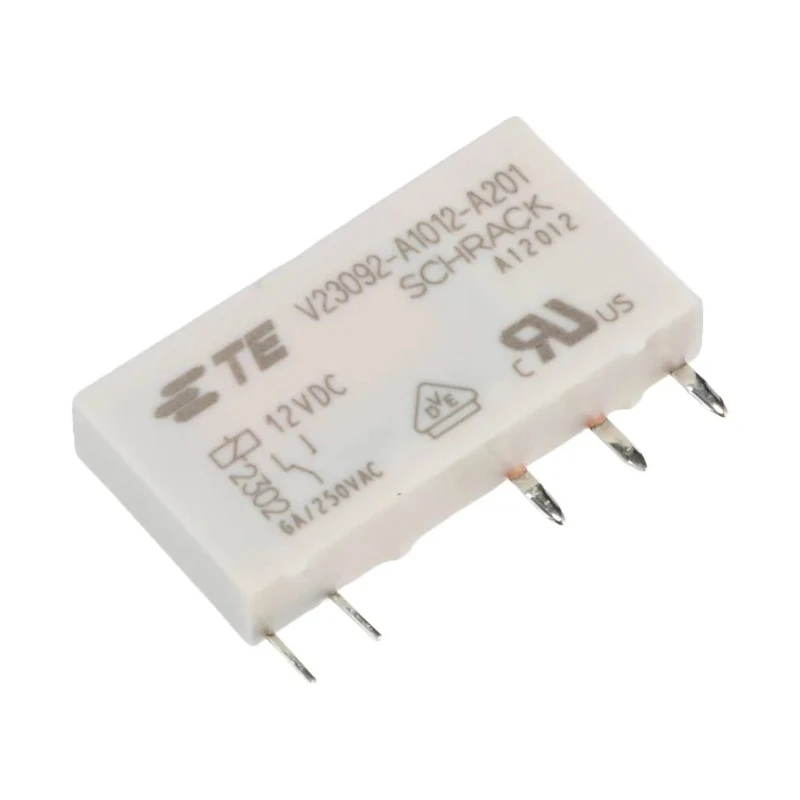

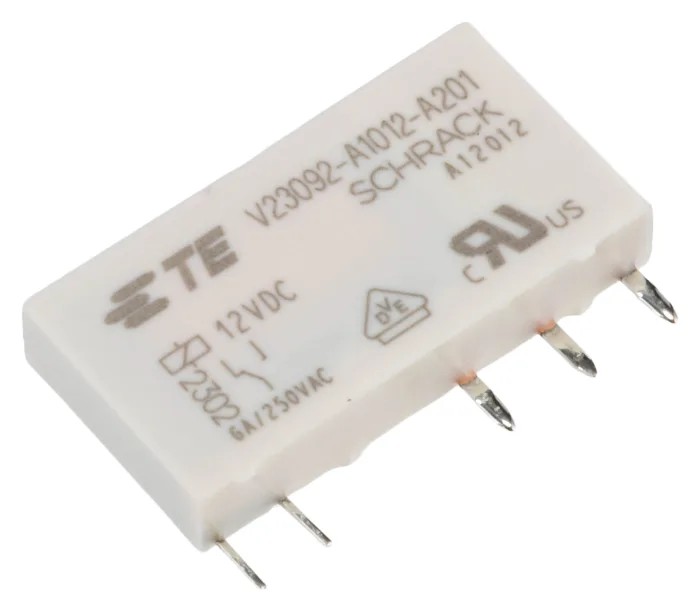

TE Connectivity PCB Power Relay 12V DC Coil 6A Switching Current SPDT V23092-A1012-A201

TE Connectivity V23092-A1012-A201 is a high-performance PCB power relay designed for industrial and electronic automation applications. It features a 12V DC coil with a coil power consumption of just 170 mW, providing efficient operation with high coil sensitivity. This relay has a Single Pole Double Throw (SPDT) contact configuration, supporting switching currents up to 6A and switching AC voltages up to 400V.

The compact slim design, measuring 28mm in length, 15mm in height, and 5mm in width, facilitates dense PCB mounting in compact electronic assemblies. The relay provides excellent isolation with 4000 Vac between the coil and contacts, ensuring operational safety and noise immunity.

Gold-plated contacts guarantee reliable electrical conduction and resistance to corrosion, essential for longevity in demanding industrial environments. It operates reliably within an ambient temperature range from -40°C up to +85°C, making it suitable for a wide range of industrial, laboratory, and manufacturing conditions.

This relay complies with major safety and quality standards such as UL 508, CSA, VDE certification (No. 40010063), EN60730-1, and IEC 61810, attesting to its quality and reliability.

Mounted via solder terminals on printed circuit boards, the relay is ideal for use in power control circuits, automation systems, HVAC controls, signal conditioning, and instrumentation applications. Its high switching power capability of 1.5 kVA supports robust load switching requirements.

High coil sensitivity at 170 mW enhances energy efficiency. Compact slim design with 5mm thickness suited for dense PCB mounting. Operates reliably in a temperature range of -40°C to +85°C. Gold-plated contacts ensure excellent conductivity and corrosion resistance.

Isolation voltage of 4000 Vac between coil and contacts improves safety. Suitable for switching AC voltages up to 400V and power up to 1.5 kVA. Constructed with solder type terminals for stable PCB mounting. Complies with multiple international standards including UL 508, VDE, and IEC 61810.

This TE Connectivity PCB Power Relay is a reliable component for industrial and electronic automation systems, ensuring efficient, safe, and durable relay switching performance. Explore the Electronics & Electricals category on EnvMart for more Power Relays and automation components.
