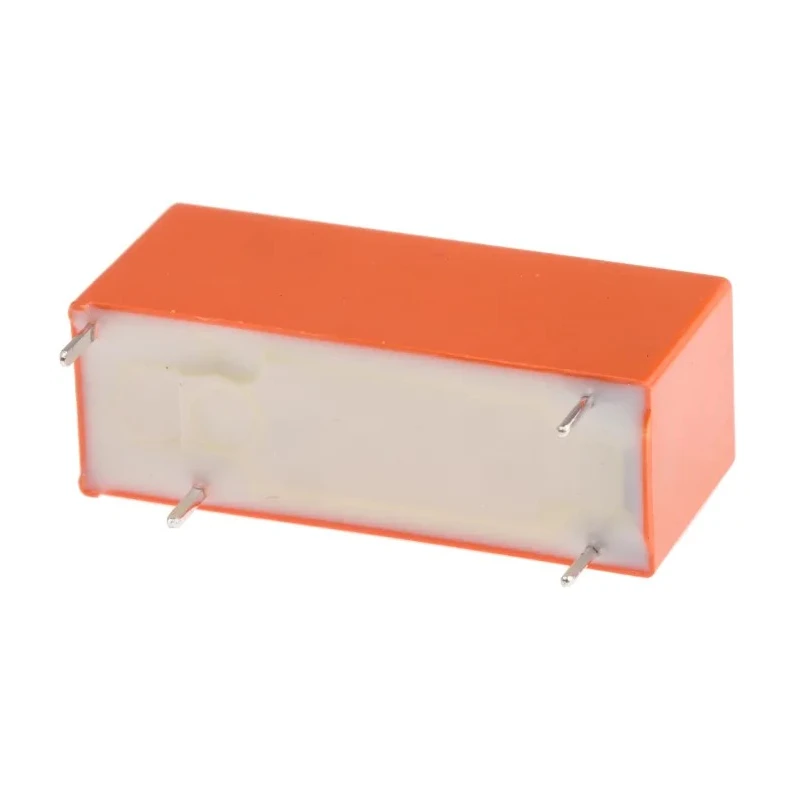

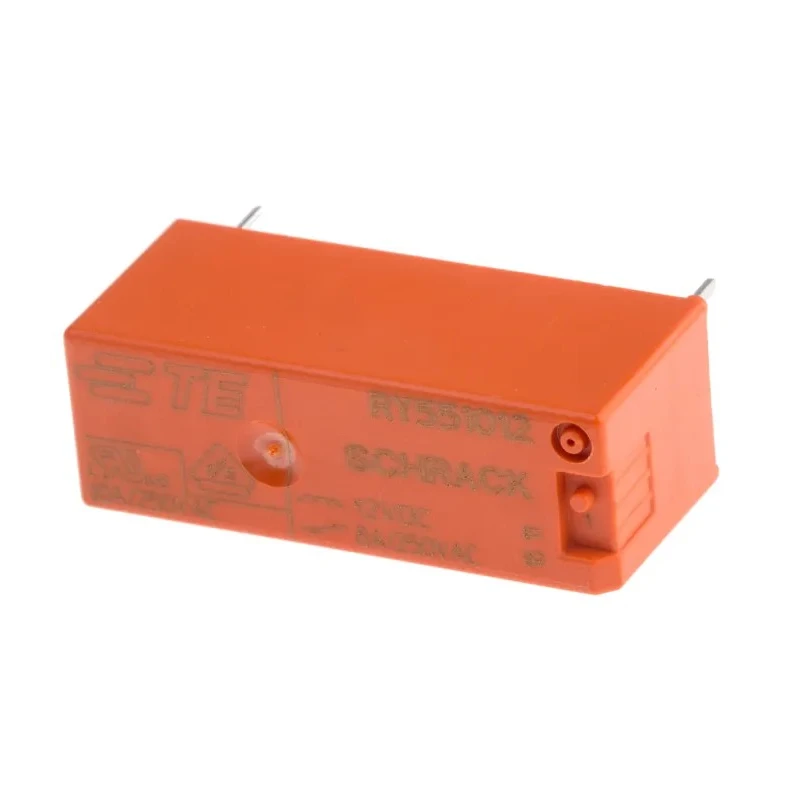

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current 1 NC RY551012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY551012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NC |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 36Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Operates with a 12V DC coil voltage providing reliable control.
- Supports switching current of up to 8 amperes for medium power applications.
- Features a 1 Normally Closed (NC) contact configuration.
- Coil resistance of 36 ohms and coil power consumption of 250 milliwatts.
- Suitable for operating temperatures from -40°C to 70°C.
- Contact material made of silver alloy ensuring excellent conductivity.
- Series RY II with 5mm pinning for easy PCB solder mounting.
- Switching AC voltage rating up to 400V AC with a switching power of 2 kVA.
Product Description
TE Connectivity RY551012 PCB Power Relay is a precise electrical relay engineered for PCB mounting applications requiring reliable switching of loads. This power relay features a 12V DC coil that provides consistent actuation with a coil resistance of 36Ω and low coil power of 250mW, offering energy efficiency in control circuits.
The relay supports an 8A switching current with 1 Normally Closed (NC) contact configuration, making it suitable for medium power switching tasks. Its silver alloy contacts ensure long-lasting electrical conductivity and durability under switching loads.
With compact dimensions of 28.5mm length, 12.3mm height, and 10.1mm width, this relay fits into space-constrained PCB designs. The device is rated for switching AC voltage up to 400V and switching power of 2 kVA, providing flexibility across a variety of electrical and electronic applications.
Operating temperature ranges from -40°C to +70°C, making it durable in varying environmental conditions. The relay is compliant with IEC 60335-1, RoHS, and VDE standards, guaranteeing quality and safety in professional industrial and automation applications.
The RY II series relay has 5mm pin pitch configuration, facilitating solder mounting on printed circuit boards. The creepage and clearance distance is 8mm, ensuring electrical safety and isolation standards.
Operates at 12V DC coil voltage with 36Ω coil resistance. Switching current capacity of 8A with silver alloy contacts. Compact size ideal for dense PCB assemblies. Complies with IEC, RoHS, and VDE certifications. Wide operating temperature range from -40°C to +70°C.
Supports switching power up to 2 kVA at 400V AC. 5mm pinning for easy PCB solder mounting. Creepage and clearance of 8mm for safety.
This TE Connectivity PCB Power Relay is suitable for applications in electrical automation, control systems, industrial machinery, instrumentation, and HVAC systems requiring controlled switching of electrical loads with high reliability.
Explore the full range of Power Relays and related components in the Electronics & Electricals category at EnvMart for optimal integration into your projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 8 amperes.
This power relay features a 1 Normally Closed (NC) contact configuration.
The relay has dimensions of 28.5mm in length, 12.3mm in height, and 10.1mm in width.
The coil resistance is 36 ohms.
It operates within a temperature range of -40°C to +70°C.
This model is designed for PCB mounting with a terminal type of solder.
It complies with IEC 60335-1, RoHS, and VDE standards.
The relay can switch AC voltage up to 400V.
The coil power consumption is 250 milliwatts.
The creepage and clearance distance is 8mm.
The relay is manufactured in the Czech Republic.
