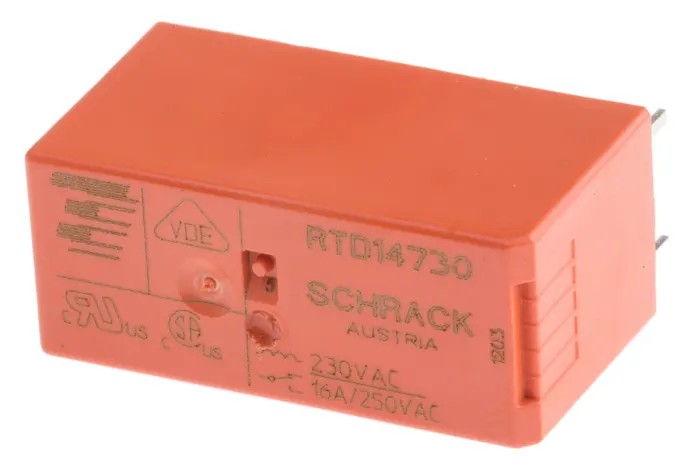

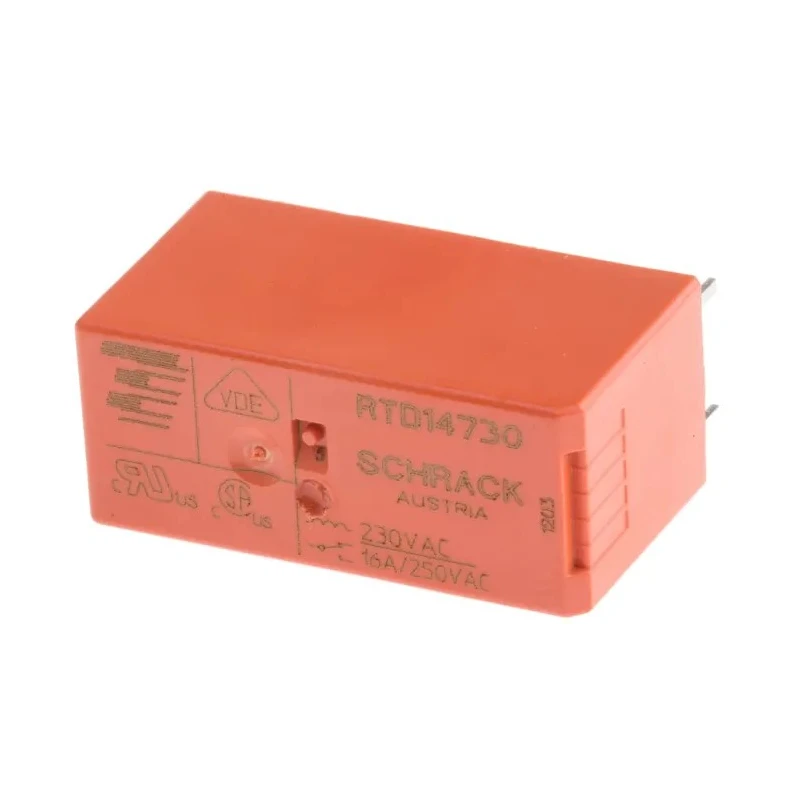

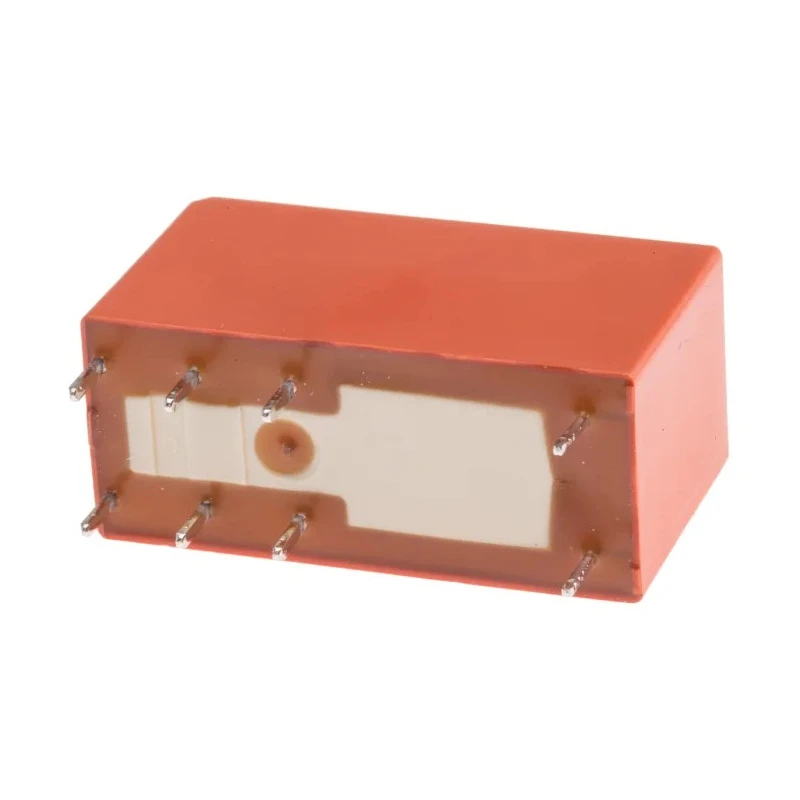

TE Connectivity PCB Power Relay 230V AC Coil 16A Switching Current SPDT RTD14730

TE Connectivity RTD14730 PCB Power Relay is designed for reliable control in electrical and automation systems, featuring a 230V AC coil voltage and 16A switching current. The Single Pole Double Throw (SPDT) contact configuration facilitates versatile circuit design and switching functionality for industrial and domestic applications.

This power relay has a compact form factor with dimensions of 29 mm length, 12.7 mm width, and 15.7 mm height, optimized for PCB mounting with solder terminals. It operates efficiently with a coil resistance of 32.5 kΩ and coil power of 250 mW, ensuring low power consumption during switching cycles.

The relay is rated for switching AC voltages up to 400V and can operate reliably within a temperature range of -40°C to 70°C, making it suitable for demanding environments including automation, domestic appliances, security lighting, and heating systems.

Constructed with silver nickel alloy contact material, it provides superior electrical conductivity and longevity. The product meets international standards including VDE, RoHS, and IEC 60335-1, assuring safety and compliance for industrial and commercial applications.

TE Connectivity’s RT series relays are known for their durability and performance in interface and automation contexts, offering options with various pinning and insulation configurations. This model, RTD14730, features 5mm pinning and is designed to be wash tight, enhancing reliability in environments requiring resistance to contamination.

Equipped with a 230V AC coil enabling high voltage control. Switching current capacity of 16A supports moderate power loads. SPDT contact configuration provides flexible switching options. Designed for PCB mounting with solder terminal type.

Compact dimensions: Length 29 mm, Width 12.7 mm, Height 15.7 mm. Coil resistance is 32.5 kΩ, ensuring consistent operation. Operating temperature range from -40°C to 70°C for versatile environment use. Compliant with VDE, RoHS, and IEC 60335-1 standards.

Contact material comprised of silver nickel alloy for reliable conductivity.

Ideal for industrial control, automation systems, HVAC equipment, manufacturing machinery, and residential electrical applications. Explore additional TE Connectivity products and Power Relays at EnvMart for your engineering and automation needs.
