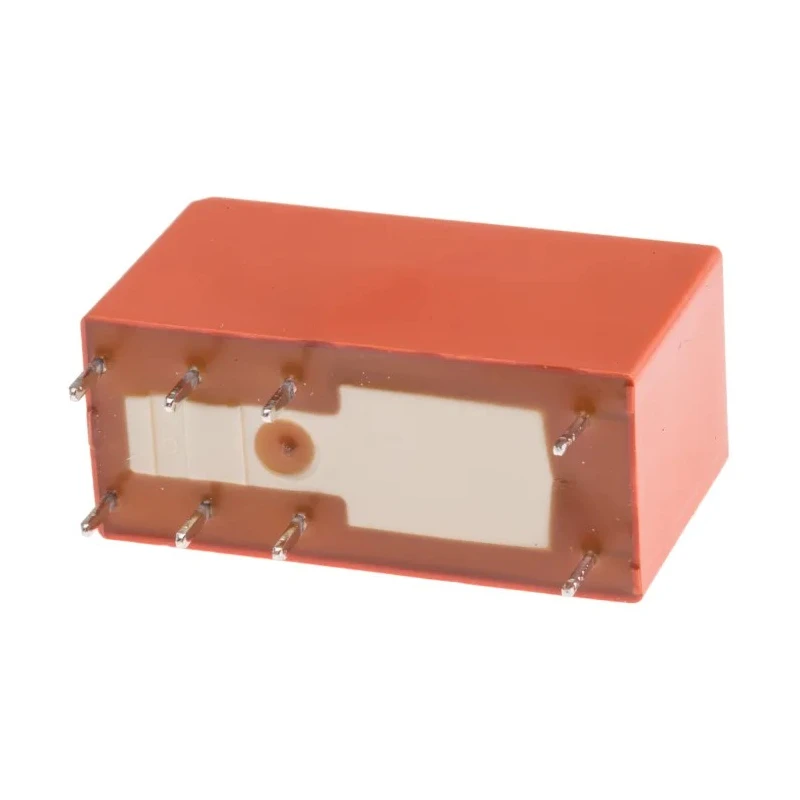

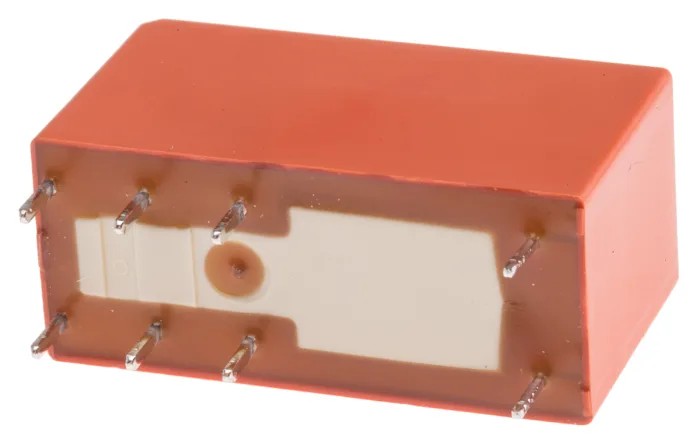

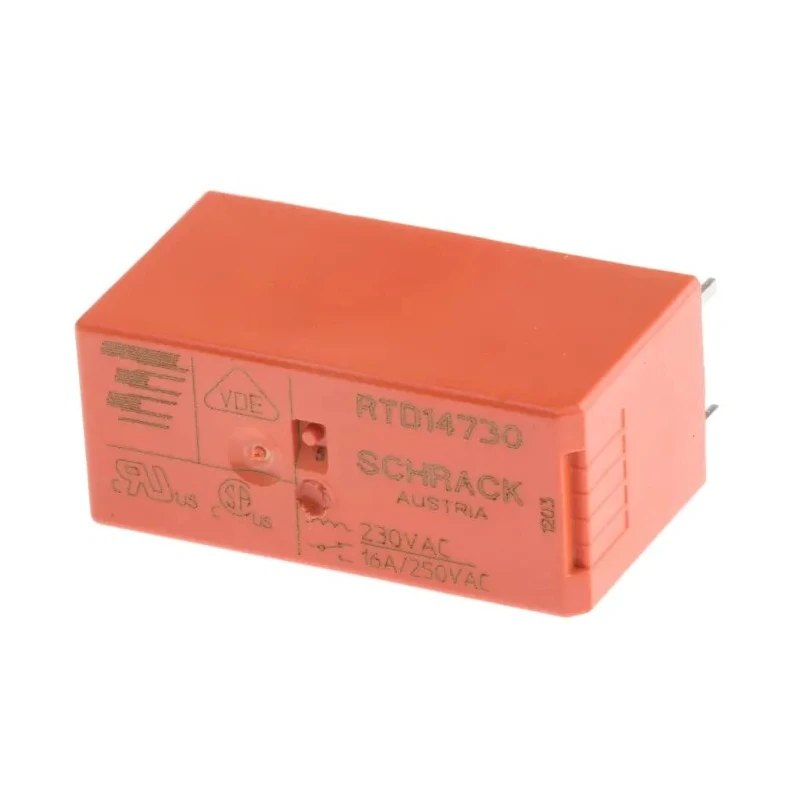

TE Connectivity PCB Power Relay 230V AC Coil 16A Switching Current SPDT RTD14730
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD14730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Utilizes a silver nickel alloy contact material for reliable conductivity.
- Features solder terminal type suitable for through-hole PCB mounting.
- Operates within a temperature range from -40°C to 70°C.
- Switching AC voltage rating up to 400V AC for robust performance.
- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm.
- Coil resistance is 32.5kΩ with a coil power of 250mW.
- Complies with VDE, RoHS, and IEC 60335-1 standards ensuring safety and quality.
- Series RT1 with 5mm pinning and wash tight design for durability and flux proofing.
Product Description
TE Connectivity RTD14730 PCB Power Relay is a high-quality power relay designed for industrial and automation applications requiring reliable switching performance. It features a 230V AC coil voltage and is configured as a single-pole double-throw (SPDT) contact type, making it suitable for various interface, domestic, security lighting, and heating system applications.
This relay's contact material consists of silver nickel alloy, providing excellent electrical conductivity and durability. The relay supports a switching current of 16A and an AC voltage of up to 400V, ensuring robust handling of power loads.
Designed for PCB mounting with solder terminals, the RTD14730 relay is part of the RT1 series characterized by a 5mm pinning and wash tight construction, enhancing the unit's resistance to flux and environmental exposure. The coil resistance of 32.5kΩ and coil power of 250mW enable energy-efficient operation.
Operating temperature ranges from -40°C to 70°C, allowing reliable performance under varied environmental conditions. Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height save PCB space without compromising functionality.
230V AC coil voltage for standard industrial applications. 16A switching current provides versatile power handling. SPDT configuration for flexible switching options. Solder terminal type designed for secure PCB installation.
Silver nickel alloy contact material ensures longevity and conductivity. Wide operating temperature range of -40°C to 70°C. Complies with VDE, RoHS, and IEC 60335-1 safety standards. Compact form factor suitable for space-constrained designs.
This TE Connectivity power relay is ideal for use in industrial automation, manufacturing control systems, HVAC equipment, and other applications requiring dependable relay switching for power circuits.
Explore more Power Relays and electronic components at EnvMart to find solutions that meet your precise industrial and technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 16A, making it suitable for handling various power loads.
The coil voltage for this relay is 230V AC, designed for standard industrial applications.
It can switch AC voltage up to 400V AC, ensuring robust performance in power handling.
The compact dimensions of this unit are 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay is designed for PCB mounting and features solder terminals for secure installation.
It operates within a temperature range from -40°C to 70°C, allowing reliable performance in various environments.
The coil resistance of this relay is 32.5kΩ, contributing to its energy-efficient operation.
The contact material consists of silver nickel alloy, providing excellent electrical conductivity and durability.
It complies with VDE, RoHS, and IEC 60335-1 standards, ensuring safety and quality in its design.
This model features a single-pole double-throw (SPDT) contact configuration for flexible switching options.
The coil power rating for this relay is 250mW, allowing for efficient operation.
This power relay is suitable for industrial automation, manufacturing control systems, HVAC equipment, and other applications requiring dependable relay switching.
