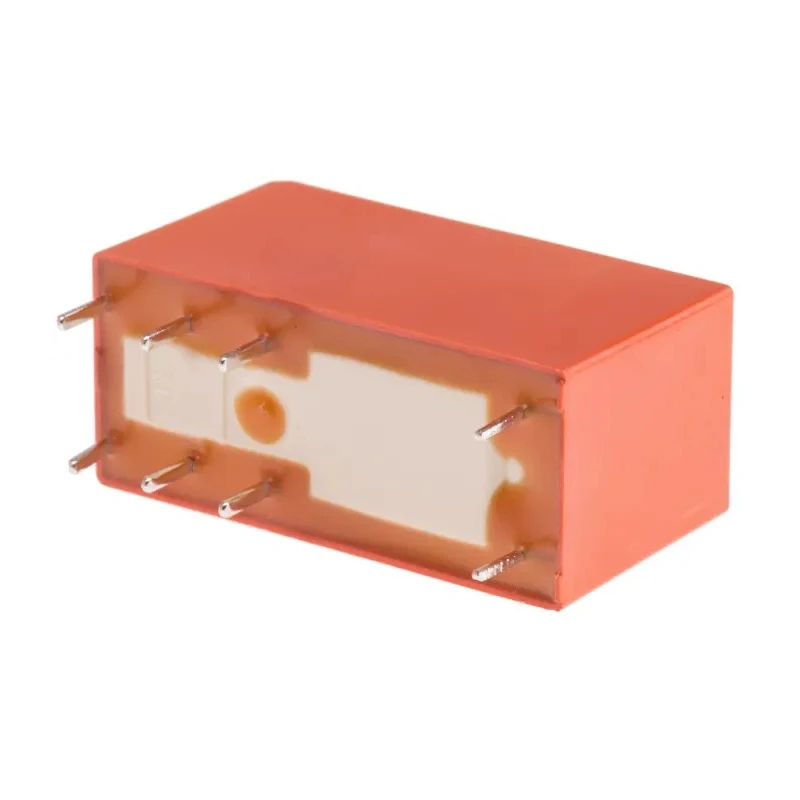

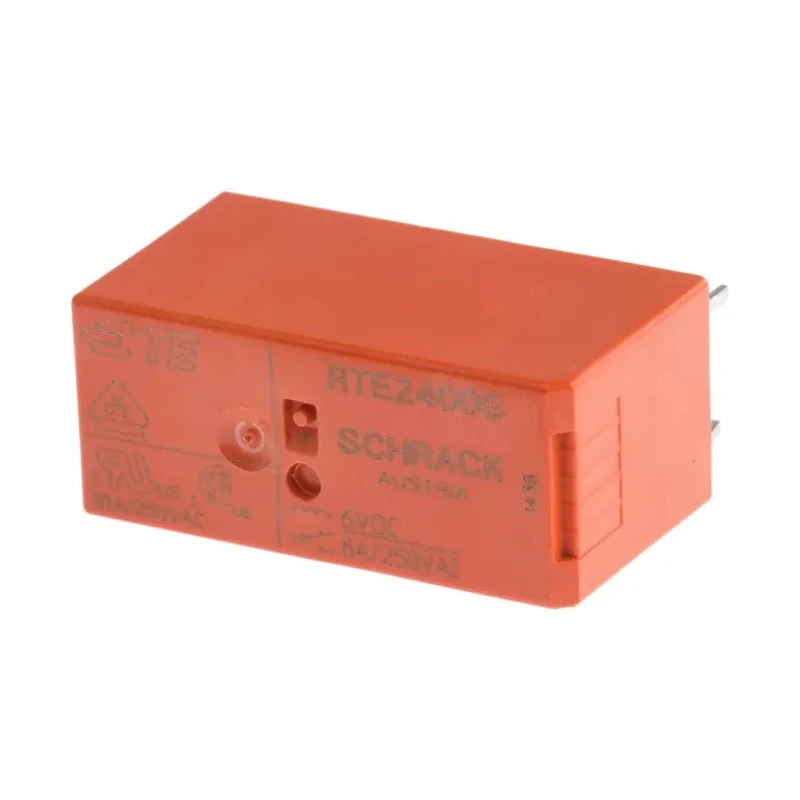

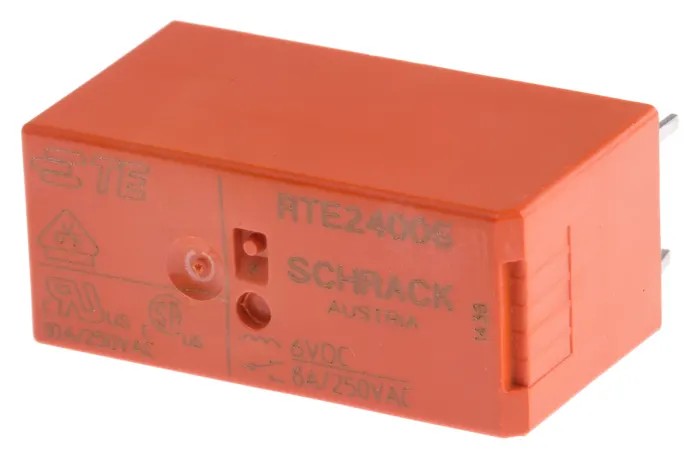

TE Connectivity PCB Power Relay 6V DC Coil 8A Switching Current DPDT RTE24006

TE Connectivity RTE24006 is a high-quality PCB power relay designed for industrial and automation applications. It features a 6V DC coil voltage and an 8A switching current suitable for controlling high power electrical circuits efficiently. This DPDT (Double Pole Double Throw) relay provides versatile switching capabilities for complex circuit requirements.

Constructed with silver nickel alloy contacts, the relay ensures excellent conductivity, minimizing losses and increasing operational life. The coil resistance of 90Ω and coil power consumption of just 250mW makes it energy efficient.

The relay supports a maximum switching AC voltage of 400V and operates reliably within a temperature range from -40°C to 85°C, making it suitable for diverse industrial environments including automation systems, domestic appliances, security lighting, and heating systems.

This model is part of the RT2 series which comes with 5mm flux proof pinning designed specifically for PCB mounting using solder terminals. Its compact dimensions (29mm length, 12.7mm width, 15.7mm height) allow easy integration into space-constrained circuit boards.

TE Connectivity RTE24006 complies with IEC 60335-1, RoHS, and VDE standards, ensuring quality, safety, and environmental compliance. Manufactured in Austria, this relay is ideal for improving production efficiency in industrial automation and electrical applications.

This power relay supports up to 400V AC switching voltage completing robust power management. The DPDT design allows double pole double throw switch configuration for versatile circuit control. Coil resistance is rated at 90 ohms with low coil power consumption of 250mW.

The relay operates within a temperature range from -40°C to 85°C ensuring durability in harsh conditions. Constructed with silver nickel alloy contacts for enhanced conductivity and longevity. Designed for PCB mounting with solder terminals and flux proof pinning for secure installation.

Dimensions measure 29mm length, 12.7mm width, and 15.7mm height for compact integration. Compliance with IEC 60335-1, RoHS, and VDE standards guarantees product safety and quality. Explore the TE Connectivity range on EnvMart for advanced solutions in Power Relays and industrial electrical controls.
