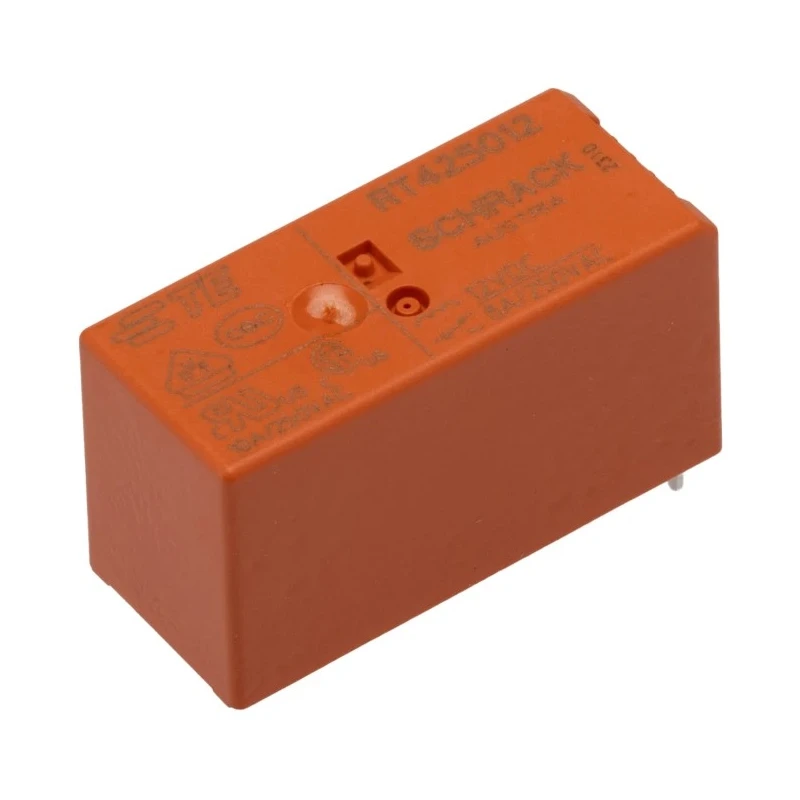

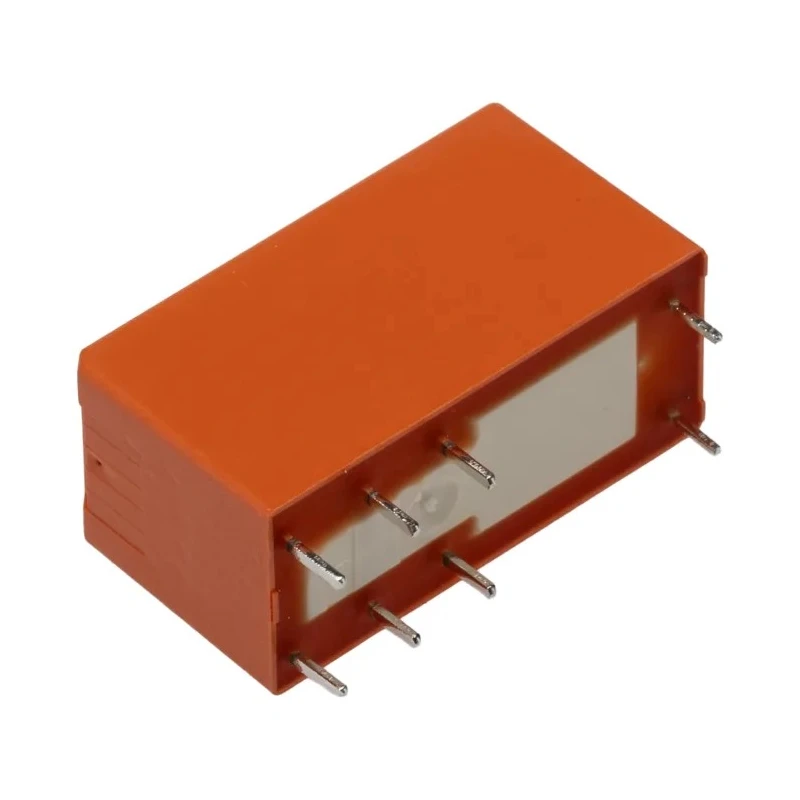

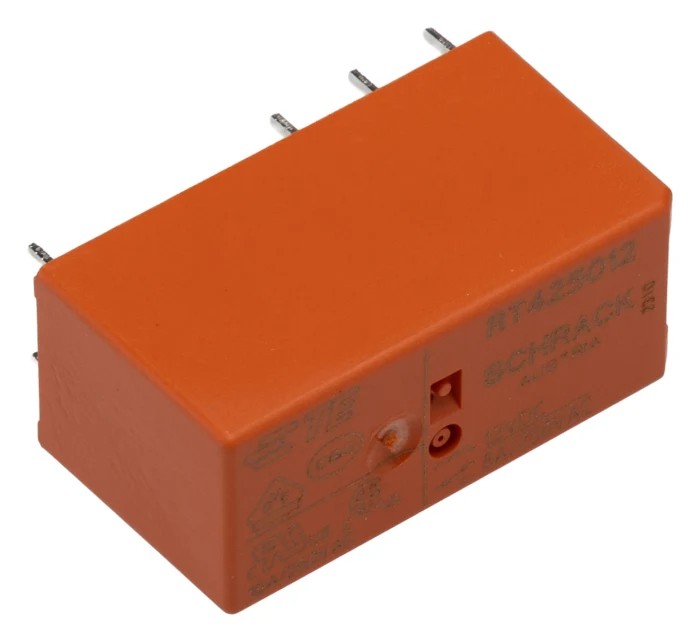

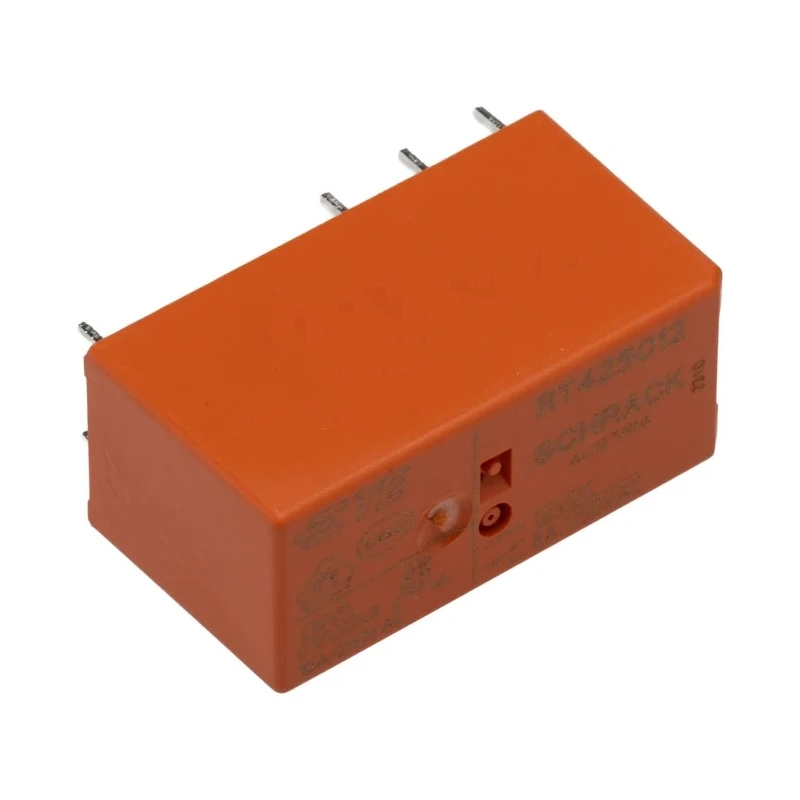

TE Connectivity PCB Power Relay 12V dc Coil 8A Switching Current DPDT RT425012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT425012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mount with solder terminal type ensuring reliable electrical connection.
- Operates efficiently within temperature range from -40°C to 85°C.
- Coil resistance of 360 ohms and coil power of 250 milliwatts for low power consumption.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for space-saving design.
- Gold plated contact material ensures improved conductivity and durability.
- Switching AC voltage rated up to 400V AC for versatile applications.
- Complies with IEC 60335-1, RoHS and VDE standards for safety and environmental compliance.
- Suitable for automation, interface, security lighting, and heating systems applications.
Product Description
TE Connectivity RT425012 PCB Power Relay with a 12V dc coil voltage and 8A switching current offers a DPDT (Double Pole Double Throw) contact configuration suitable for PCB mounting applications.
This relay features a solder terminal type to ensure stable electrical connections and flux-proof 5mm pinning providing reliable performance in industrial and automation systems.
Operating temperature ranges from -40°C to 85°C, making it suitable for diverse environmental conditions. The coil resistance of 360 ohms and coil power consumption of 250 milliwatts contribute to its efficient energy use.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, enabling compact integration into control systems.
Gold plated contacts ensure optimal conductivity and long service life. It supports switching AC voltage up to 400V AC and switching power of 2kVA, accommodating various electrical load requirements.
Designed for through-hole mounting on printed circuit boards. Compliant with IEC 60335-1, RoHS, and VDE standards ensuring safety and environmental regulations. Ideal for applications including automation, domestic controllers, security lighting systems, heating systems, and interface relays.
Manufactured in Austria, ensuring quality manufacturing standards. RT series relays offer multiple pinning styles and are flux or wash tight depending on model variant.
This product is an essential component for industrial automation, electrical interface control, HVAC systems, and other commercial electrical applications requiring reliable switching at moderate currents and voltages.
Explore more high-quality relays and contactors in EnvMart's Electronics & Electricals category to complement your control system setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 8A.
The coil voltage for this model is 12V DC.
It measures 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The maximum switching AC voltage for this relay is 400V AC.
The coil resistance of this relay is 360 ohms.
The coil power consumption is 250 milliwatts.
This relay operates efficiently within a temperature range of -40°C to 85°C.
The contacts are made of gold plated material, which enhances conductivity.
It complies with IEC 60335-1, RoHS, and VDE standards.
This model is designed for PCB mounting with a solder terminal type.
This relay is manufactured in Austria.
