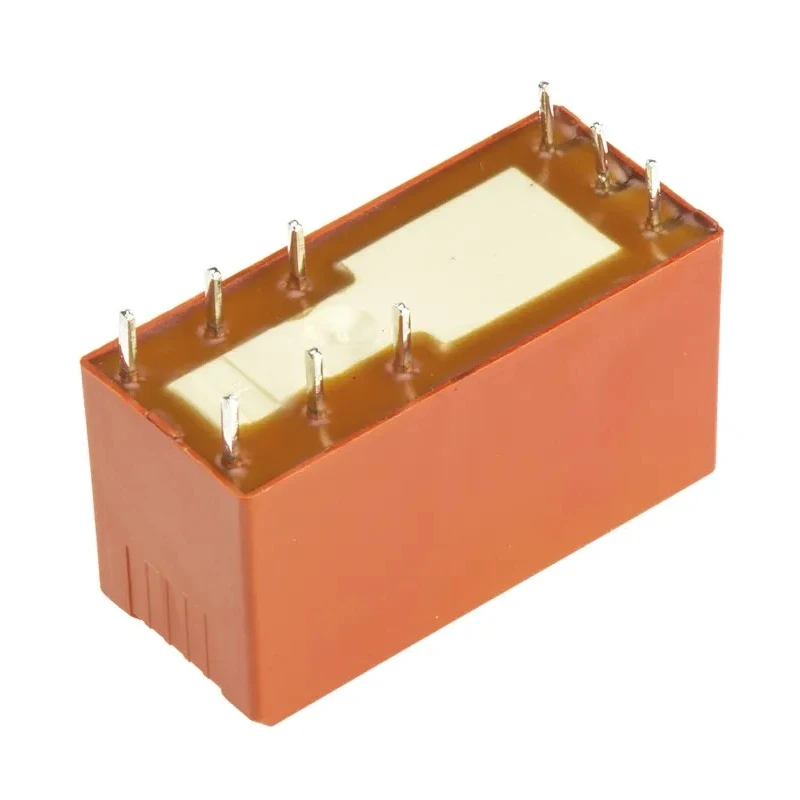

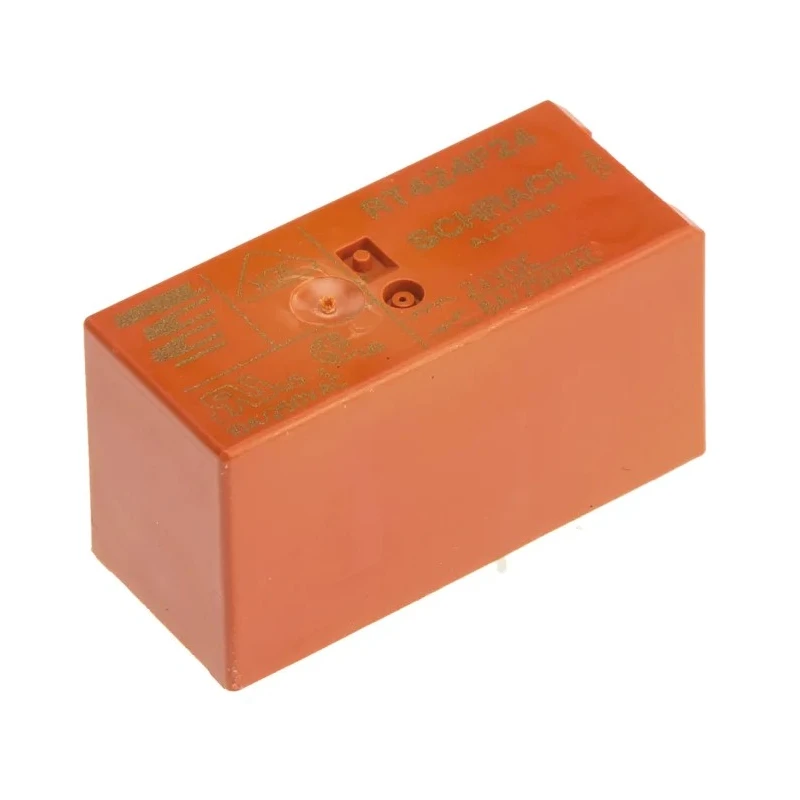

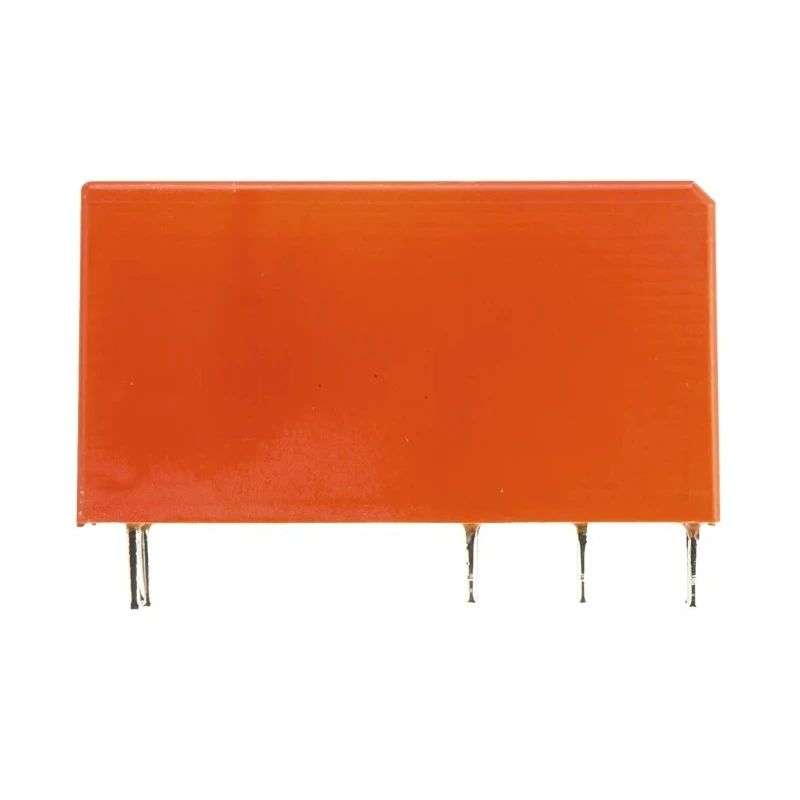

TE Connectivity Power Relay PCB Mount 24V DC Coil 8A Switching Current DPDT RT424F24

TE Connectivity RT424F24 Power Relay is a PCB mount, double pole double throw (DPDT) relay designed for precise electrical switching applications. It operates with a 24V DC coil voltage and supports a switching current of 8A, making it suitable for moderate power control demands in industrial and automation environments.

With a robust coil resistance of 886 ohms and silver alloy contacts, this relay offers excellent reliability and contact performance. It is rated for switching voltages up to 400V AC with a maximum switching power of 2 kVA, ensuring compatibility with a wide range of electrical loads.

The compact design, measuring 29 mm in length, 15.7 mm in height, and 12.7 mm in width, allows seamless integration on printed circuit boards using solder terminals. The product features reinforced insulation and shock resistance up to 100g, enhancing durability under demanding conditions.

The relay operates efficiently within a temperature range from -40°C to 85°C, ensuring stable functioning in varied environmental conditions. It is part of the SCHRACK series, known for bistable/latching relay capabilities, suited for applications requiring a memory function or battery-powered devices.

Manufactured in Austria and compliant with RoHS standards, the TE Connectivity RT424F24 relay is ideal for industrial automation, electrical control systems, power distribution, HVAC control, and other embedded electronic applications requiring reliable switching performance.

Designed for PCB mounting with solder terminal type. Contact configuration is double pole double throw (DPDT) for versatile switching. Operates with a coil voltage of 24V DC and coil resistance of 886 ohms. Switching AC voltage rating up to 400V AC and maximum switching power of 2 kVA.

Wide operational temperature range from -40°C to 85°C for reliable performance. Constructed with silver alloy contacts for durability and performance. Compact dimensions measuring 29 mm length, 15.7 mm height, and 12.7 mm width.

Part of the SCHRACK series offering reinforced insulation and shock resistance. Suitable for industrial, automation, electrical, and PCB-based control applications. Manufactured in Austria meeting RoHS standards. Explore the range of Power Relays and other electrical components available in the Electronics & Electricals category on EnvMart for all your industrial and automation needs.
