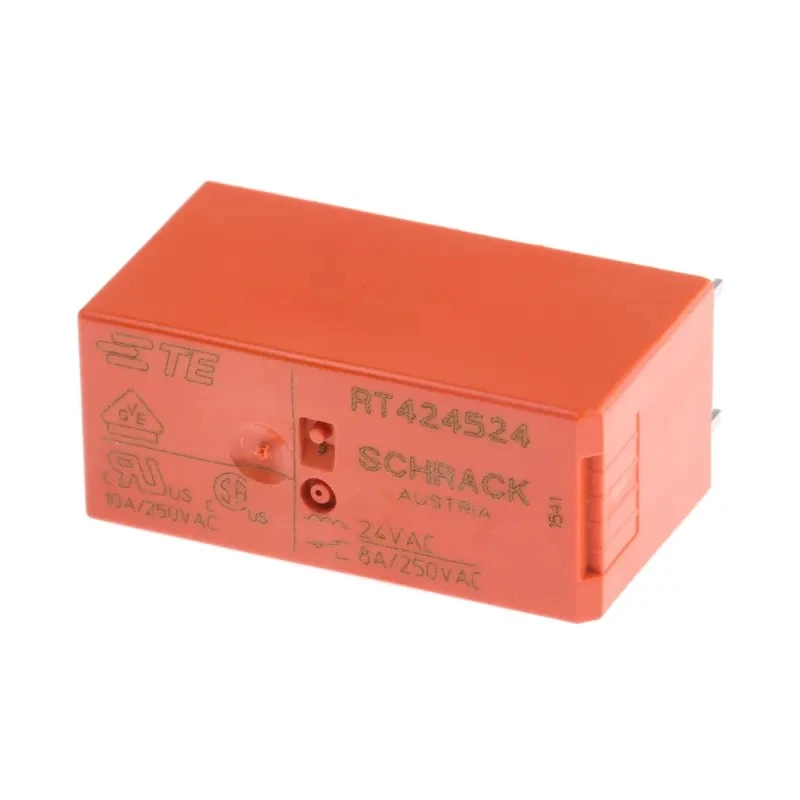

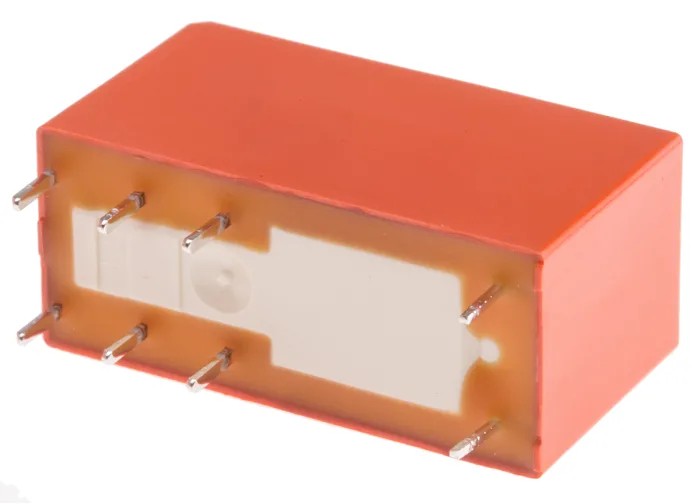

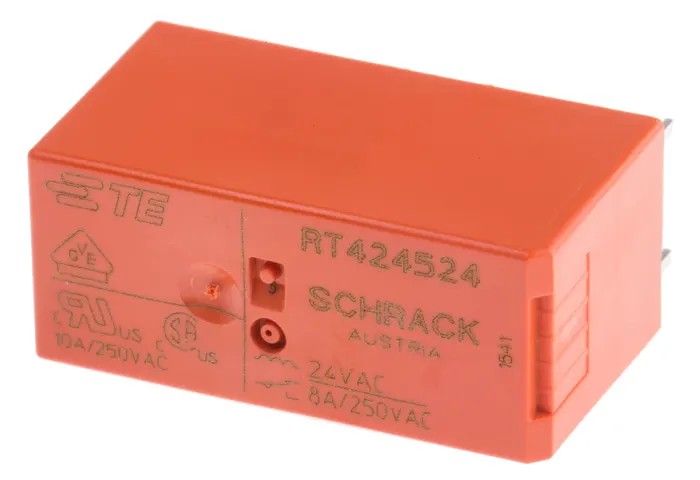

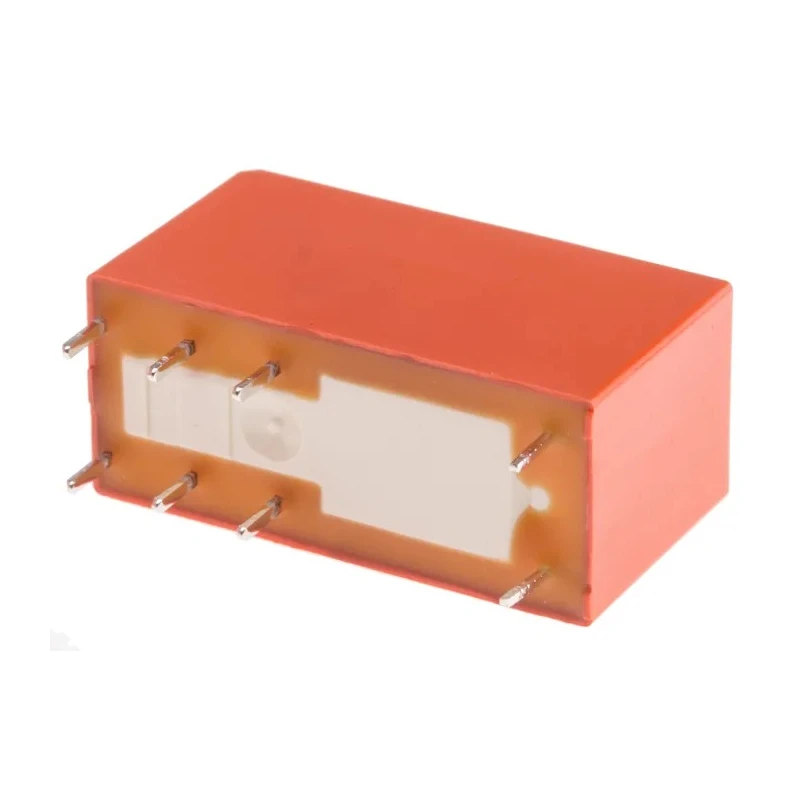

TE Connectivity PCB Power Relay 24V AC Coil 8A Switching Current DPDT RT424524
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424524 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| TE Connectivity PCB Mount Non-Latching Relay, 24V Coil, DPDTBrand | TE Connectivity |
Key Features
- Equipped with a 24V AC coil voltage for efficient switching.
- DPDT (Double Pole Double Throw) contact configuration for versatile applications.
- Supports up to 8A switching current ensuring robust performance.
- Mount type is PCB with solder terminal connections for secure fixing.
- Operates under a wide temperature range from -40°C to 70°C.
- Compact dimensions with 29mm length, 12.7mm width, and 15.7mm height.
- Contact material made of silver nickel alloy for reliable conductivity.
- Complies with IEC 60335-1, RoHS, and VDE standards.
Product Description
TE Connectivity RT424524 PCB Power Relay is a high-quality, non-latching power relay designed for PCB mounting. Featuring a 24V AC coil and DPDT (Double Pole Double Throw) contact configuration, this relay supports a switching current of up to 8 amperes with a maximum switching AC voltage of 400V AC. It is engineered to operate reliably within a temperature range from -40°C to 70°C, making it highly suitable for demanding industrial, domestic, and automation applications.
The relay's contact material consists of silver nickel alloy, ensuring effective electrical conductivity and longevity. With compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, the RT424524 model fits efficiently into various PCB layouts. Coil resistance is specified at 350 ohms with a coil power consumption of 250mW, enabling energy-efficient operation.
Designed in compliance with IEC 60335-1, RoHS, and VDE standards, this relay ensures safety and environmental conformity. Its solder terminal type facilitates secure PCB mounting, while the RT2 series design offers flux-proof pinning with a 5mm pin spacing.
Applications include industrial interface controls, automation systems, security lighting circuits, and heating system controls. The relay is manufactured in Austria, reflecting high European quality standards.
Package Contents: 1 Pc TE Connectivity RT424524 PCB Power Relay. 24V AC coil voltage enables precise control. Double Pole Double Throw (DPDT) contacts for multiple switching options. 8A switching current suitable for various electrical loads.
PCB mount type with solder terminals for easy and stable installation. Operating temperature from -40°C to 70°C for diverse environments. Silver nickel alloy contacts ensure durability and reliable conductivity. Compact size with 29mm length, 12.7mm width, and 15.7mm height.
Compliance with IEC 60335-1, RoHS, and VDE standards. Manufactured in Austria ensuring high product quality. For further selections of power relays, explore the Electronics & Electricals > Relays & Contactors > Power Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V AC.
It supports a maximum switching current of 8A.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates within a temperature range from -40°C to 70°C.
The contact material is made of silver nickel alloy, ensuring reliable conductivity.
This model is designed for PCB mounting with solder terminal connections.
It complies with IEC 60335-1, RoHS, and VDE standards.
The coil resistance is specified at 350 ohms.
The maximum switching AC voltage is 400V AC.
The coil power consumption is 250mW.
The relay is manufactured in Austria.
