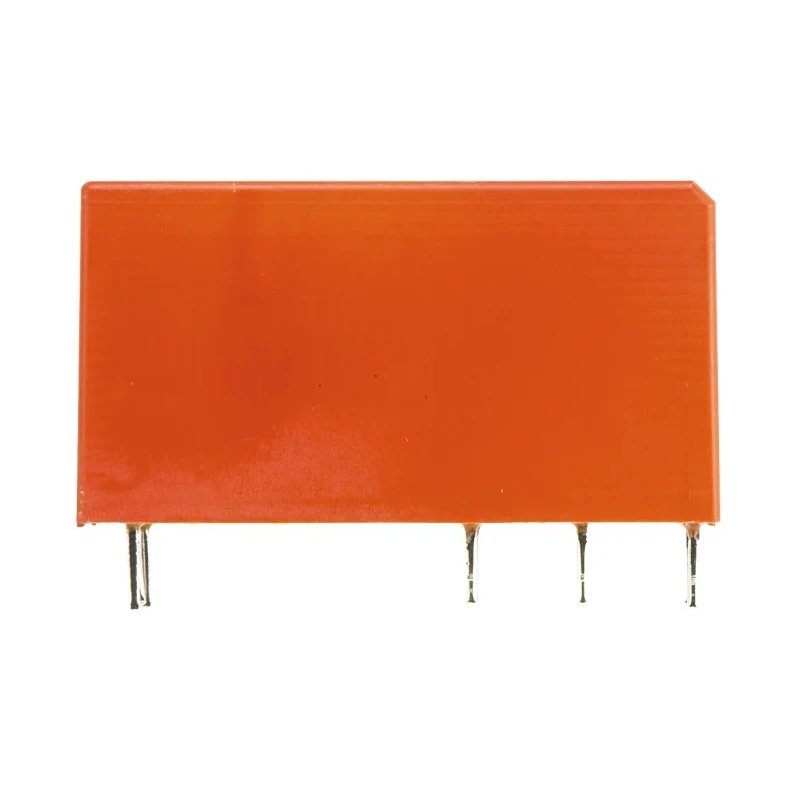

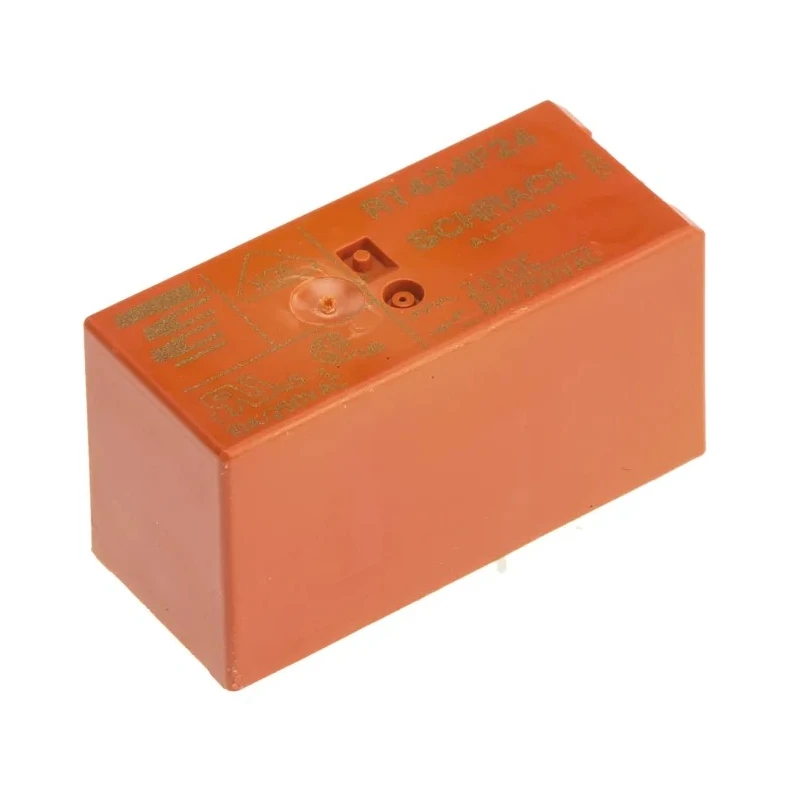

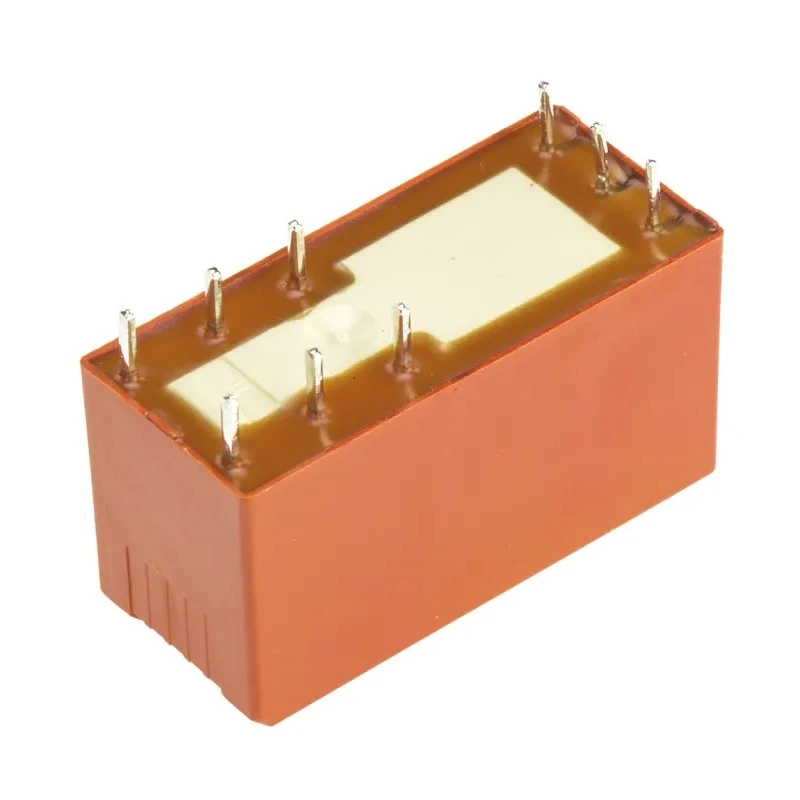

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current DPDT RT424F24
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424F24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 886Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- The relay features a silver alloy contact material ensuring reliable conductivity.
- It supports a coil resistance of 886Ω for stable coil operation.
- The device operates efficiently between -40°C to 85°C operating temperature range.
- The switching AC voltage rating is 400V ac, suitable for varied electrical applications.
- Mount type is PCB with solder terminal type providing easy integration on boards.
- The relay's dimensions are compact with length 29mm, width 12.7mm, and height 15.7mm.
- The RT424F24 belongs to the SCHRACK series and is RoHS compliant.
Product Description
TE Connectivity RT424F24 PCB Power Relay is a high-quality DPDT relay designed for robust electrical switching applications. It features a 24V dc coil and a switching current of 8A, making it suitable for power relay needs on printed circuit boards.
This relay is engineered with silver alloy contacts that provide excellent conductivity and durability under electrical load. The coil resistance of 886Ω ensures reliable operation with minimized coil heating, while the device operates effectively within a temperature range from -40°C to 85°C.
With a switching AC voltage rating of 400V ac and a switching power of 2kVA, it handles substantial electrical loads comfortably. Its PCB mount type with solder terminals facilitates secure and straightforward installation on industrial and commercial electronic equipment.
The compact form factor with dimensions of 29mm length, 12.7mm width, and 15.7mm height suits space-constrained applications. The relay is part of the SCHRACK series and complies with RoHS standards, reflecting its adherence to environmental regulations.
Ideal for industrial, automation, and manufacturing sectors, this relay offers reinforced insulation and high shock resistance, reliable in conditions requiring memory function or battery-powered equipment. Its Austrian origin underlines quality manufacturing standards.
The relay features a silver alloy contact material ensuring reliable conductivity. It supports a coil resistance of 886Ω for stable coil operation. The device operates efficiently between -40°C to 85°C operating temperature range.
The switching AC voltage rating is 400V ac, suitable for varied electrical applications. Mount type is PCB with solder terminal type providing easy integration on boards. The relay's dimensions are compact with length 29mm, width 12.7mm, and height 15.7mm.
The RT424F24 belongs to the SCHRACK series and is RoHS compliant. Explore a comprehensive range of Power Relays and contactors at EnvMart, designed to meet stringent industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 24V dc.
It can handle a maximum switching current of 8A.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
This model operates efficiently within a temperature range of -40°C to 85°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The switching AC voltage rating is 400V ac.
This relay uses a PCB mount type with solder terminals for easy integration.
The relay features silver alloy contacts, ensuring reliable conductivity.
The coil resistance is 886Ω, which supports stable coil operation.
Yes, it is RoHS compliant, reflecting adherence to environmental regulations.
This relay belongs to the SCHRACK series.
The relay is manufactured in Austria.
