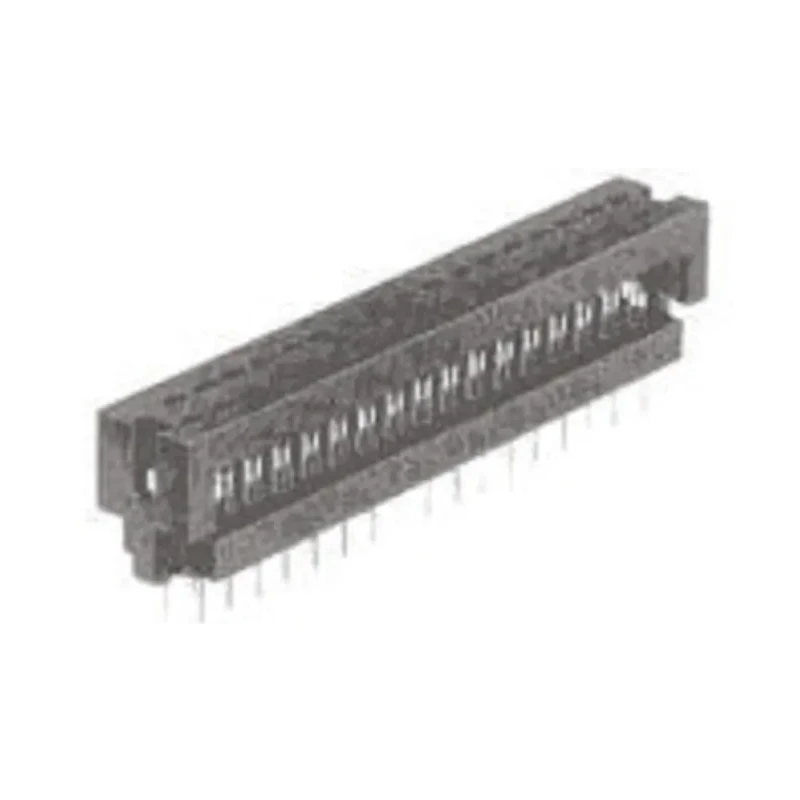

TE Connectivity 20-Way IDC Connector Male for Cable, 2 Row, 1A Current, 250V AC, AMP-LATCH Series 1-746610-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 20-Way IDC Connector Male for Through Hole, 2 RowBrand | TE Connectivity |
Key Features
- Allows direct cable-to-PCB connection without mating connector.
- Features AMP-LATCH locking mechanism for secure mating.
- Gold over nickel contact plating ensures corrosion resistance.
- Shrouded design with right angle orientation enhances connection reliability.
- Suitable for 1A current and 250V AC voltage applications.
- Thermoplastic housing and phosphor bronze contacts for durability.
- Operating temperature range from -65°C to 105°C.
- Ideal for electronics, computers, business, and medical equipment.
Product Description
TE Connectivity 1-746610-5 20-Way IDC Connector Male for Cable, 2 Row is a high-quality AMP-LATCH series IDC connector designed for reliable cable-to-PCB interfaces. This connector supports a current rating of 1A and an operating voltage of 250V AC, making it suitable for a variety of industrial and electronic applications.
The connector features 20 contacts arranged in 2 rows with a 2.54mm pitch, enabling compact and efficient mass termination of ribbon cables. Its shrouded, right-angle male design with gold-over-nickel plated phosphor bronze contacts ensures secure and corrosion-resistant electrical connections. The thermoplastic housing provides durability and insulation.
The AMP-LATCH locking mechanism secures the connection, preventing accidental disconnection during operation. This connector eliminates the need for wire stripping and preparation, streamlining assembly processes and increasing production efficiency.
Operating effectively from -65°C up to 105°C, this 20-way IDC connector is engineered for demanding environments commonly found in industrial electronics, computer hardware, business equipment, and medical devices. Its mating alignment and polarization features guarantee accurate and repeatable connections, enhancing overall system reliability.
Direct cable to PCB connection with no mating connector required. Fast and cost-effective mass termination using IDC contacts. Secured connection via AMP-LATCH locking mechanism. High durability with thermoplastic housing and phosphor bronze contacts.
Wide temperature range of -65°C to 105°C for varied applications. Gold over nickel plating for corrosion resistance and excellent conductivity. Right angle orientation for space-efficient PCB mounting. Ideal for industrial, electronics, business, and medical equipment use.
This product is part of EnvMart's Electronics & Electricals category, ideally suited for professionals and manufacturers requiring reliable and economical IDC Connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector has a current rating of 1A.
The maximum operating voltage for this connector is 250V AC.
It operates effectively within a temperature range of -65°C to 105°C.
This connector features 20 contacts arranged in 2 rows.
The housing is made of thermoplastic, and the contacts are made of phosphor bronze with gold over nickel plating.
It uses IDC (Insulation Displacement Connector) termination type.
This connector has a right-angle orientation for space-efficient PCB mounting.
Yes, it is designed for fast and cost-effective mass termination using IDC contacts.
It features an AMP-LATCH locking mechanism that secures the connection and prevents accidental disconnection.
The pitch of the contacts is 2.54mm.
This connector is suitable for use in industrial electronics, computer hardware, business equipment, and medical devices.
The country of origin for this connector is India.
