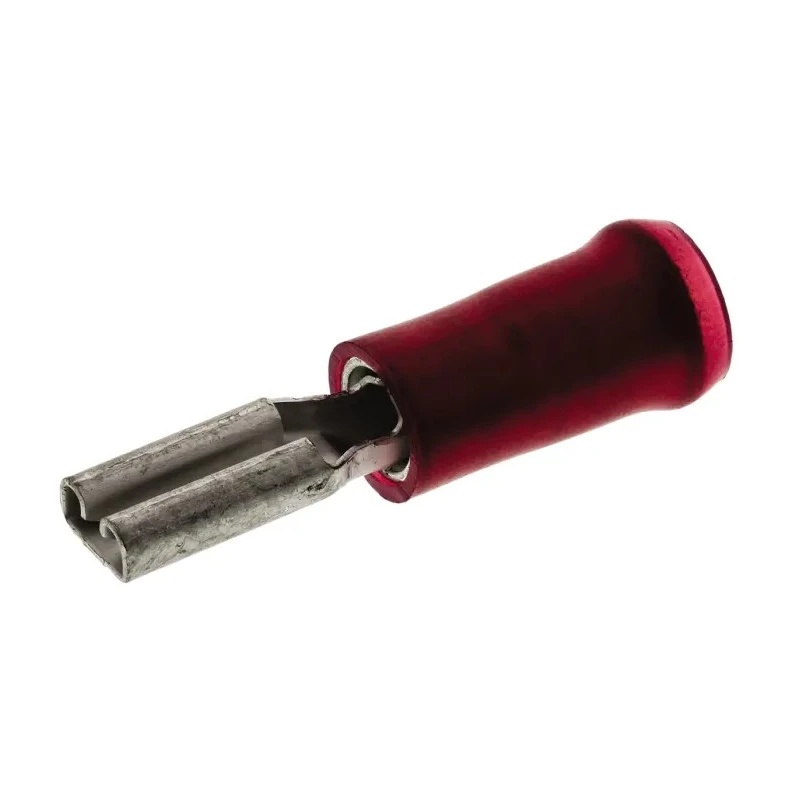

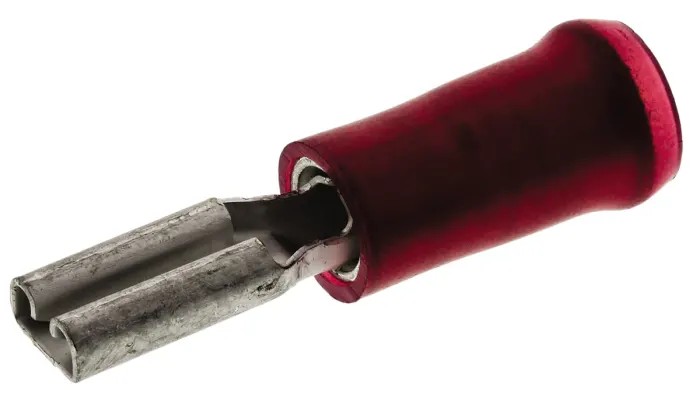

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector, Crimp, 2.79 x 0.3 mm Tab Size 22 AWG to 16 165563-1

TE Connectivity 165563-1 PIDG FASTON .110 Red Insulated Female Spade Connector is a specialized crimp wire terminal designed for reliable electrical connections in professional and industrial environments. With a tab size of 2.79 x 0.3 mm, this connector accommodates wire sizes ranging from 22 AWG to 16 AWG, ensuring versatility across multiple electrical wiring applications.

The connector features a female spade design with a crimp termination type that guarantees a secure and robust wire connection once crimped properly. The contact parts are made from high-quality brass material with tin plating, enhancing conductivity and resistance to corrosion, thereby improving durability and long-term performance.

The insulation is provided by a red-colored nylon sleeve which not only electrically isolates the terminal but also assists in quick identification of wire gauge compatibility based on industry standard color coding. Its straight orientation and an overall length of 19.8 mm make it compatible with a wide range of terminal blocks and connectors.

These PIDG FASTON .110 terminals incorporate a precision-formed metal wire barrel with serrations that maximize contact and tensile strength after crimping. The enclosed copper sleeve adds an extra layer of mechanical stability to the crimped connection, suitable for industrial and commercial electrical assemblies.

Typical use cases include electronic components, power and control wiring, automotive electrical connections, HVAC systems, and general manufacturing where reliable insulated wire terminals are critical. The connector’s standardized design supports quick disconnects and easy field serviceability, improving maintenance efficiency.

This Spade Connector features a crimp termination type for secure wire connection. It has a red insulated nylon sleeve for safety and identification. The contact material is brass with tin plating to ensure good conductivity and corrosion resistance.

Designed with a straight orientation and an overall length of 19.8 mm for ease of installation. Compatible with wire sizes from 0.3 mm² (22 AWG) up to 1.5 mm² (16 AWG). The connector tab measures 2.79 mm in width and 0.3 mm in thickness for precision fitting.

The PIDG FASTON .110 series ensures reliable electrical connection in various industrial and electronic applications. Constructed to provide maximum contact and tensile strength after crimping with precision-formed metal wire barrel.

Suitable for wire terminal applications in electronics, industrial automation, power distribution, and electrical assemblies. Insulation material is durable nylon which offers excellent electrical insulation and mechanical protection.
