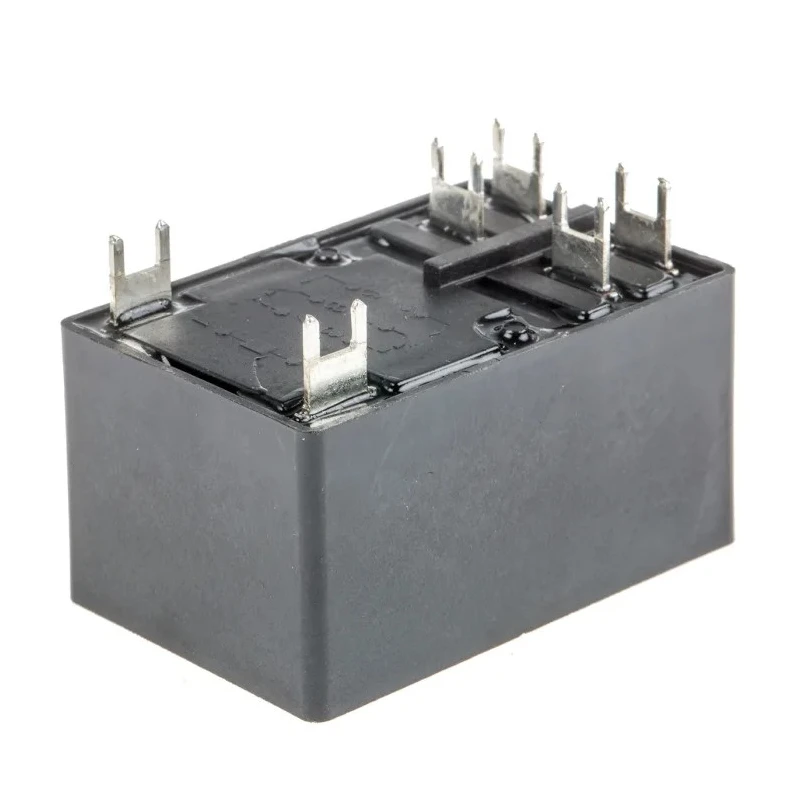

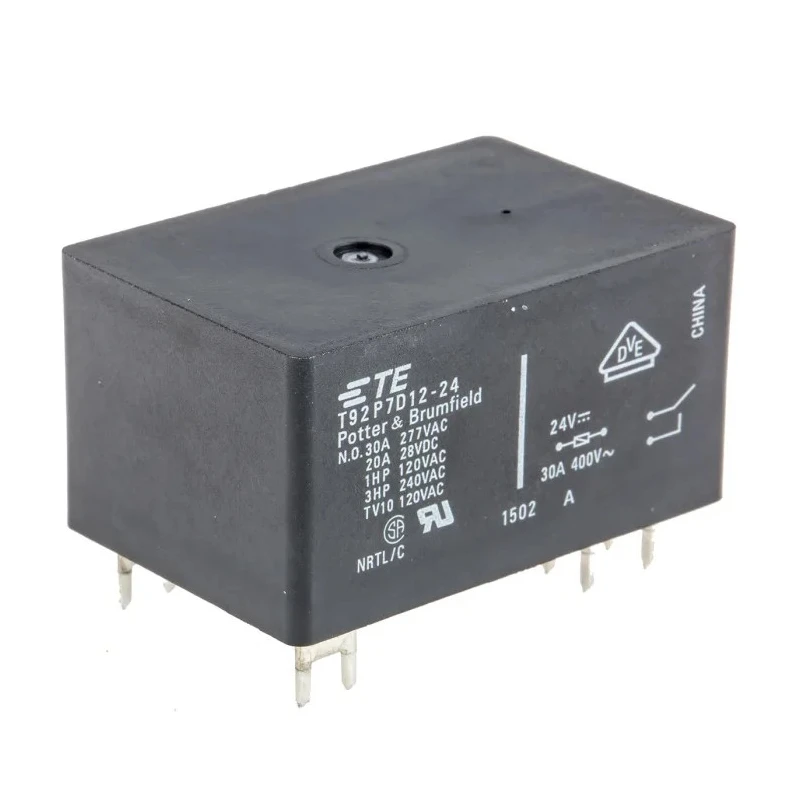

TE Connectivity PCB Power Relay 24V dc Coil 30A Switching Current DPST T92P7D12-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 30.7mm |
| Operating Temperature Range | -40 → +65°C |
| Length | 52.3mm |
| Model | T92P7D12-24 |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V dc |
Key Features
- Designed for DPST contact configuration with a 30A switching current capacity.
- Operates at a coil voltage of 24V DC, suitable for PCB mount applications.
- Features through-hole terminal type to ensure secure electrical connections.
- Compact dimensions of 52.3mm length, 34.5mm width, and 30.7mm height enhance easy integration.
- Silver alloy contacts provide durability and excellent conductivity.
- Wide operating temperature range from -40°C to +65°C supports harsh environments.
- Coil resistance rated at 350Ω ensuring efficiency in operation.
- Meets RoHS compliance standards for environmentally safe usage.
Product Description
TE Connectivity T92P7D12-24 PCB Power Relay features a 24V DC coil voltage with a robust 30A switching current capacity, designed specifically for PCB mounting with a DPST contact configuration. This relay incorporates a through-hole terminal type and is constructed with silver alloy contacts to deliver reliable performance and durability in electrical and industrial applications.
The relay measures 52.3mm in length, 34.5mm in width, and 30.7mm in height, providing a compact form factor suited for integration into various electronic assemblies. It operates efficiently within a broad temperature range from -40°C to +65°C, allowing operation in challenging industrial environments.
This relay has a coil resistance of 350Ω and meets RoHS standards ensuring compliance with environmental regulations. It is engineered by TE Connectivity, adhering to industry standards and quality control guidelines.
Commonly used in industrial automation, electrical control systems, signal conditioning, and power relay applications, this relay provides dependable switching capability for equipment requiring up to 30A current handling.
DPST contact configuration with 30A switching current. 24V DC coil designed for PCB mounting. High durability silver alloy contact material. Compact size suitable for space-sensitive installations. Operating temperature range from -40°C to +65°C.
Through-hole terminal ensures secure mounting and connection. Complies with RoHS environmental standards. Coil resistance measured at 350Ω.
Choose TE Connectivity Power Relays for reliable performance in industrial, laboratory, manufacturing, HVAC, and electrical automation applications. Browse our Electronics & Electricals category for more quality relays and contactors suited to a variety of control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A, making it suitable for various electrical applications.
The relay operates at a coil voltage of 24V DC, designed specifically for PCB mounting applications.
It measures 52.3mm in length, 34.5mm in width, and 30.7mm in height, allowing for compact integration.
This unit features a through-hole terminal type, ensuring secure electrical connections during installation.
It operates efficiently within a temperature range of -40°C to +65°C, suitable for harsh environments.
The contacts are made of silver alloy, providing durability and excellent conductivity.
Yes, it meets RoHS compliance standards, ensuring environmentally safe usage.
The coil resistance is rated at 350Ω, ensuring efficient operation of the relay.
This model features a DPST (Double Pole Single Throw) contact configuration.
The maximum operating temperature is 85°C, allowing it to function in higher temperature conditions.
It is commonly used in industrial automation, electrical control systems, and signal conditioning applications.
The relay is manufactured in China, which is indicated as its country of origin.
