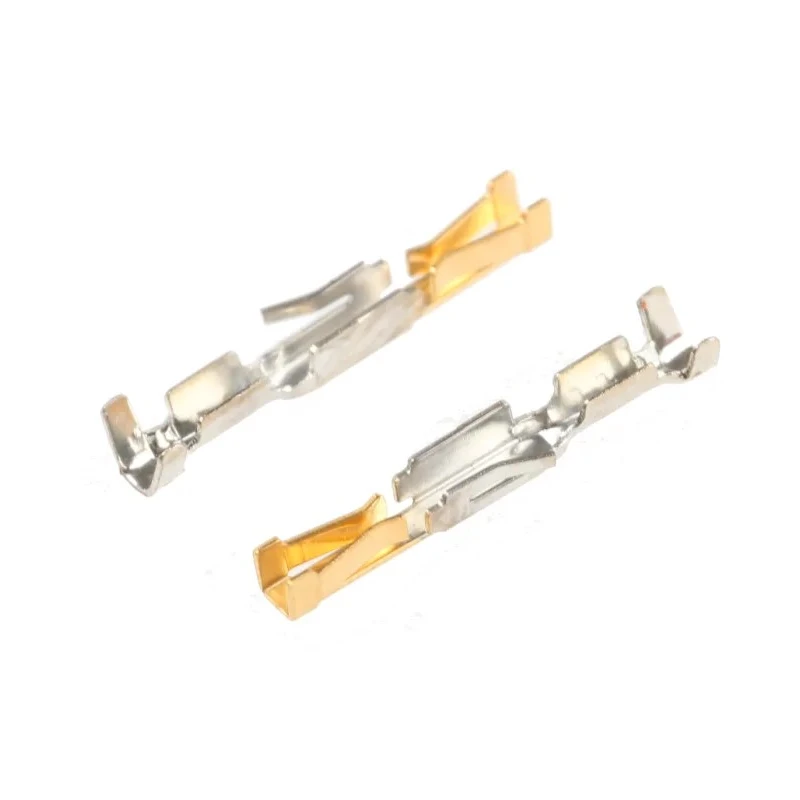

TE Connectivity AMPMODU HE14 Series Female Crimp Terminal, 28 AWG Min Crimp, 24 AWG Max, Gold Plated Contact HE14

TE Connectivity HE14 Series Female Crimp Terminal (Model HE14) is a precision-engineered component designed for use in industrial automation, control systems, and electronic equipment requiring reliable signal and power transmission. Featuring a gold-plated phosphor bronze contact, this crimp terminal accepts wire sizes ranging from 28 AWG (minimum 0.08 mm²) to 24 AWG (maximum 0.2 mm²), making it suitable for flexible wiring applications.

The crimp terminal has a robust current rating of 3 amps and is engineered to operate over a temperature range from -55°C to 125°C, ensuring stable performance in varied industrial environments. Its 13.3 mm length and compatible AMPMODU HE14 connector housing design facilitate a secure and reliable connection on printed circuit boards.

This product is fabricated from tin-plated phosphor bronze, enhancing corrosion resistance and mechanical durability. The gold plated contact reduces contact resistance to a maximum of 20 milliohms, promoting efficient electrical conduction. The recommended wire strip length for crimping is 3.25 mm, optimizing crimp quality and connection integrity.

The AMPMODU HE14 interconnect system, to which this female crimp terminal belongs, is a recognized industry standard for economical and reliable signal and control connectors. These connectors are widely used in automation, instrumentation, manufacturing, and electronic control systems owing to their dependable performance under high reliability requirements.

Constructed from phosphor bronze with gold plating for reliable conductivity. Compatible with AMPMODU HE14 connector housings for secure housing fit. Supports wire sizes from 28 AWG (0.08 mm²) up to 24 AWG (0.2 mm²). Rated current capacity of 3 amperes for efficient power handling.

Operates reliably within -55°C to 125°C temperature range. Crimp termination type ensures secure wire connections. Overall length of 13.3 mm facilitates easy PCB insertion. Maximum contact resistance limited to 20 milliohms for low power loss.

Tin-plated phosphor bronze crimp terminals improve durability and corrosion resistance.

This terminal is supplied in a ready-to-insert bag format, optimized for high-efficiency production environments requiring consistent and rapid assembly of connectors. Explore our wide category of Crimp Contacts and connectors on EnvMart for comprehensive interconnect solutions.
