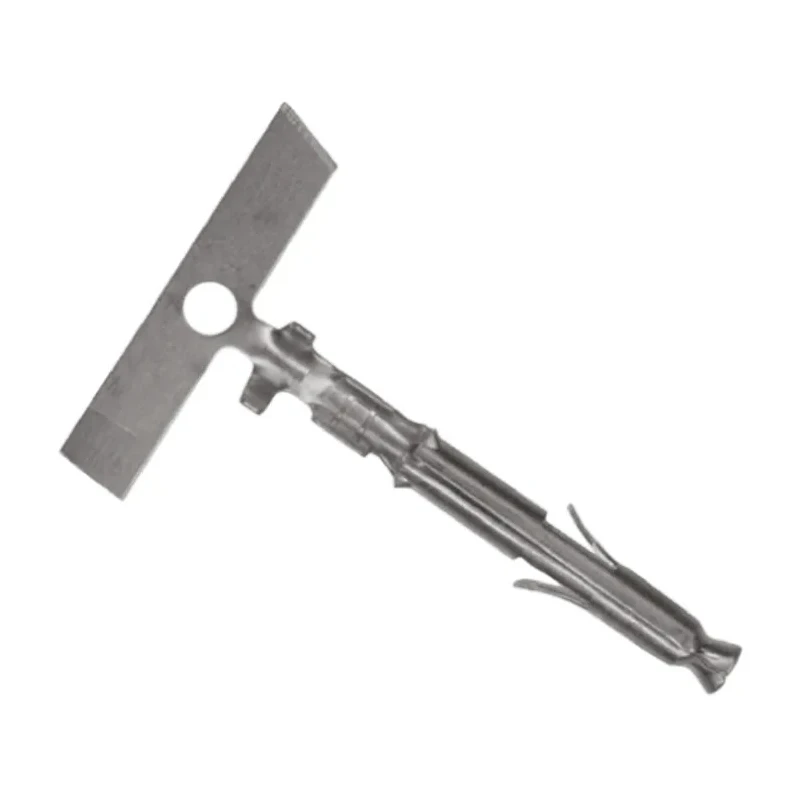

TE Connectivity Mini-Universal MATE-N-LOK II Series Female Crimp Terminal, Tin-Plated Brass, 3A, 26 AWG Min to 22 794227-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 19.94mm |
| Model | 794227-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK II Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Suitable for 26 AWG minimum to 22 AWG maximum wire sizes.
- Constructed of brass contact material with tin plating for corrosion resistance.
- Rated for a maximum current of 3 amperes.
- Operates reliably within temperature range from -30°C to 105°C.
- Features a crimp termination type for durable wire attachment.
- Compact length of 19.94 mm facilitating space-saving designs.
- Specifically designed for use with Mini-Universal MATE-N-LOK II connector housing.
- Maintains a maximum contact resistance of 20 milliohms ensuring stable conductivity.
Product Description
TE Connectivity 794227-1 Mini-Universal MATE-N-LOK II Series Female Crimp Terminal is engineered to provide robust and reliable wire-to-board connections in electronic assemblies. This crimp terminal supports wire sizes from 26 AWG minimum to 22 AWG maximum and sustains a maximum current rating of 3A, making it ideal for low power electrical applications.
Manufactured from high-quality brass with tin plating, this terminal provides excellent corrosion resistance and electrical conductivity. The crimp termination ensures a secure mechanical and electrical connection, reducing the risk of contact failure in demanding industrial and commercial environments.
Its operational temperature range extends from -30°C to 105°C, allowing application in diverse environmental conditions and ensuring durability. The compact length of 19.94 mm facilitates integration in tight PCB and connector configurations, suitable for precision electronic equipment.
This female Crimp Terminal is compatible with the Mini-Universal MATE-N-LOK II connector housing system offered by TE Connectivity, allowing for seamless interface and connectivity solutions in electrical and electronics manufacturing, assembly, and repair.
Suitable for 26 AWG to 22 AWG wire sizes. Made from brass with tin plating for durability. Rated current of 3 amperes suitable for low power. Operates in temperatures between -30°C to 105°C. Crimp termination type ensures secure wire attachment.
Compact 19.94 mm length enables space-efficient design. Designed for Mini-Universal MATE-N-LOK II connector housing. Maximum contact resistance of 20mΩ for reliable conductivity.
This terminal finds extensive use in electronic component manufacturing, electrical connector assemblies, automotive wiring harnesses, and other industrial applications requiring high-reliability crimp contacts. It supports efficient and precise connection solutions in laboratory, manufacturing, and repair environments.
Explore the full range of electronics connectivity solutions and related crimp contacts at EnvMart for comprehensive component sourcing and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 3 amperes, suitable for low power electrical applications.
It supports wire sizes from 26 AWG minimum to 22 AWG maximum, accommodating various wiring needs.
The terminal operates reliably within a temperature range from -30°C to 105°C, allowing for diverse environmental applications.
The compact length of this terminal is 19.94 mm, facilitating space-saving designs in electronic assemblies.
It is constructed from brass contact material with tin plating, providing corrosion resistance and stable conductivity.
This model features a crimp termination type, ensuring a secure mechanical and electrical connection.
It is specifically designed for use with the Mini-Universal MATE-N-LOK II connector housing, ensuring compatibility and reliability.
The maximum contact resistance is 20 milliohms, ensuring reliable conductivity in connections.
This terminal is suitable for electronic component manufacturing, electrical connector assemblies, and automotive wiring harnesses.
The minimum wire size is 0.1 mm² and the maximum wire size is 0.4 mm², accommodating various wiring configurations.
The country of origin for this crimp terminal is the United States.
This terminal belongs to the Mini-Universal MATE-N-LOK II series, which is known for its reliable wire-to-board connections.
