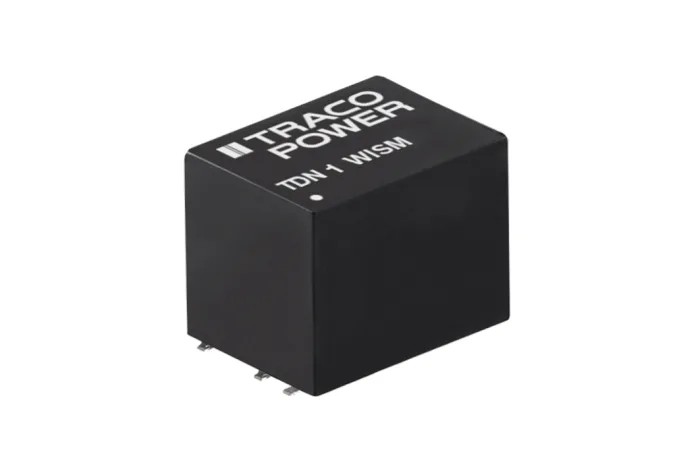

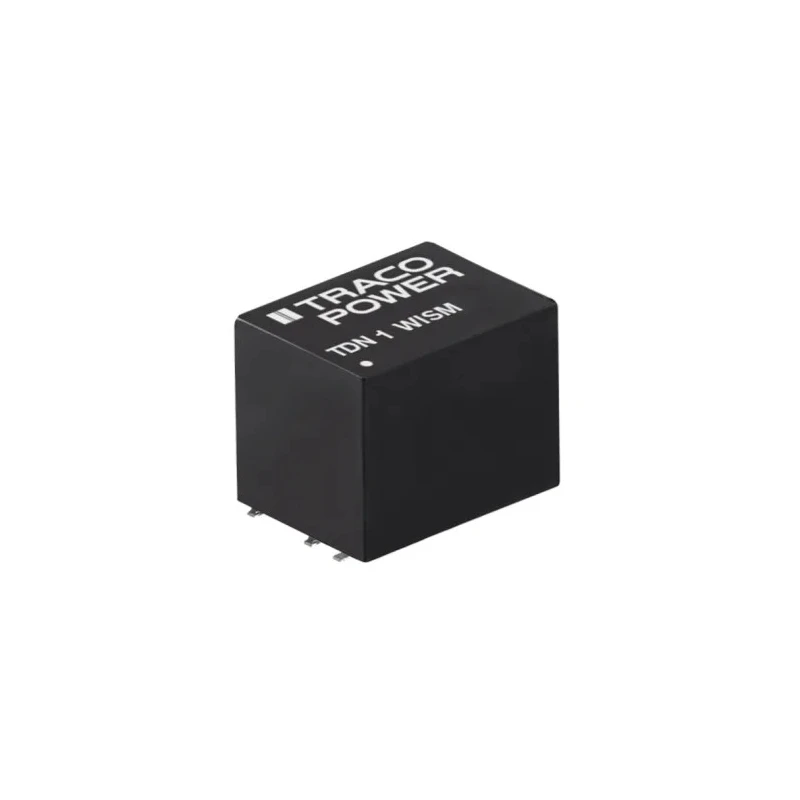

TRACOPOWER TDN 1WISM DC/DC Converter 24V dc Output 45mA 4.5-18V Input 1W Surface Mount 90°C Max Temperature TDN 1-1215WISM

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER TDN 1WISM DC/DC Converter 24V dc Output 45mA 4.5-18V Input 1W Surface Mount 90°C Max Temperature TDN 1-1215WISM

Name: TRACOPOWER TDN 1WISM DC/DC Converter 24V dc Output 45mA 4.5-18V Input 1W Surface Mount 90°C Max Temperature TDN 1-1215WISM
Brand: TRACOPOWER
SKU: 209372
Price: 305.73 USD
Availability: InStock



Category DC/DC Converter Brand TRACOPOWER Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters TRACOPOWER TDN 1WISM DC/DC Converter, 24V dc/ 45 m
Brand	TRACOPOWER
Efficiency	80%
Length	13.2mm
Model	TDN 1-1215WISM
Depth	9.9mm
Width	9.1mm
Mount Type	Surface
Series	TDN 1WISM
Maximum Operating Temperature	90°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
MTBF	8400000h
Number of outputs	1
Maximum Output Power	1W
Maximum Input Voltage	18V dc
Minimum Input Voltage	4.5V
Number of Pins	8
Output Voltage 1	24V dc
Output Current 1	45mA
Isolation Voltage	1.6kV dc
Input Ratio	4:1
Input Ratio4	1

Key Features

Operates with a wide input voltage range from 4.5V to 18V DC.
Compact surface mount package measuring 13.2 x 9.1 x 9.9 mm.
High isolation voltage of 1.6kV DC ensures safety and signal integrity.
Efficiency of 80% supports energy-saving applications.
Wide operating temperature range from -40°C to 90°C without derating.
Includes remote On/Off control and short circuit protection for reliability.
MTBF rating of 8,400,000 hours guarantees long operational life.
Suitable for space-constrained industrial electronic applications.

Product Description

TRACOPOWER TDN 1-1215WISM DC/DC Converter is a high-performance power supply component designed to provide a fully regulated 24V DC output at a current of 45mA, delivering 1W of power with a compact surface mount design.

The converter supports an input voltage range from 4.5V up to 18V DC, maintaining reliable operation across varying power source conditions with a 4:1 input ratio. Its small cubical package measures only 13.2mm in length, 9.1mm in width, and 9.9mm in depth, making it ideal for applications with limited space.

Featuring an isolation voltage of 1.6kV DC, this DC/DC converter ensures electrical isolation between input and output circuits, enhancing safety and signal fidelity in industrial environments. The efficiency rating of 80% helps reduce energy loss during power conversion.

Its operating temperature range from -40°C to 90°C without derating allows deployment in harsh temperature environments. Additional features such as remote On/Off control and short circuit protection contribute to robust and flexible system integration. The high MTBF of 8.4 million hours indicates excellent reliability for long-term use.

This converter is ideal for industrial, laboratory, and electronic manufacturing applications requiring compact, efficient, and reliable DC power conversion. Its surface mount packaging simplifies PCB assembly and integration.

Operates with wide input voltage range of 4.5V to 18V DC. Compact Surface Mount Device (SMD) package measuring 13.2 x 9.1 x 9.9 mm. Isolation voltage of 1.6kV DC for enhanced safety. Efficiency rated at 80% for energy savings.

Wide operating temperature range from −40°C to +90°C. Includes remote On/Off functionality and short circuit protection. High MTBF of 8,400,000 hours ensuring long service life. Ideal for industrial and electronic applications with space constraints.
