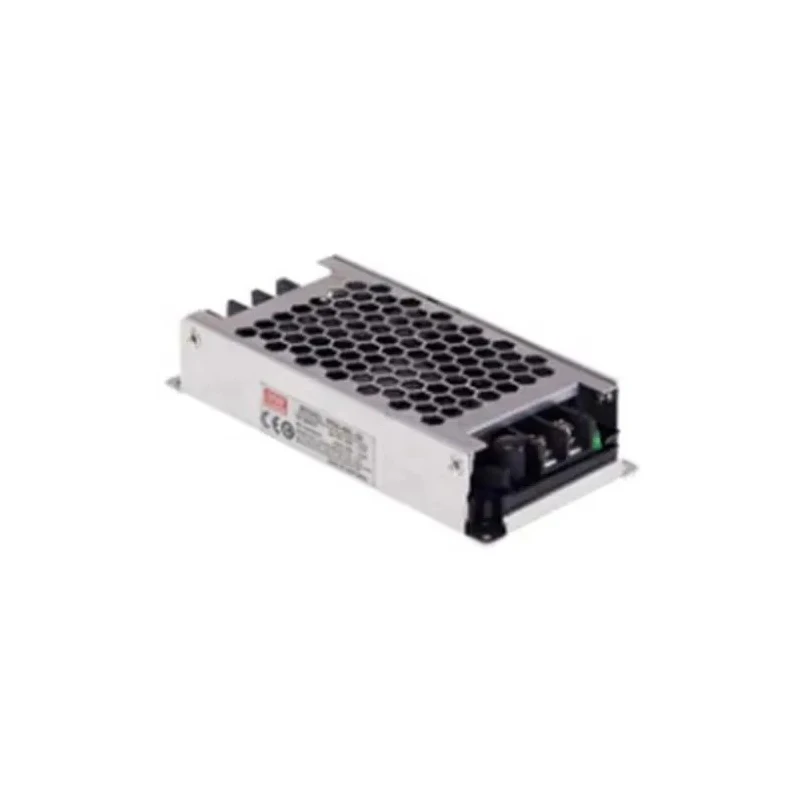

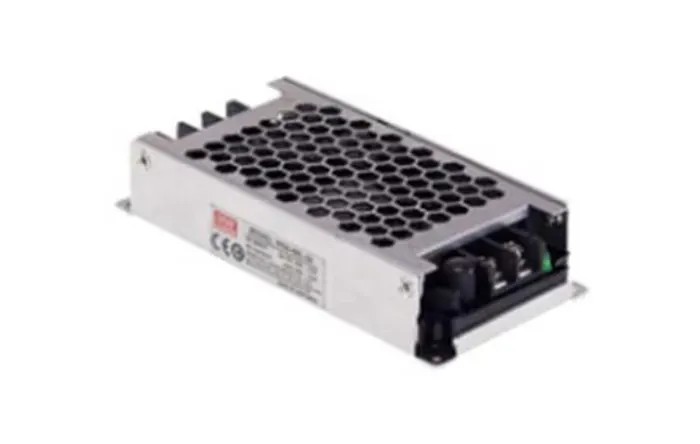

MEAN WELL RSD-60 Series DC/DC Converter 24V Output, 160V Max Input, 2.5A Output Current, Chassis Mount, Operating RSD-60H-24

MEAN WELL RSD-60H-24 DC/DC Converter features a 24V DC output voltage and wide input range from 40V to 160V DC, delivering up to 2.5A output current with maximum power of 60W. This chassis mount converter is built for industrial and commercial applications requiring reliable DC power conversion with high efficiency of 91.5% and stable output characterized by low ripple and noise of 50mV peak-to-peak.

Designed for demanding environments, it operates across a wide temperature range from -40°C to 70°C and provides 4000V isolation voltage to ensure safety and performance. Its compact dimensions (128mm L x 60mm W x 25mm D) and lightweight chassis mounting design (290g) make it suitable for space-constrained applications such as railway systems, industrial automation, and telecommunications.

The RSD-60H-24 complies with EN/IEC standards for safety and electromagnetic compatibility, featuring a built-in constant current limiting circuit and LED indicator for easy operational status monitoring. Its cooling is achieved by free air convection with a half encapsulated construction providing durability and reliable thermal performance.

This converter series offers a versatile choice of wattages from 15W to 1000W with single output voltages between 5V and 48V. The RSD-60 series products come with a 3-year warranty and are engineered for ultra-compact installation with a low 1U height profile. The wide 4:1 input voltage ratio supports various power supply conditions without the need for minimum load requirements.

Applications include industrial power supply, railway equipment, communication networks, and other electrical and electronic systems requiring efficient DC voltage conversion with assured reliability and safety standards. The robust design and features cater well to harsh and fluctuating input environments.

The converter features a wide input voltage range from 40V to 160V dc for flexible power supply. It supports a maximum output power of 60W with high efficiency of 91.5%. Designed for chassis mounting with compact dimensions of 128mm length, 60mm width, and 25mm depth.

Operating temperature range spans from -40°C up to 70°C suitable for harsh environments. Includes 4kV DC isolation voltage enhancing safety in industrial applications. Single output with low ripple and noise of 50mV peak-to-peak ensuring stable DC output.

Constructed for reliability with MTBF of 593800 hours and compliance to EN/IEC standards. Equipped with built-in constant current limiting circuit and LED power indicator for status monitoring. Compact 1U low profile design with half encapsulated construction cooled by free air convection.
