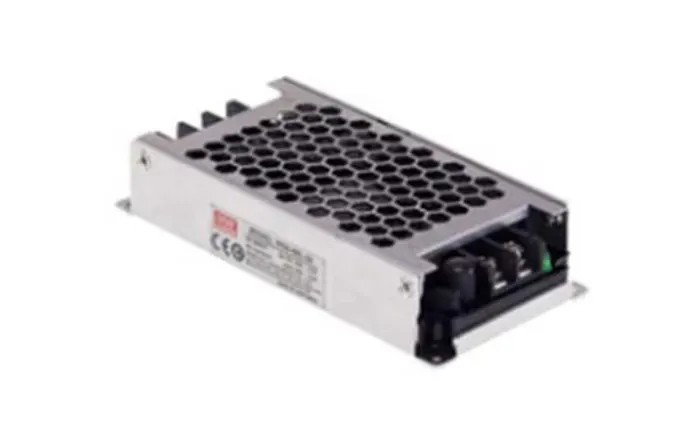

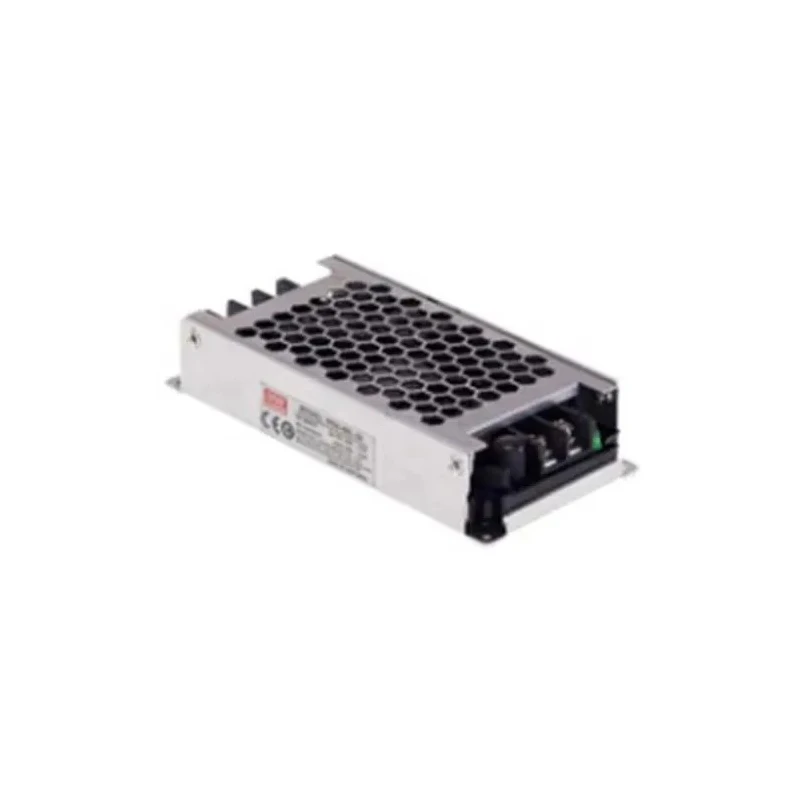

MEAN WELL DC/DC Converter 12V DC, 160V DC Input, 5A Output Current, Chassis Mount, 70°C Max Temp RSD-60H-12
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD-60 DC/DC Converter, 12V dc/, 160V dc |
| Brand | MEAN WELL |
| Efficiency | 92.5% |
| Length | 128mm |
| Model | RSD-60H-12 |
| Depth | 25mm |
| Gross Weight | 290g |
| Width | 60mm |
| Mount Type | Chassis |
| Series | RSD-60 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 593800h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 40V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 5A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- It delivers a maximum output power of 60W with an efficiency of 92.5%.
- Supports an output current of 5A suitable for various industrial uses.
- Designed for a wide operating temperature range from -40°C to 70°C, ensuring reliable performance.
- Offers robust isolation voltage of 4kV DC for enhanced safety and noise immunity.
- Compact low-profile chassis with dimensions 128mm length, 60mm width, and 25mm depth.
- Equipped with ripple and noise suppressed to 50mV Pk-Pk for clean output power.
- Includes built-in constant current limiting circuit and LED power-on indicator.
- Complies with EN/IEC standards, ideal for industrial and railway standard applications.
Product Description
MEAN WELL RSD-60H-12 is a high-performance DC/DC converter designed to provide stable 12V DC output from a wide input voltage range of 40V to 160V DC. This converter supports chassis mounting configurations, making it suitable for industrial, railway, manufacturing, and electronic power supply applications.
The product offers a maximum output power of 60W and operates with high efficiency of 92.5%, minimizing energy loss during operation. It is engineered to operate reliably under harsh temperature conditions, with a wide operating temperature range from -40°C to 70°C.
With a robust 4kV DC isolation voltage, the RSD-60H-12 ensures safety and noise immunity in electrically noisy environments. The unit maintains low ripple and noise levels of 50mV Pk-Pk, delivering clean, consistent power output critical for sensitive electronic components.
The compact chassis measures 128mm in length, 60mm in width, and 25mm in depth, making it space-efficient while supporting easy installation. Additional features include a built-in constant current limiting circuit for protection and an LED indicator to confirm power status at a glance.
This converter adheres to rigorous EN/IEC standards and meets railway standards for quality and electromagnetic compatibility, ensuring compliance with industry requirements. The converter offers a 4:1 wide input voltage range for broad application coverage.
High efficiency rating minimizes energy consumption and heat output. Wide temperature range and long MTBF support durable industrial usage. Built-in current limiting enhances safety for both the device and connected equipment.
Chassis mount design provides stable physical integration into control panels. LED power indicator facilitates easy operational monitoring. Compact dimensions allow optimal use of installation space. Reliable isolation voltage prevents electrical faults spread.
Low ripple voltage safeguards sensitive electronic circuits. Compliance with EN/IEC standards confirms certified product quality.
This DC/DC Converter is ideal for industries including electronics manufacturing, railway systems, power supply units, and other industrial applications requiring stable voltage conversion under challenging conditions. It is part of MEAN WELL’s highly regarded RSD-60 series, known for reliability and durability.
Explore more MEAN WELL power supply solutions and converters in the dedicated sections to find compatible products tailored to your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 60W.
This converter operates within a wide input voltage range of 40V to 160V DC.
The output current rating for this unit is 5A.
It has an efficiency rating of 92.5%.
The dimensions of this model are 128mm in length, 60mm in width, and 25mm in depth.
This converter operates within a temperature range of -40°C to 70°C.
The isolation voltage for this model is 4kV DC, ensuring safety and noise immunity.
The ripple and noise level is suppressed to 50mV Pk-Pk for clean output power.
This unit supports chassis mounting configurations.
It complies with EN/IEC standards, making it suitable for industrial and railway applications.
It includes a built-in constant current limiting circuit for protection and an LED power-on indicator.
The gross weight of the RSD-60H-12 is 290g.
