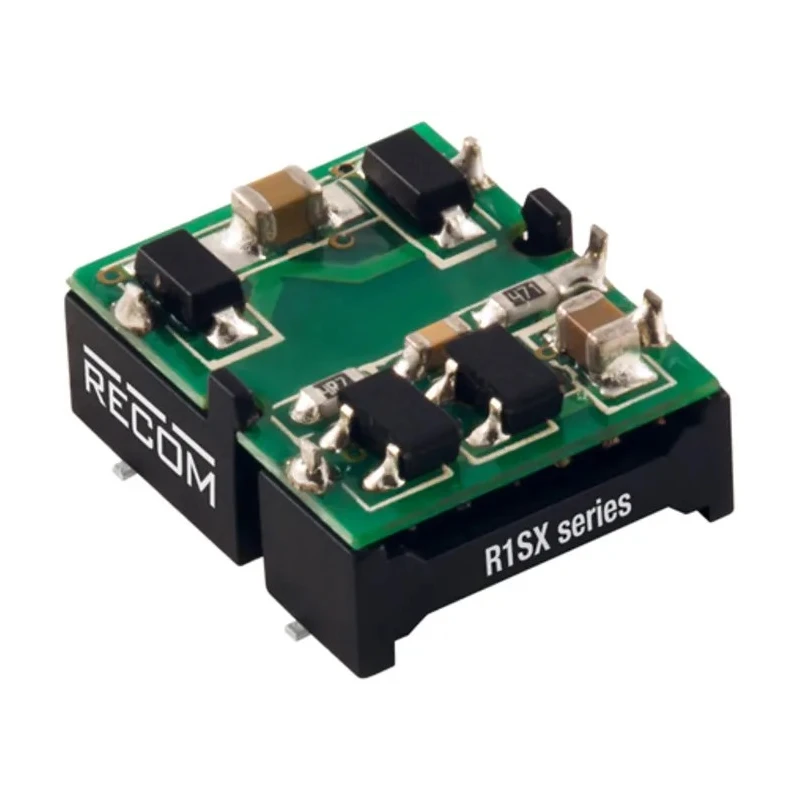

Recom DC/DC Converter 3.3V DC 303mA Input 2.97V to 3.63V 1W Surface Mount R1SX

Recom R1SX DC/DC Converter model R1SX delivers a single 3.3V DC output at 303 mA with a maximum power rating of 1W, using a surface mount package design optimized for low profile installation. It accepts a DC input voltage range from 2.97V minimum to 3.63V maximum, featuring isolation of 1 kV DC for operational safety in demanding environments. The device operates reliably across a temperature range of -40°C to +100°C without derating, making it suitable for industrial and embedded electronics applications.

This isolated DC-DC converter has a compact package dimension of 12.75mm length, 11.1mm width and 5.8mm depth, designed for surface mount technology (SMT). With an efficiency of 74%, it provides effective power conversion in sensitive electronic circuits while maintaining low quiescent power consumption of less than 150 mW. The converter is pin-compatible with the R1S series but has a reduced height for space-constrained PCBs.

The R1SX converter boasts a high Mean Time Between Failures (MTBF) of 7.8 million hours, attesting to its robust design and long operational lifespan. It holds certifications IEC/EN/UL62368 and 60950 and conforms to RoHS directives, ensuring compliance with international safety and environmental standards.

This device is ideal for use in a wide range of applications including industrial controls, laboratory instrumentation, electronic equipment powering, and embedded systems where compact, reliable DC-DC conversion is required. It can operate across wide temperature extremes and offers high isolation to protect sensitive electronics.

Supports 3.3V DC output voltage at 303 mA current rating. Input voltage range from 2.97V to 3.63V DC for flexible powering options. 1 kV DC isolation voltage enhances safety and noise immunity. Compact surface mount package with dimensions 12.75 x 11.1 x 5.8 mm.

High MTBF of 7,800,000 hours ensures long-term reliability. Efficiency of 74% for optimized power conversion efficiency. Wide operating temperature range from -40°C to 100°C improves application versatility. Certified to IEC/EN/UL62368 and 60950 standards.

Compliance with RoHS for environmentally responsible manufacturing. Explore Recom DC/DC Converters and related electronic components on EnvMart for reliable power solutions.
