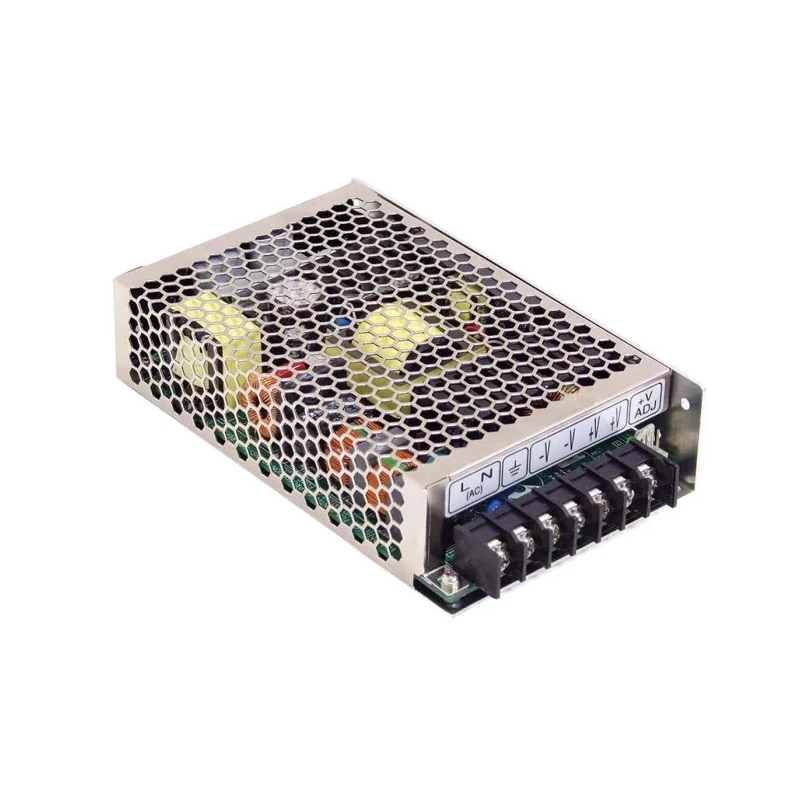

MEAN WELL Switching Power Supply 36V DC, 154.8W, 4.3A Output, Chassis Mount HRP-150-36

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 36V DC, 154.8W, 4.3A Output, Chassis Mount HRP-150-36

Name: MEAN WELL Switching Power Supply 36V DC, 154.8W, 4.3A Output, Chassis Mount HRP-150-36
Brand: MEAN WELL
SKU: 208763



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	Taiwan
Brand	MEAN WELL
Power	154.8W
Efficiency	89%
Length	159mm
Model	HRP-150-36
Depth	38mm
Gross Weight	610g
Width	97mm
Mount Type	Chassis
Series	HRP-150
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Standards/Approvals	EAC TP TC 004, ASNZS 668.1, TUV BS ENEN 6681, UL 6681
Maximum Output Voltage	36V dc
SMPS Output Current	4.3A
Minimum Input Voltage	85V ac

Key Features

This unit features high efficiency of 89% for reliable energy usage.
Designed for chassis mount installation in electronic equipment.
Supports a wide input voltage range from 85V AC to a maximum of 370V DC.
Operates efficiently over a temperature span from -40°C to 70°C.
Compact with dimensions 159mm length, 97mm width, and 38mm depth.
Conforms to multiple international standards including EAC TP TC 004 and UL 6681.
Weighs 610g, balancing portability and robustness.
Ideal for industrial, electronic, and automation power supply applications.

Product Description

MEAN WELL HRP-150-36 is a highly reliable switching power supply delivering 36V DC output voltage and 154.8W power capacity. It provides a steady DC output current of 4.3A with a chassis mount design suited for integration into various electronic systems. The unit supports a broad input voltage range spanning 85V AC to a maximum of 370V DC, ensuring compatibility with diverse power sources.

This power supply features high efficiency of 89%, contributing to energy savings and longer component life. Operating temperature ranges from -40°C to 70°C make it suitable for harsh industrial environments. Its compact dimensions of 159mm in length, 97mm in width, and 38mm in depth, combined with a weight of 610g, afford flexible installation and ease of handling.

The HRP-150-36 adheres to several certifications and standards such as EAC TP TC 004, ASNZS 668.1, TUV BS ENEN 6681, and UL 6681, confirming its safety and quality compliance. It does not have hazardous area certification, making it best suited for general industrial and electronic applications. The power supply's high reliability and power factor correction (PFC) function enhance its operational lifespan and stability under load.

Common use cases include industrial automation, control cabinets, machinery power requirements, and electronic instrumentation. MEAN WELL’s proven series ensures dependable performance in rigorous electrical and electronic environments.

Overall, the HRP-150-36 balancing compact size, high output power, wide input voltage range, and robust operational parameters provides a premium power solution for various technical and industrial requirements.

This unit features high efficiency of 89% for reliable energy usage. Designed for chassis mount installation in electronic equipment. Supports a wide input voltage range from 85V AC to a maximum of 370V DC. Operates efficiently over a temperature span from -40°C to 70°C.

Compact with dimensions 159mm length, 97mm width, and 38mm depth. Conforms to multiple international standards including EAC TP TC 004 and UL 6681. Weighs 610g, balancing portability and robustness. Ideal for industrial, electronic, and automation power supply applications.
