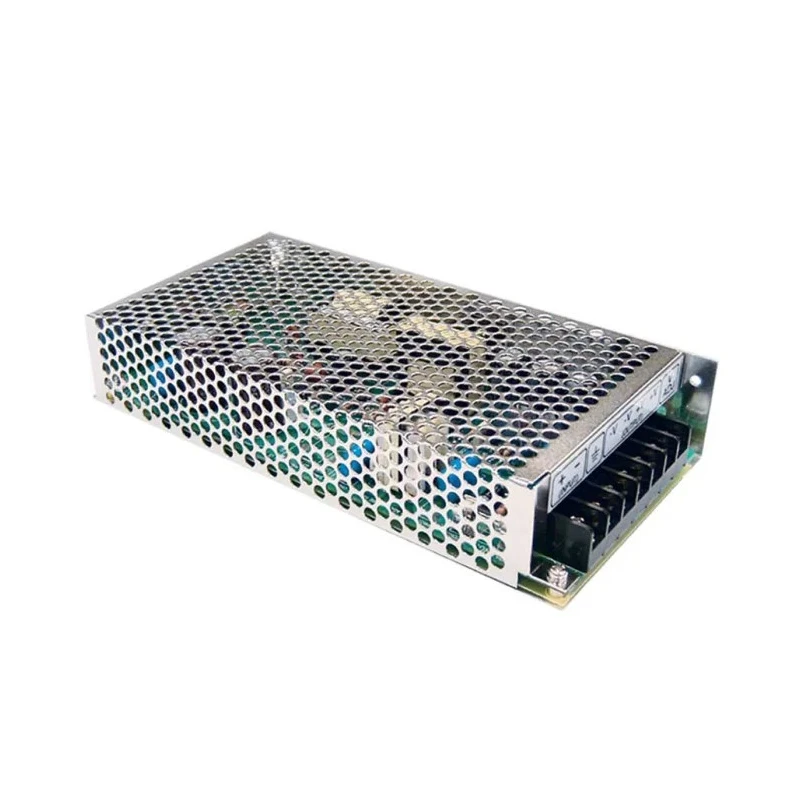

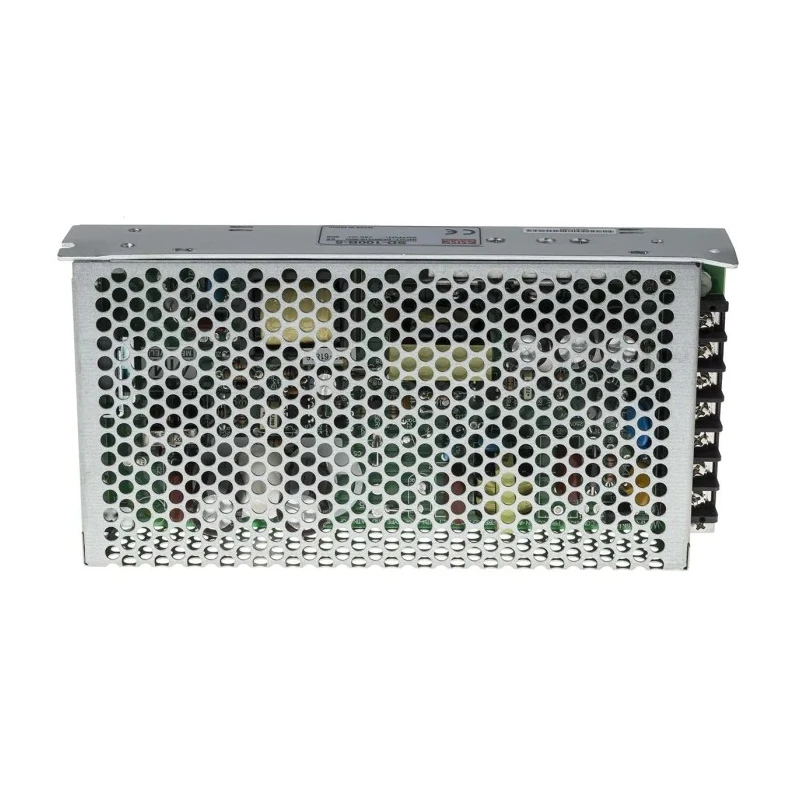

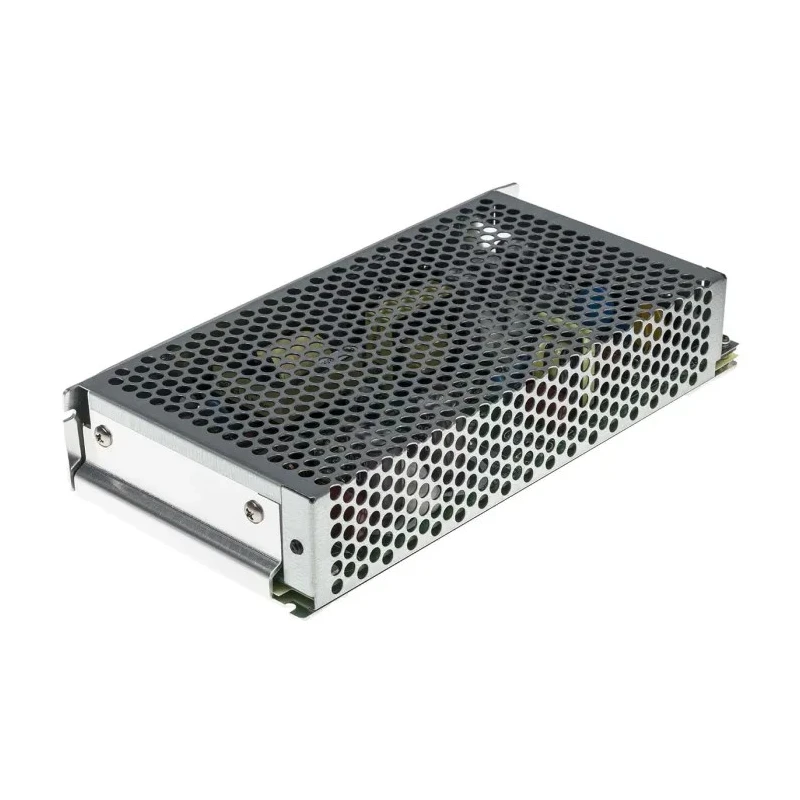

MEAN WELL DC/DC Converter, 5V DC Output, 24V DC Input, 20A Output Current, 100W Power, Chassis Mount, 60°C Max Temp SD-100B-5

MEAN WELL SD-100B-5 DC/DC Converter delivers a high-performance power conversion solution designed for industrial and electronic applications requiring stable 5V DC output from a 19V to 24V DC input source. The device is chassis mount type, suitable for secure installation in control panels and electronic assemblies.

Constructed with high reliability, the converter features a MTBF (Mean Time Between Failures) of 355,500 hours at 25°C, ensuring long operational life in demanding environments. The unit supports a wide input voltage range with a 2:1 ratio and delivers a maximum output current of 20A at 5V, with a maximum power capacity of 100W, making it ideal for powering various industrial control systems, instrumentation, and embedded electronics.

The SD-100B-5 is designed with an adjustable output voltage range, providing flexibility for precise voltage regulation, and maintains low ripple and noise at 100mV peak-to-peak to protect sensitive electronic components. It employs a high isolation voltage of 1.5kV AC between input and output to enhance safety and reduce noise interference.

This converter complies with EMC standards EN 55022 Class B and EN 61000-4-2, supporting electromagnetic compatibility and reducing interference risks in industrial and commercial settings. The thermal design supports operation across temperatures from -10°C to +60°C, making it reliable in varied ambient conditions.

Protection features include safeguards against short circuits, overloads, and overvoltage, ensuring durable and safe operation. The product is efficient up to 74%, minimizing power loss and heat generation. Its compact dimensions of 199mm length, 38mm width, and 38mm depth and a weight of 650g make it suitable for space-constrained applications.

The MEAN WELL SD-100B-5 DC/DC Converter is widely used in industrial automation, robotics, communication equipment, instrumentation, and other electronic devices requiring stable regulated power input. Designed for robust performance and long service life, it supports designers and engineers seeking reliable power conversion in diverse industrial and laboratory settings.

High reliability with long MTBF for extended lifespan. Wide 2:1 input voltage range for flexible use. Chassis mounting type for easy integration. Adjustable output voltage for precise control. Low output ripple and noise to protect circuits.

Electromagnetic compatibility with EN 55022 and EN 61000-4-2. Built-in protections for electrical faults. Compact dimensions and lightweight design. Operating temperature range suitable for varied environments. High input-output isolation voltage for safety.
