ASSMANN WSW D-Sub Connector 37 Way Straight Panel Mount Metal Housing 500V 3A A-DF 37 LL/Z

Free Delivery in India | Lowest Global Shipping Charges

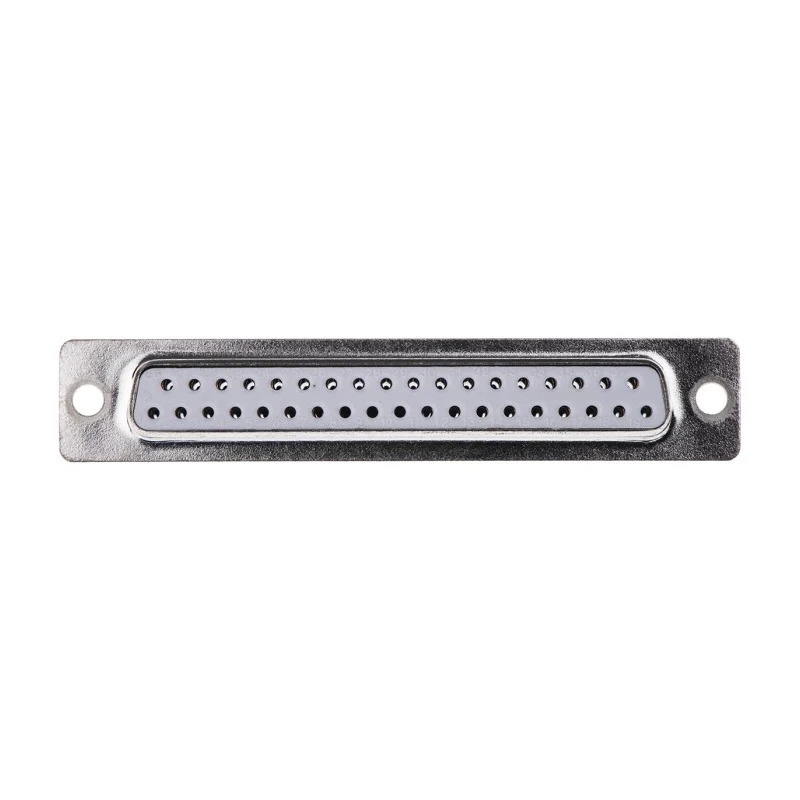

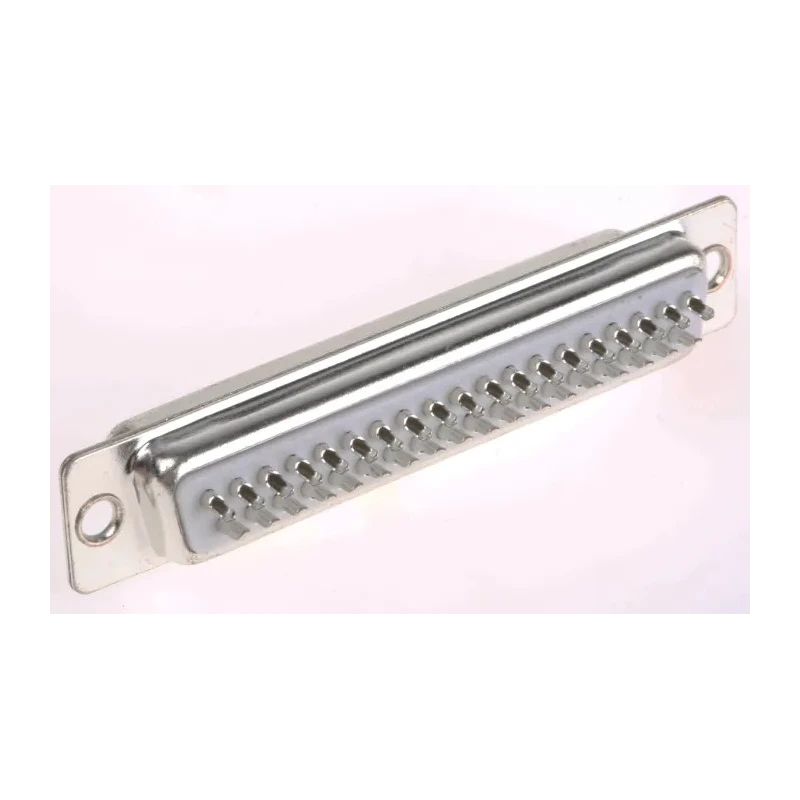

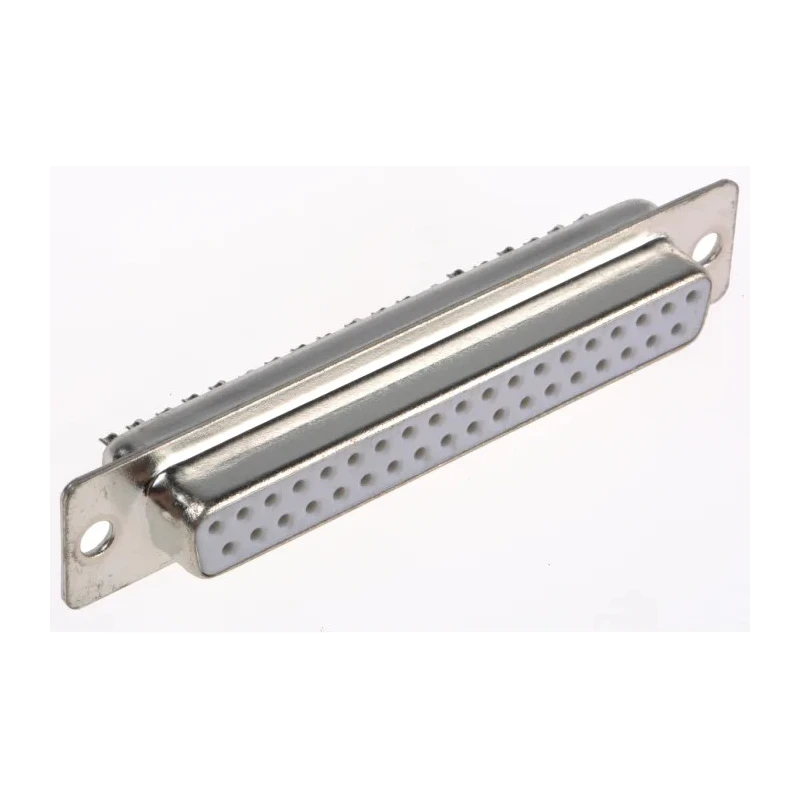

ASSMANN WSW D-Sub Connector 37 Way Straight Panel Mount Metal Housing 500V 3A A-DF 37 LL/Z

Name: ASSMANN WSW D-Sub Connector 37 Way Straight Panel Mount Metal Housing 500V 3A A-DF 37 LL/Z
Brand: ASSMANN WSW
SKU: 208238
Price: 1.96 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DF 37 LL/Z
Mount Type	Panel Mount
Housing Material	Metal
Contact Material	Phosphor Bronze
Series	A-DF
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	37
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	C

Key Features

Features 37 contacts with phosphor bronze gold-plated contact material for optimal conductivity.
Designed with a straight orientation and panel mount type for easy installation.
Constructed with a metal housing and a CH-size D-Sub shell for durability.
Operates within a temperature range of -55°C to 105°C.
Terminated using solder type with female contact gender for secure connections.
Ideal for industrial and electronic applications requiring robust connector solutions.
Manufactured as part of the A-DF series ensuring compatibility in system designs.
Gold flash plated contacts enhance corrosion resistance and signal integrity.

Product Description

The ASSMANN WSW A-DF 37 LL/Z model is a 37 Way Straight Panel Mount D-Sub Connector constructed with a durable metal housing and designed to handle an operating voltage of 500V and current up to 3A. Its straight orientation and panel mount type provide ease of integration into various electronic and industrial equipment.

This connector features phosphor bronze contacts with gold plating to ensure excellent electrical conductivity and reliability in demanding environments. It is terminated via solder type contacts with a female gender configuration, suitable for stable and secure connections on printed circuit boards or cable assemblies.

Operating temperatures range from a minimum of -55°C to a maximum of 105°C, making it suitable for applications exposed to varying environmental conditions. The connector includes mounting flanges with 3.05mm holes for secure panel fixation, enhancing mechanical stability.

The connector’s shell size is CH, tailored for systems requiring a high contact count in a compact footprint. 37 contacts with phosphor bronze gold-plated material ensure excellent signal transmission. Straight orientation panel mount for easy installation in electronics assemblies.

Metal housing and durable construction for high mechanical stability. Operating temperature range from -55°C to 105°C suitable for industrial use. Solder termination type with female contact gender for reliable connections.

500V voltage rating and 3A current capacity for versatile electrical applications. Includes mounting flange with holes for secure panel mounting. Gold plating enhances corrosion resistance and reliability over time.

This ASSMANN WSW D-Sub connector is ideal for industrial, electronic, and communication equipment where high reliability and durability are critical. It can be used in manufacturing, automation, instrumentation, and other technical fields requiring robust electrical connectors.
