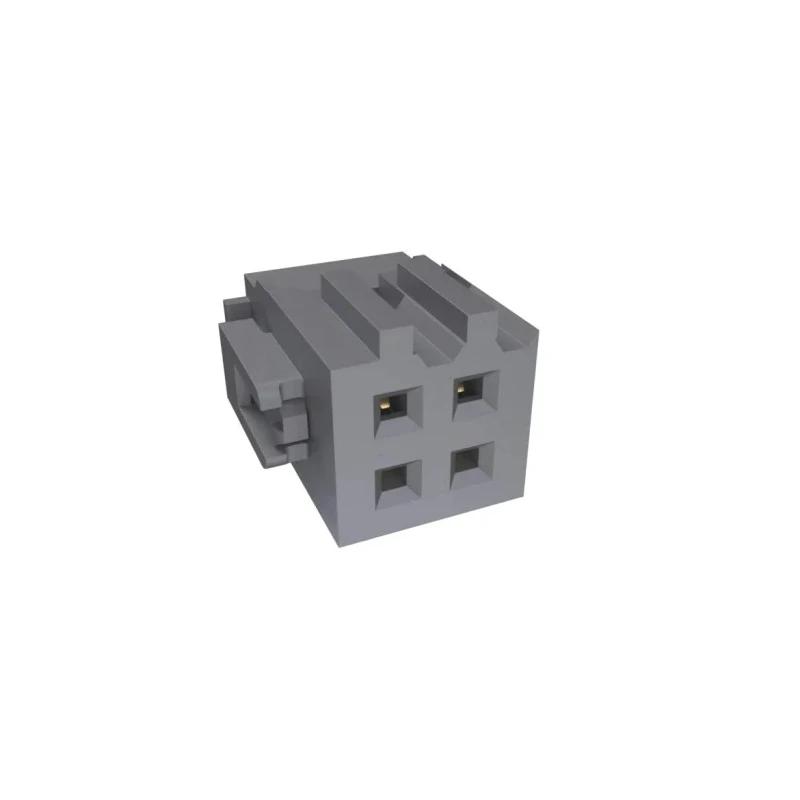

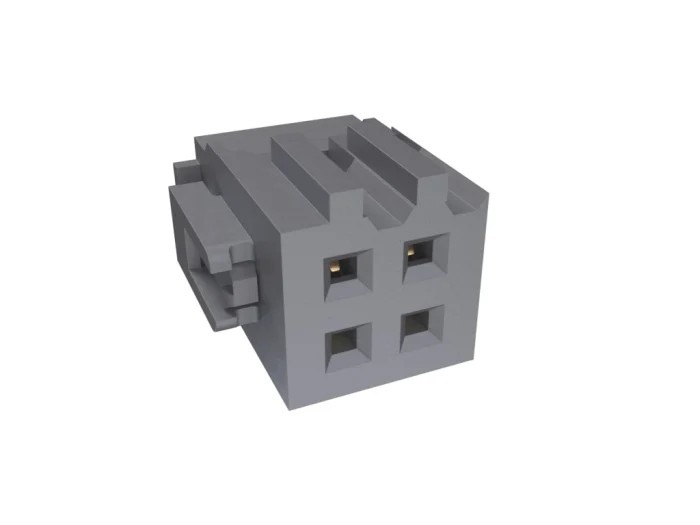

Amphenol Communications Solutions 4-Way IDC Connector Female for Cable, 2 Row, 71600-104LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions 4-Way IDC Connector Female for Cable, 2 Row, 71600-104LF

Name: Amphenol Communications Solutions 4-Way IDC Connector Female for Cable, 2 Row, 71600-104LF
Brand: Amphenol Communications Solutions
SKU: 208062
Price: 0.67 USD
Availability: InStock



Category IDC Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	1000V ac
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	1A
Model	71600-104LF
Mount Type	Cable
Housing Material	Glass Filled Thermoplastic
Contact Material	Phosphor Bronze
Series	Quickie
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

The connector features 4 contacts arranged in 2 rows for compact design.
It supports a current rating of 1A with 1000V ac voltage capability.
The connector is shrouded and designed for straight cable orientation.
Constructed with glass filled thermoplastic housing for durability.
Operating temperature range from -65°C to 105°C ensures wide usability.
Gold-plated contacts provide excellent corrosion resistance and long-lasting performance.
IDC termination type enables quick and secure wire termination.
Designed for flat flexible cable with wire sizes from 30 AWG to 26 AWG.

Product Description

Amphenol Communications Solutions 71600-104LF 4-Way IDC Connector Female for Cable, 2 Row is a Quickie series 2.54 mm IDC receptacle connector designed for reliable cable connections in electronic applications.

This connector features 4 gold-plated phosphor bronze contacts arranged in 2 rows, supporting 1A current and up to 1000V ac voltage. The shrouded design with glass filled thermoplastic housing provides robust mechanical strength and protection during use. Its straight orientation and cable mount type facilitate easy integration into flat flexible cable systems ranging from 30 AWG to 26 AWG.

The connector employs an adjustable bridge-type cover that simplifies cable assembly while ensuring precise contact alignment and termination reliability. Long wiping action of IDC terminals guarantees excellent electrical contact, and duplex plating supports 100 mating cycles, ensuring durability in industrial and commercial environments.

Operating temperature range from -65°C to 105°C allows usage in various conditions including industrial automation, instrumentation, medical devices, communications, and consumer products. Polarization slots and keying features prevent incorrect mating, reducing assembly errors.

These connectors mate with specific shrouded latched headers as referenced by compatible part numbers for secure connections in demanding applications. The connector has 4 contacts arranged in 2 rows providing compact design.

Rated for 1A current and 1000V ac voltage use. Gold-plated phosphor bronze contacts ensure corrosion resistance. Glass filled thermoplastic housing assures strong mechanical protection. Wide operating temperature range from -65°C to 105°C.

Adjustable bridge type cover simplifies cable assembly and alignment. Supports 100 mating cycles with durable duplex plating of terminals. Polarization slots and keying prevent mismating during installation. Compatible with Quickie latch header part numbers for secure connections.

Suitable for use in industrial, instrumentation, communications, medical, and consumer electronics. Explore more IDC Connectors and reliable electronic components with EnvMart for your industrial and commercial electronics needs.
