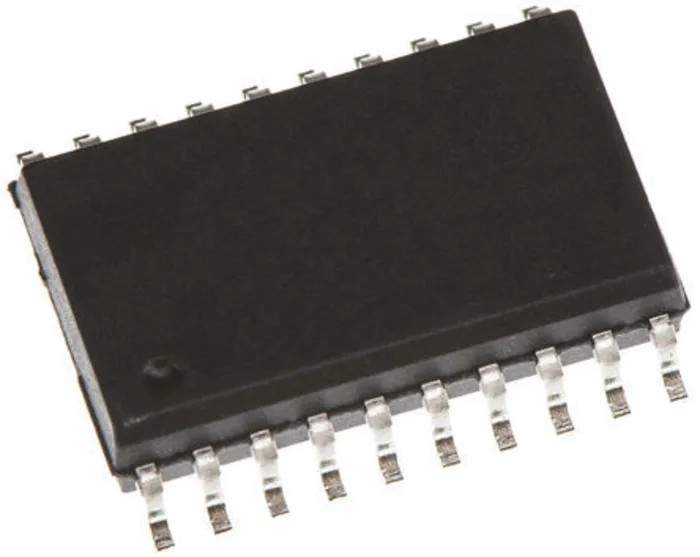

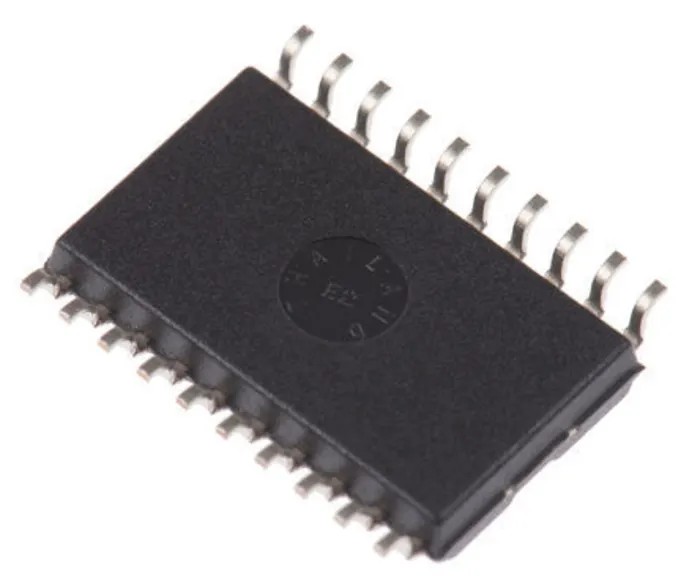

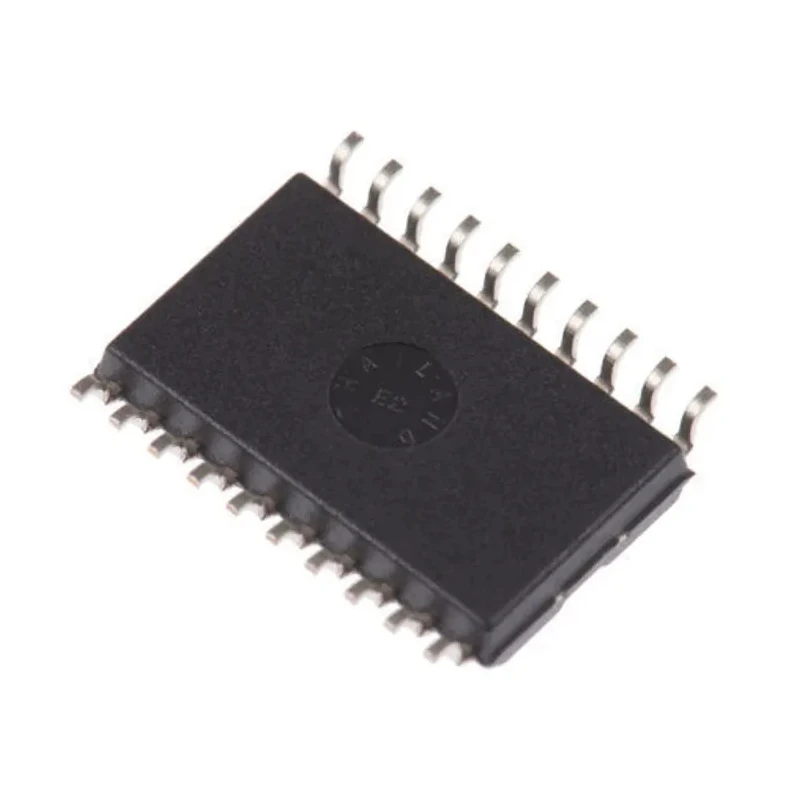

Nexperia 8 Flip Flop IC, 74HCT, D Type, 20-Pin SO, TTL Input, 20MHz Clock Frequency 74HCT273D,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 2.45mm |
| Length | 13mm |
| Model | 74HCT273D,653 |
| Mount Type | Surface |
| Compatibility | Input TTL, Output CMOS |
| Output type | D Type |
| Input Type | TTL |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| Trigger Type | Positive Edge |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74HCT |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 45ns |
| Clock frequency | 20MHz |
| Flip-Flop Type | D Flip-Flop |
Key Features
- Features 8 D-type flip-flops integrated into a single IC.
- Operates within a supply voltage range of 4.5 V to 5.5 V for stable performance.
- Built with high-speed CMOS logic technology for efficient switching.
- Designed for surface mount with a pin count of 20 in SO package.
- Maximum propagation delay time is 45 nanoseconds ensuring quick response.
- Operable in a temperature range from -40°C to 125°C for diverse environments.
- Supports positive edge-triggered operation with inverting polarity.
- Compatible with TTL input signals and CMOS output for flexible interfacing.
Product Description
Nexperia 74HCT273D,653 is an 8 flip-flop integrated circuit designed with high-speed CMOS 74HCT family technology. It features TTL input and D-type output, optimized for surface mount installation in a 20-pin Small Outline package, supporting a clock frequency up to 20 MHz.
The device operates on a voltage range from 4.5 to 5.5 volts, delivering reliable performance with a maximum propagation delay of 45 nanoseconds at specified load capacitance. It supports positive edge triggering and inverting polarity, suitable for timing and sequencing tasks in digital electronic systems.
This flip-flop IC includes eight individual D flip-flops per chip, making it highly efficient for memory and data storage applications within electronic circuits. Its operating temperature range from -40°C to 125°C allows use in industrial and harsh environments.
Typical use cases include industrial automation, digital control systems, signal processing, and embedded system design. Its compact SO packaging and surface mount compatibility enhance PCB space efficiency.
Includes 8 D-type flip-flops for versatile digital logic functions. Operating voltage: 4.5 to 5.5 V ensuring compatibility with standard logic levels. Maximum clock frequency of 20 MHz supports moderately high-speed applications.
Positive edge triggering captures data on clock rising edge. Inverting polarity suitable for specific circuit requirements. Compact 20-pin SO package for streamlined PCB layout. Temperature tolerance from -40°C to 125°C for robust industrial applications.
Complementary to TTL input and CMOS output standard logic signals. Explore more products in the Flip Flop ICs category for advanced semiconductor components suitable for electronics and electrical engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum clock frequency of 20 MHz, making it suitable for moderately high-speed applications.
It operates within a supply voltage range of 4.5 V to 5.5 V, ensuring compatibility with standard logic levels.
The maximum propagation delay time is 45 nanoseconds at specified load capacitance, ensuring quick response times.
It is compatible with TTL input signals and provides CMOS output, allowing for flexible interfacing in digital circuits.
The device can operate in a temperature range from -40°C to 125°C, making it suitable for industrial and harsh environments.
This model includes eight individual D-type flip-flops per chip, enhancing memory and data storage capabilities.
It comes in a 20-pin Small Outline (SO) package, designed for surface mount installation.
It supports positive edge triggering, capturing data on the rising edge of the clock signal.
The dimensions are 2.45 mm in height and 13 mm in length, which helps in efficient PCB layout.
This model features inverting polarity, which is suitable for specific circuit requirements.
The country of origin for this flip-flop IC is India.
Typical use cases include industrial automation, digital control systems, signal processing, and embedded system design.
