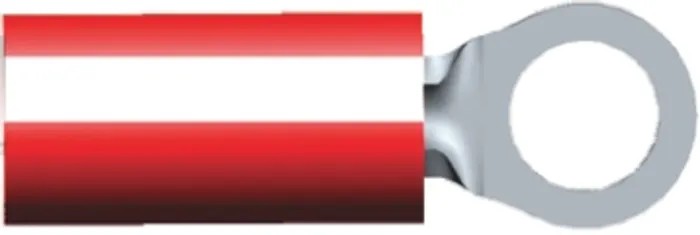

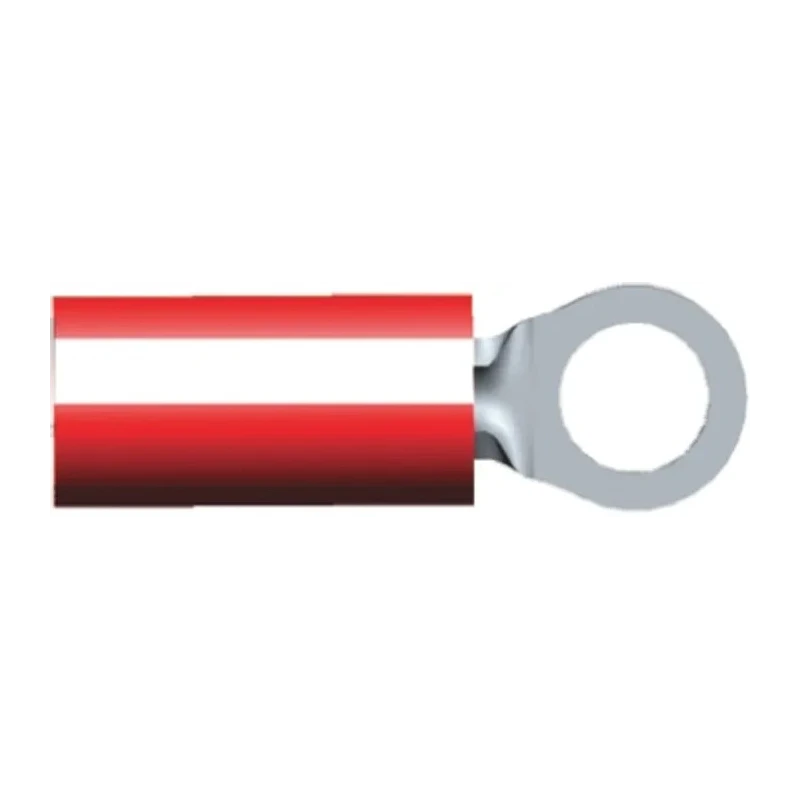

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 26 AWG to 16 AWG Wire Size, Nylon Insulation, Red White 2-36149-5

TE Connectivity 2-36149-5 PIDG Insulated Ring Terminal with M3.5 stud size supports wire gauges from 26 AWG to 16 AWG and features a high conductivity copper body with durable nylon insulation for enhanced electrical performance and mechanical strength.

This ring terminal includes a copper sleeve around the wire barrel to prevent fraying and improve insulation support. The nylon sleeve provides color-coded wire size identification and a funnelled wire entry design for quicker, secure terminations in high-volume production.

The tin-plated copper contact ensures excellent corrosion resistance and consistent electrical conductivity. With an overall length of 18.64 mm, the terminal fits tightly with an outer ring diameter of 5.54 mm and an inner ring diameter of 3.68 mm.

These terminals conform to RoHS requirements and have a maximum operating temperature rating of 105°C, making them ideal for use in industrial control systems, lighting, power supplies, panel boxes, transportation equipment, motors, and aerospace electronics.

TE Connectivity’s PIDG range is recognized for its durable construction, uniform crimping reliability, and suitability for demanding wiring environments, ensuring secure and long-lasting electrical connections.

High conductivity copper construction ensures excellent electrical performance. Nylon insulation provides color-coded, durable protection and easy wire size identification. Compatible stud size M3.5 offers secure mechanical connection in wiring applications.

Precision tin plating enhances corrosion resistance and contact reliability. Overall length of 18.64 mm for compact installation. Outer ring diameter 5.54 mm and inner ring diameter 3.68 mm for precise fit. Designed according to RoHS standards ensuring environmental compliance.

Suitable for a wide range of industrial, automotive, aerospace, and electrical panel applications. Maximum operating temperature 105°C supports demanding environments.

Choose TE Connectivity PIDG Insulated Ring Terminals for robust and reliable wire terminations in professional electronic and electrical installations. Browse the full range of power connectors and terminals at EnvMart for your industrial and commercial wiring requirements.
