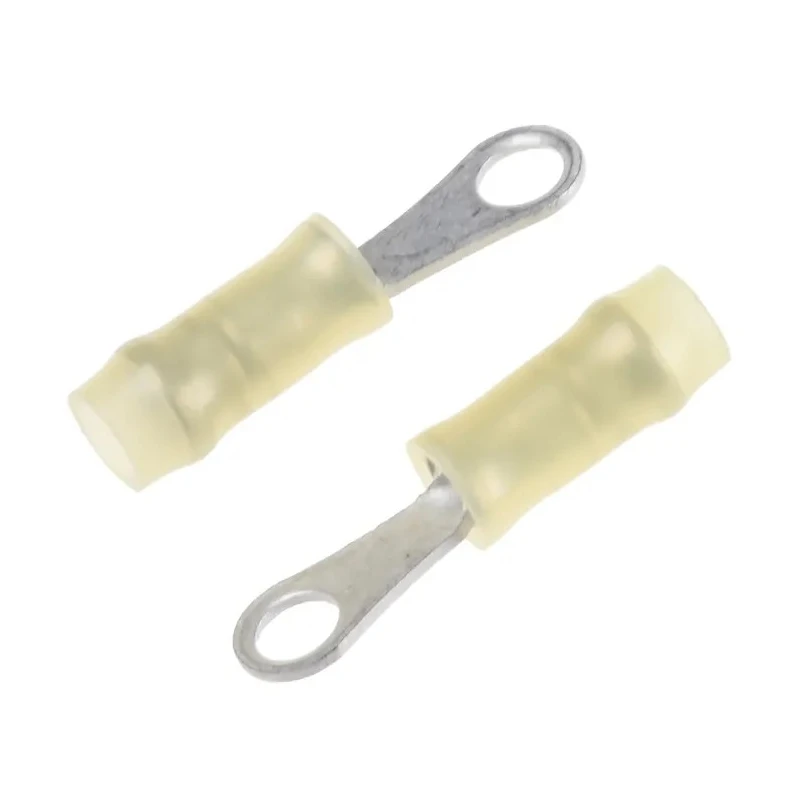

TE Connectivity PIDG Insulated Ring Terminal M2 Stud Size Yellow Nylon Insulation 26 AWG 22 AWG 329951

TE Connectivity 329951 PIDG insulated ring terminal is designed for reliable electrical connections with M2 stud size, ideal for wire sizes ranging from 26 AWG to 22 AWG. This terminal features a high conductivity copper contact with tin plating to ensure optimal conductivity and corrosion resistance. The nylon insulation is yellow-colored, aiding in wire size identification and enhancing safety during installation.

The ring terminal's copper sleeve around the wire barrel improves wire insulation support and prevents wire fraying, which contributes to enhanced mechanical strength. Serrations inside the barrel ensure strong mechanical and electrical contact after crimping, providing dependable performance in demanding circuit environments.

With a compact design size of 15.62 mm length and thickness of 0.79 mm, the terminal supports high-temperature operations up to 105°C, making it suitable for demanding industrial, manufacturing, HVAC, aerospace, automotive, and control panel applications. The funnelled wire entry allows for fast, reliable wire insertion, enhancing production efficiency.

Compliant with RoHS environmental standards, the 329951 series offers consistent performance with color-coded insulation for quick wire gauge recognition. Typical applications include instrumentation, lighting, power supplies, motors, aerospace equipment, appliances, and transportation systems.

Manufactured from high conductivity copper body. Copper sleeve enhances wire insulation support. Serrated barrel ensures strong contact after crimping. Yellow nylon insulation sleeve for wire size identification. Funnelled wire entry improves production efficiency.

Meets RoHS environmental compliance standards. Suitable for use in aerospace, instrumentation, and control systems. Designed for wire sizes 26 AWG to 22 AWG and M2 stud size. Maximum operating temperature of 105°C.
