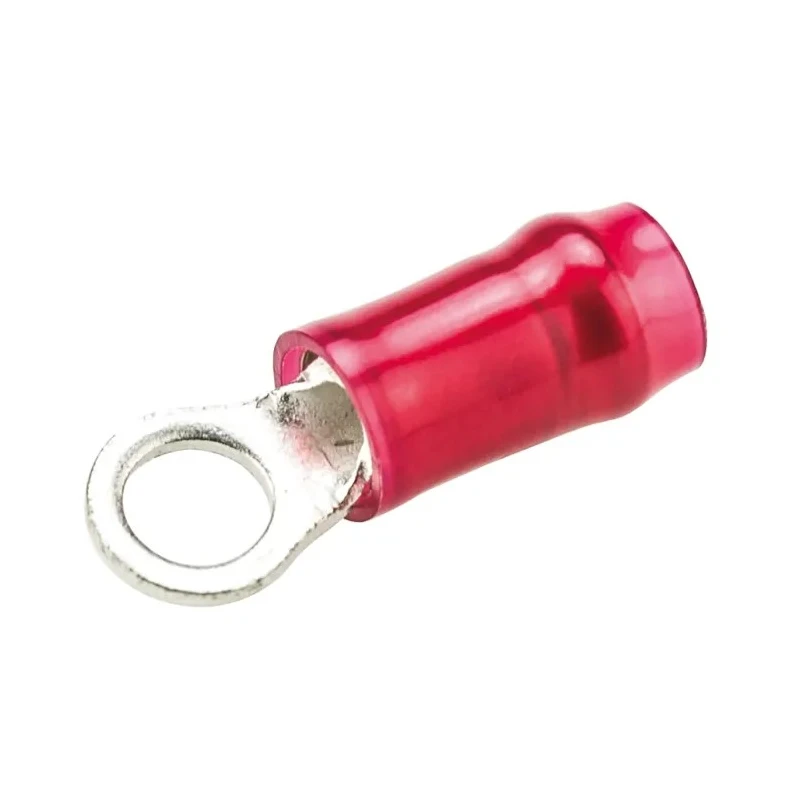

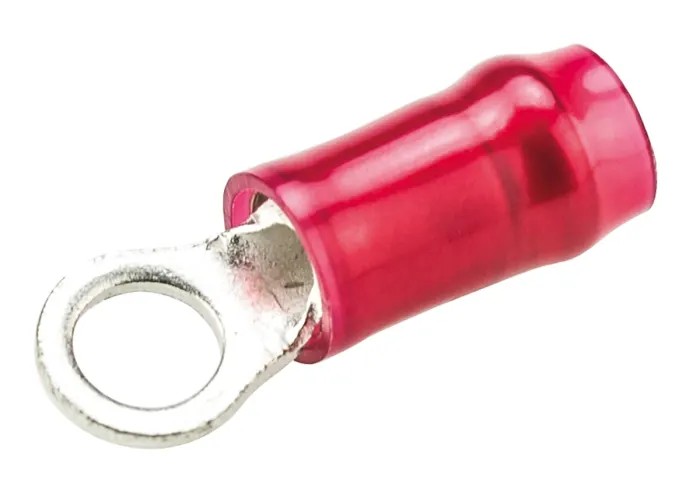

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG 16 AWG Wire Size Red 36150

TE Connectivity 36150 PIDG Insulated Ring Terminal is a high-quality ring tongue wire crimp terminal designed for industrial and commercial electrical wiring applications. It supports wire sizes from 22 AWG to 16 AWG and fits M3.5 stud size connections, providing reliable and uniform crimps.

The terminal features a precision-formed, high conductivity copper body and barrel with serrations to guarantee excellent contact and tensile strength after crimping. Surrounding the wire barrel, the copper sleeve improves insulation support preventing wire fraying and enhancing durability. The outer nylon insulation, coloured red, facilitates quick wire size and tooling recognition.

The funnelled entry design reduces wire strand turning back, enabling fast insertion suitable for high-speed manufacturing processes. This terminal maintains stable electrical and mechanical connections even in harsh operational environments, withstanding temperatures up to 105°C.

Ideal for applications such as instrumentation, control systems, lighting, power supplies, panel boxes, transportation equipment, lifting mechanisms, motors, aerospace, and household appliances. The TE Connectivity PIDG series meets or exceeds the requirements of military standards MIL-T-7928 Type II, Class 1 and 2, ensuring consistent reliability.

High conductivity copper body offers durable electrical connections. Copper sleeve provides excellent insulation support, reducing wire fraying. Serrated wire barrel enhances contact strength and tensile robustness. Red nylon insulation sleeve for quick wire size identification.

Funnelled wire entry speeds wire insertion in production. Suitable for a broad range of industrial applications meeting military standards. Explore the full range of TE Connectivity Ring Terminals and power connectors on EnvMart for premium quality and trusted performance.
