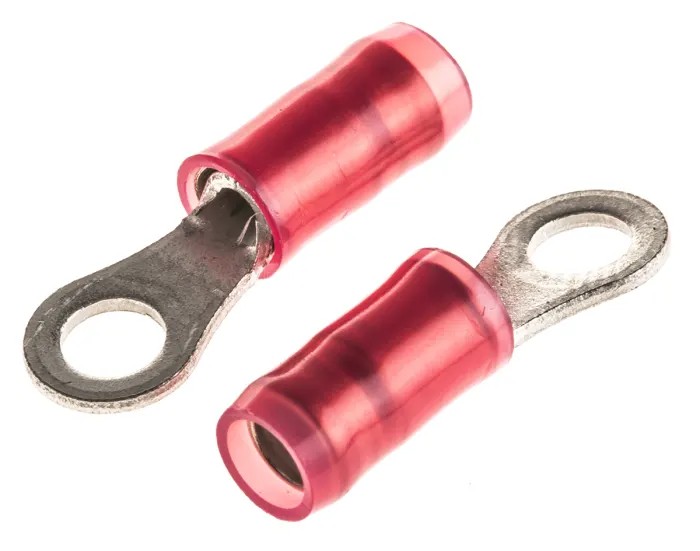

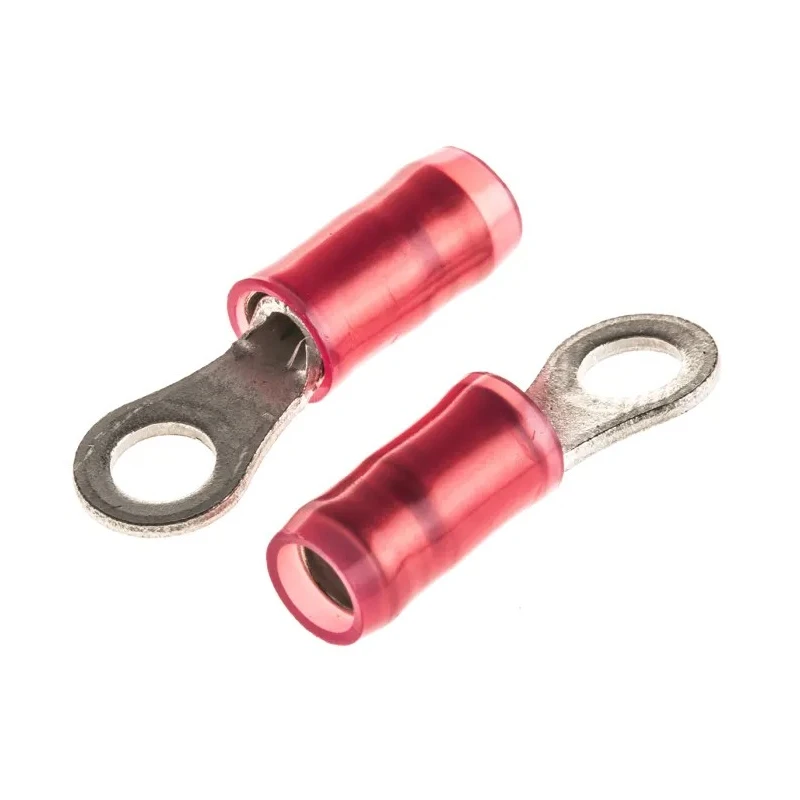

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Nylon Red 51863

TE Connectivity 51863 PIDG Insulated Ring Terminal is designed for dependable electrical connections in industrial and commercial wiring applications. This insulated ring terminal accommodates wire sizes ranging from 22 AWG to 16 AWG and uses an M3.5 stud size, making it ideal for precise and secure connections.

The terminal features a high conductivity copper body and barrel, optimized for uniform reliability even in demanding circuit environments. Serrations inside the wire barrel maximize contact area and tensile strength post-crimp. A copper sleeve surrounds the wire barrel to reinforce insulation and minimize wire fraying, while the nylon insulation sleeve, colored red, facilitates quick wire size identification.

Its funnelled wire entry design supports efficient and fast wire insertion, suitable for high-speed production lines. The construction and the specialized tooling for these PIDG terminals guarantee a consistent, reliable crimp, essential in instrumentation, control systems, lighting installations, power supplies, panel boxes, transportation, motors, aerospace, and appliance manufacturing.

The external dimensions include an outer ring diameter of 6.35 mm, inner ring diameter of 3.68 mm, and an overall length of 19.86 mm, ensuring compatibility with standard panel and connector stud sizes. Compliance with MIL-T-7928 Type II Class 1 and 2 standards underscores its suitability for rigorous industrial use.

Constructed with high conductivity copper body for superior electrical performance. Features nylon insulation with color coding for easy wire size identification. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

The copper sleeve inside the barrel supports wire insulation and prevents fraying. Funnelled wire entry allows easy and fast wire insertion during production. Suitable for instrumentation, control panels, lighting, power supplies, and aerospace applications.

Complies with MIL-T-7928 Type II Class 1 and 2 standards. Dimensions: Outer ring diameter 6.35 mm, inner ring diameter 3.68 mm, overall length 19.86 mm. Red nylon insulation sleeve for wire size identification.

This PIDG ring terminal set forms an essential component in the assembly of electric connections for industrial, laboratory, HVAC, manufacturing, and transportation wiring needs. Explore more in our Power Connectors and Ring Terminal categories at EnvMart.
