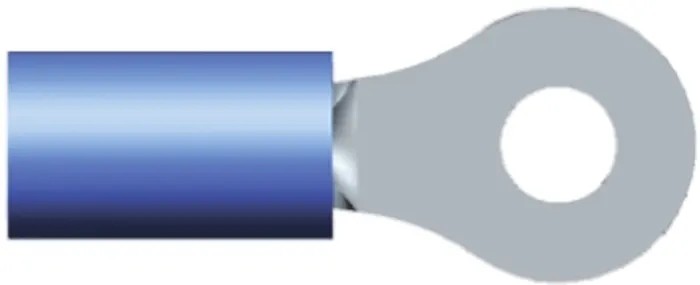

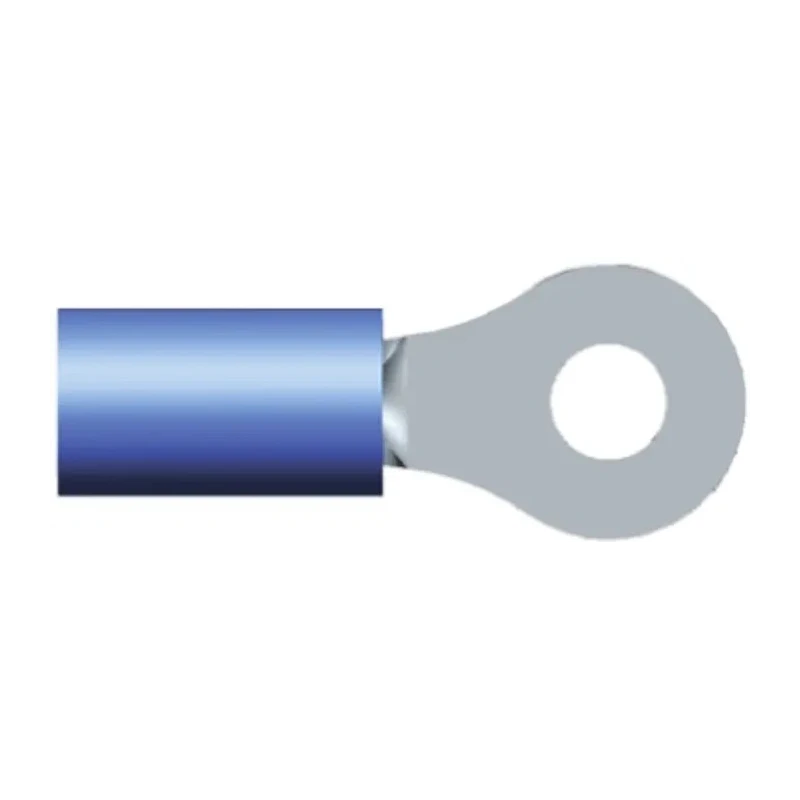

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size Blue 36157
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 36157 |
| Insulation | Insulated |
| Overall Length | 21.82mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS, CSA LR7189, UL E13288 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper body for reliable electrical performance.
- Insulated with durable nylon material for enhanced wire protection.
- Suitable for wire sizes from 16 AWG (1mm²) to 14 AWG (2.6mm²).
- Designed for secure crimping with serrated wire barrel to prevent loosening.
- Rated for maximum operating temperature of 105°C for durability in varying environments.
- Features tin-plated copper contacts to resist corrosion and improve conductivity.
- Compact overall length of 21.82 mm fits in tight electrical assemblies.
- Color-coded blue sleeve for quick wire size and tooling identification.
Product Description
TE Connectivity 36157 PIDG Insulated Ring Terminal is engineered for reliable electrical connections in industrial, automotive, and aerospace applications. Featuring a high conductivity copper body with tin plating, this terminal provides excellent contact and corrosion resistance. Its insulated design with a blue nylon sleeve offers both mechanical protection and color-coded wire size identification.
The terminal supports wire sizes ranging from 16 AWG (1 mm²) up to 14 AWG (2.6 mm²) and is compatible with an M3.5 stud size, making it ideal for control panels, power supplies, and equipment wiring. Its serrated wire barrel ensures a strong, durable crimp connection and prevents wire fraying, supporting dependable electrical performance.
The product meets stringent industry standards including RoHS, CSA LR7189, and UL E13288, validating its compliance for quality and safety. Designed to operate at temperatures up to 105°C, this terminal withstands demanding operating conditions often encountered in transportation, lifting equipment, motors, instrumentation, and appliances.
The pre-insulated diamond grip (PIDG) construction streamlines installation and ensures uniform crimping, boosting assembly speed in manufacturing or maintenance tasks. The funnelled wire entry supports quick wire insertion, reducing wiring time without sacrificing connection integrity.
Constructed with high conductivity copper body for reliable electrical performance. Insulated nylon sleeve with blue color coding for wire size identification. Serrations inside the wire barrel enable maximum tensile strength after crimping.
Supports wire sizes 16 AWG (minimum) to 14 AWG (maximum). Compatible with M3.5 stud size for secure mounting. Contact plating with tin to resist corrosion and enhance conductivity. Rated for maximum operating temperature of 105°C for durability.
Complies with RoHS, CSA LR7189, and UL E13288 standards. Funnelled wire entry design for fast wire insertion and uniform crimp.
This TE Connectivity PIDG Insulated Ring Terminal model 36157 provides a versatile and robust solution for electrical wiring applications across industrial, laboratory, HVAC, manufacturing, and automotive sectors. Its reliable crimp and insulation properties help maintain circuit integrity while facilitating efficient assembly operations. Browse more Ring Terminals and power connector solutions at EnvMart for comprehensive electrical connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C, allowing it to withstand demanding environments.
This terminal supports wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
It is compatible with an M3.5 stud size, ensuring secure mounting.
The contact material is copper, which is tin-plated to enhance conductivity and resist corrosion.
The overall length of this model is 21.82 mm, making it suitable for tight electrical assemblies.
This terminal complies with RoHS, CSA LR7189, and UL E13288 standards, ensuring quality and safety.
The insulation material is nylon, which provides mechanical protection and color-coded identification.
The serrated wire barrel design prevents loosening and ensures a strong, durable crimp connection after installation.
The outer ring diameter is 7.54 mm, and the inner ring diameter is 3.68 mm.
This model is suitable for applications in industrial, automotive, and aerospace sectors, among others.
The funnelled wire entry design allows for quick wire insertion, reducing wiring time while maintaining connection integrity.
The thickness of this terminal is 0.79 mm, contributing to its compact design.
