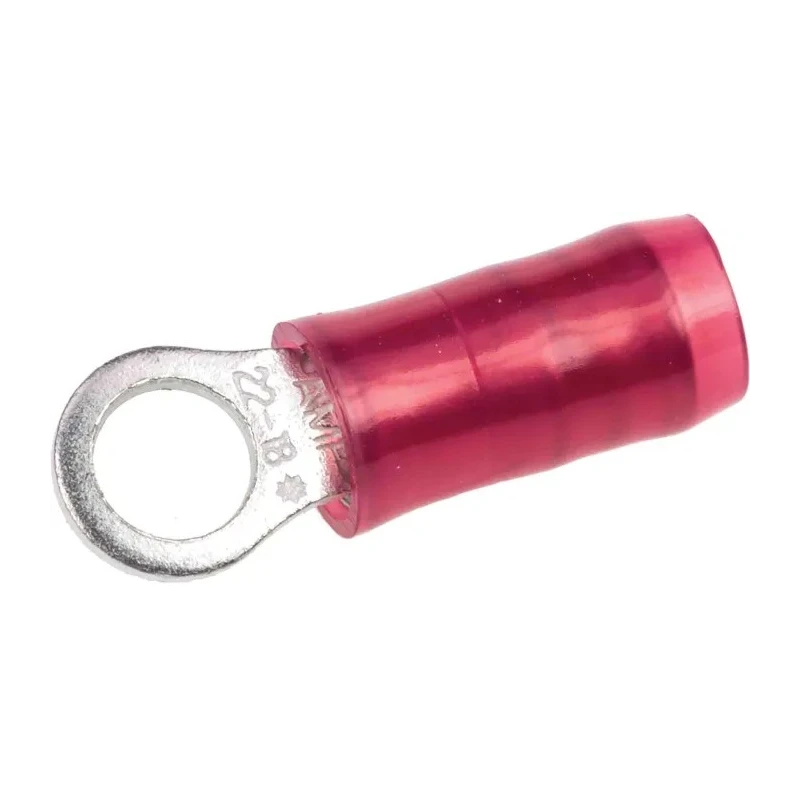

TE Connectivity PLASTI-GRIP Insulated Ring Terminal Red M4 Stud Size 22 AWG to 16 AWG 20.55mm Length 32948

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal Red M4 Stud Size 22 AWG to 16 AWG 20.55mm Length 32948

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal Red M4 Stud Size 22 AWG to 16 AWG 20.55mm Length 32948
Brand: TE Connectivity
SKU: 205529
Price: 0.68 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
THICKNESS	0.84mm
Model	32948
Insulation	Insulated
Overall Length	20.55mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Polyvinyl Chloride
Standards/Approvals	UL E13288, RoHS, CSA LR7189
Contact Plating	Tin
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	7.14mm
Inner Ring Diameter	4.34mm
Stud Size	M4
RS PRO Insulated Ring Terminal, M4 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	RS PRO

Key Features

The ring terminal features a 20.55 mm overall length for easy installation.
It has a durable red polyvinyl chloride insulation for electrical protection.
Copper contact material is tin plated to enhance corrosion resistance.
Compatible with wires ranging from 0.26 mm² to 1.65 mm² cross-sectional area.
Outer ring diameter measures 7.14 mm and inner ring diameter is 4.34 mm.
Thickness of the terminal is 0.84 mm ensuring robust mechanical strength.
Maximum operating temperature rated at 105°C suitable for demanding electrical applications.
UL E13288, RoHS, and CSA LR7189 approved ensuring quality and safety compliance.

Product Description

TE Connectivity 32948 PLASTI-GRIP insulated ring terminal is a high quality wire crimp terminal designed for electrical connections requiring secure and reliable termination. It is specifically engineered with a metal copper contact that is tin plated to provide superior conductivity and corrosion resistance. The terminal includes a red-colored polyvinyl chloride insulation sleeve rated at 94V-0 for excellent dielectric strength.

The ring terminal fits M4 stud sizes and supports wire gauges from 22 AWG to 16 AWG, corresponding to 0.26 mm² to 1.65 mm² cross-sectional wire areas. With an overall length of 20.55 mm, outer ring diameter of 7.14 mm, and inner ring diameter of 4.34 mm, this component ensures a precise fit for electrical systems. The thickness of 0.84 mm contributes to the mechanical durability during installation and operation.

The inner barrel is serrated, maximizing electrical contact and tensile strength after crimping, while the funnel entry aids in easy wire insertion. Rated for maximum operating temperatures up to 105°C, the terminal is suitable for use in industrial, electronic, power distribution, and automotive applications requiring reliable wire-to-stud connections.

The terminal meets UL E13288, RoHS, and CSA LR7189 standards, guaranteeing safety and compliance for diverse environments. Its vinyl insulation offers high electrical resistance and safeguards against environmental factors.

The copper tin plated contact ensures excellent electrical continuity with minimal resistance. Ideal for manufacturing, industrial automation, maintenance, and repair tasks demanding dependable terminal solutions. The red insulation color allows easy wire gauge identification according to electrical standards.

This PLASTI-GRIP Ring Terminal is a reliable choice for professional electricians, engineers, and technicians. Explore the reliable and certified TE Connectivity product range in EnvMart's electronics and electrical segments for all your wire terminal needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this ring terminal is rated at 105°C, making it suitable for demanding electrical applications.

This terminal is compatible with wire gauges from 22 AWG to 16 AWG, corresponding to a cross-sectional area of 0.26 mm² to 1.65 mm².

The overall length of the terminal is 20.55 mm, with an outer ring diameter of 7.14 mm and an inner ring diameter of 4.34 mm.

The contact material of this terminal is copper, which is tin plated to enhance corrosion resistance and conductivity.

The terminal features red polyvinyl chloride (PVC) insulation, which provides excellent dielectric strength and electrical protection.

This terminal meets UL E13288, RoHS, and CSA LR7189 standards, ensuring quality and safety compliance.

The thickness of the terminal is 0.84 mm, contributing to its mechanical strength during installation and operation.

This ring terminal is designed to fit M4 stud sizes, ensuring a secure connection.

This terminal is suitable for industrial, electronic, power distribution, and automotive applications requiring reliable wire-to-stud connections.

The inner barrel of the terminal is serrated, maximizing electrical contact and tensile strength after crimping, while the funnel entry aids in easy wire insertion.

The insulation on this terminal is red, which allows for easy wire gauge identification according to electrical standards.

This terminal is manufactured in India, ensuring compliance with various quality standards.
