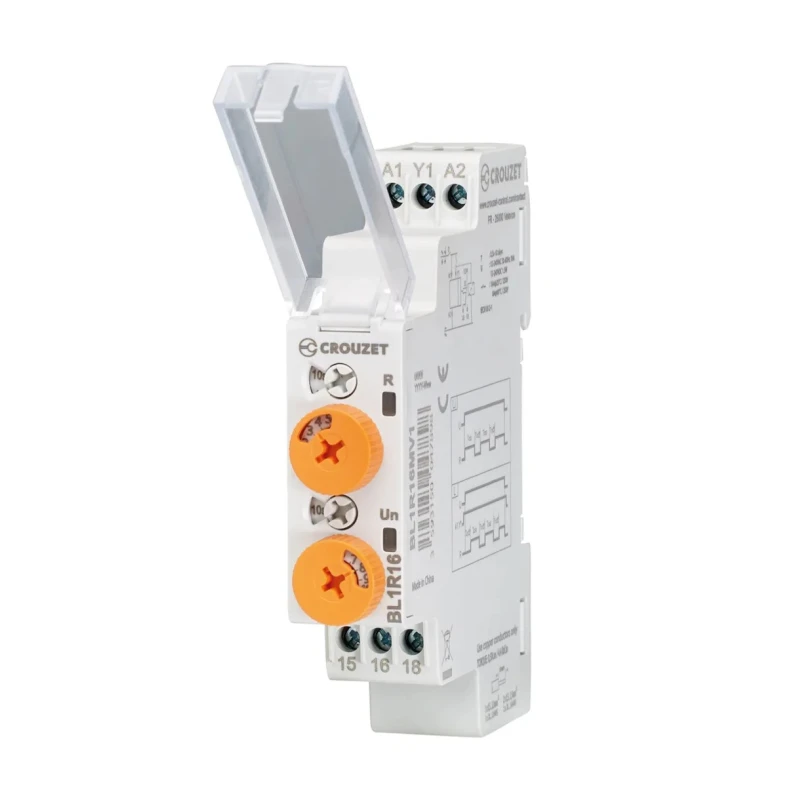

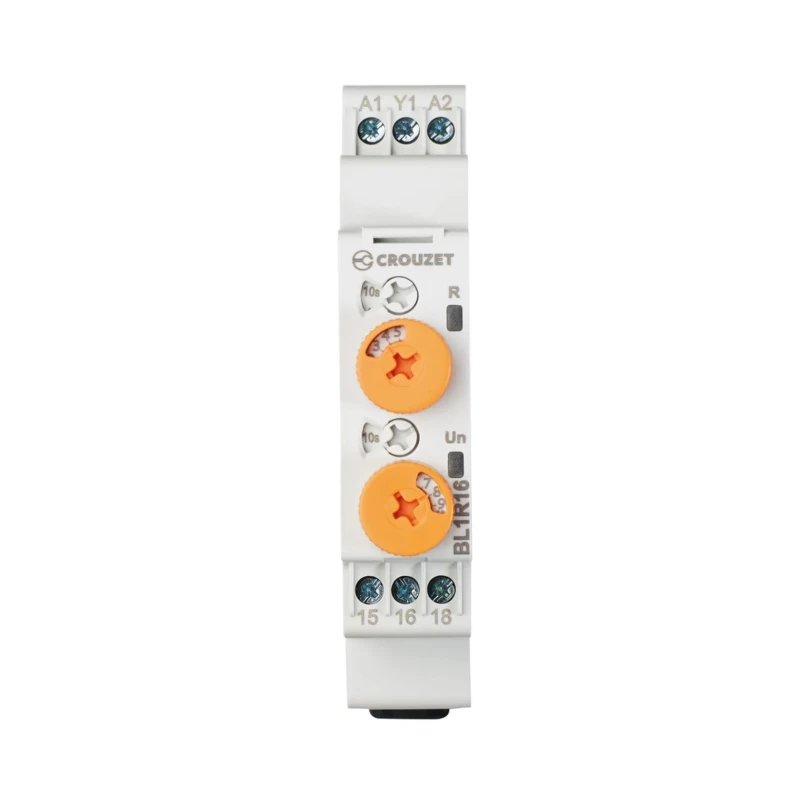

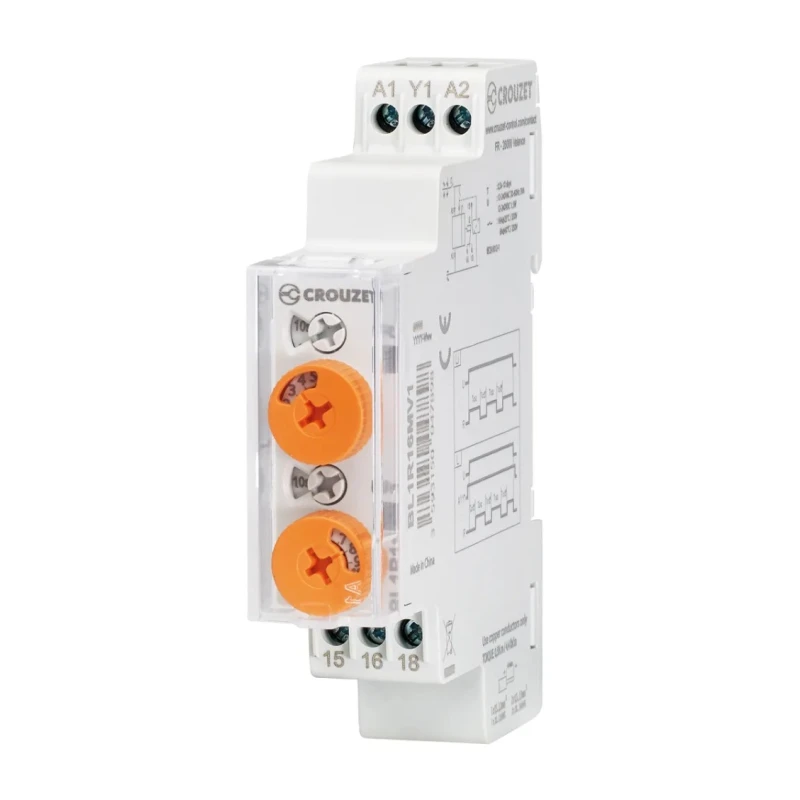

Crouzet Syr-Line Series DIN Rail Timer Relay, 1-Contact, 12 to 240 V dc/ac, 250 V Switching Voltage, 16A Contact BL1R16MV1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crouzet |
| Height | 60mm |
| Length | 90mm |
| Model | BL1R16MV1 |
| IP Rating | IP40, IP20 |
| Mode | Repeat Cycle |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | Syr-Line |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.5 s to 10 Days |
| Terminal type | Screw |
| Standards/Approvals | CE, CCC |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V |
| Contact Current | 16A |
| Supply DC Voltage | 12 to 240 V dc |
| Supply AC Voltage | 12, 240V ac |
Key Features
- Compact DIN Rail mounting design with slim 17.5 mm width suited for modular panels.
- Single timer function with 1 SPDT contact configuration ensuring reliable switching.
- Rated for 16 A contact current at switching voltage of 250 V suitable for industrial applications.
- Operating temperature range from -20°C to 60°C supports various environmental conditions.
- Equipped with two LED indicators for easy status monitoring and setting adjustments.
- Screw terminal connection provides secure wiring and installation.
- Compliance with CE and CCC standards for quality and safety assurance.
- Repeat cycle mode supports versatile automation timing functions.
Product Description
Crouzet BL1R16MV1 DIN Rail Timer Relay BL1R16MV1 features a multi-voltage supply range of 12 to 240 V dc and 12 V to 240 V ac with a switching voltage of 250 V and 16 A contact current. It is designed for precise timing applications requiring 0.5 seconds to 10 days range with a single timer function and SPDT contact configuration.
This relay is housed in a compact 17.5 mm slim modular design suitable for DIN Rail mounting, making it ideal for control panels in industrial automation, electrical systems, and manufacturing settings. The operating temperature from -20°C to 60°C enables it to perform reliably under varying environmental conditions.
The product is equipped with screw terminals for robust and secure electrical connections and features two LED indicators for visual feedback during operation and configuration. It supports repeat cycle mode for continuous timing applications.
Crouzet Syr-Line Series relays are known for their durability and versatility, meeting CE and CCC standards, ensuring safety and compliance for industrial use cases such as automation equipment, control cabinets, HVAC systems, and general electrical installations.
Compact DIN Rail mounting with 17.5 mm width. Multi-voltage supply 12-240 V dc/ac. Time range from 0.5 seconds to 10 days. Single timer function with SPDT contact. Rated at 16 A contact current and 250 V switching voltage.
Operating temperature -20°C to 60°C. Repeat cycle operating mode. Screw terminal connections. CE and CCC certified. Explore the Crouzet Syr-Line Series and other industrial Timer Relays on EnvMart for reliable automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has a time range from 0.5 seconds to 10 days, allowing for versatile timing applications.
It features a single timer function with an SPDT (Single Pole Double Throw) contact configuration.
This model is rated for a maximum contact current of 16 A and a switching voltage of 250 V.
It accepts a multi-voltage supply ranging from 12 to 240 V for both DC and AC applications.
The relay has a compact design with dimensions of 90 mm in length, 60 mm in height, and 17.5 mm in width.
The operating temperature range is from -20°C to 60°C, making it suitable for various environmental conditions.
This unit is designed for DIN Rail mounting, which is ideal for modular panels in industrial applications.
It features screw terminal connections for secure wiring and installation.
It complies with CE and CCC standards, ensuring quality and safety for industrial use.
Yes, it supports a repeat cycle mode for continuous timing applications.
The timer relay has an IP rating of IP40 and IP20, indicating its level of protection against dust and moisture.
This model has one contact, suitable for its designated applications.
