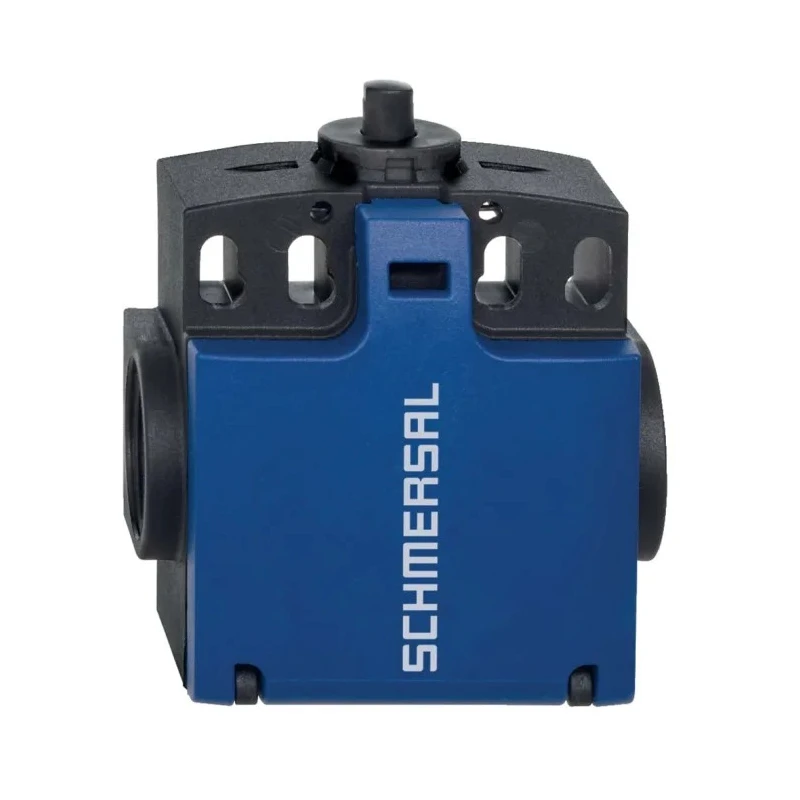

Schmersal PS226-Z12-S200 Series Plunger Limit Switch 1 NO/2 NC IP66 IP67 Fibreglass Reinforced Plastic Housing 24V 103015050
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 33mm |
| IP Rating | IP66, IP67 |
| Width | 59mm |
| Housing Material | Fibreglass Reinforced, Plastic |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS226-Z12-S200 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 15.3A |
| Terminal type | Screw |
| Hazardous Area Certification | CCC, cULus, EAC |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 2 x (M20 x 1.5) |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Constructed with fibreglass reinforced plastic housing for durability.
- Snap action contact type supports switching current up to 15.3 A.
- Suitable for operating voltages of 24V DC and 240V AC.
- Designed to withstand extreme temperatures from -30°C to 80°C.
- Compact dimensions of 33mm length and 59mm width enable easy integration.
- Certified to IEC 60947-5-1 and ISO 13849-1 standards ensuring regulatory compliance.
- Guaranteed mechanical life of 10 million operations for long service life.
- Features conduit entries compatible with 2 x (M20 x 1.5) fittings.
Product Description
Schmersal 103015050 is a high-quality plunger limit switch designed for precise position and limit monitoring in industrial automation applications. Featuring a robust fibreglass reinforced plastic housing, this switch provides excellent protection with IP66 and IP67 ingress ratings, making it suitable for harsh environments requiring resistance to dust and water.
The device incorporates a snap action contact mechanism with one Normally Open (NO) and two Normally Closed (NC) contacts, facilitating versatile switching configurations. It supports switching currents up to 15.3 A and functions smoothly with switching voltages of 24V DC and 240V AC, ensuring compatibility with various control systems.
With compact dimensions of 33mm by 59mm, the switch is easy to install in tight spaces. It operates reliably across a wide temperature range from -30°C to 80°C, catering to demanding industrial conditions. The mechanical life minimum of 10 million operations guarantees durability and sustained performance over extensive use.
The product complies with international standards IEC 60947-5-1 and ISO 13849-1 and holds hazardous area certifications including CCC, cULus, and EAC, demonstrating adherence to safety and quality norms. The conduit entry support for 2 x (M20 x 1.5) threaded fittings enhances installation flexibility.
Constructed with fibreglass reinforced plastic housing for durability. Snap action contact type supports switching current up to 15.3 A. Suitable for operating voltages of 24V DC and 240V AC. Designed to withstand extreme temperatures from -30°C to 80°C.
Compact dimensions of 33mm length and 59mm width enable easy integration. Certified to IEC 60947-5-1 and ISO 13849-1 standards ensuring regulatory compliance. Guaranteed mechanical life of 10 million operations for long service life.
Features conduit entries compatible with 2 x (M20 x 1.5) fittings.
This Schmersal plunger limit switch is ideal for use in electrical, automation, manufacturing, and industrial control systems requiring precise and reliable limit signaling. Browse EnvMart for more Schmersal Limit Switches and compatible automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 15.3 A.
It supports switching voltages of 24V DC and 240V AC.
This model operates reliably within a temperature range of -30°C to 80°C.
The dimensions are 33mm in length and 59mm in width, allowing for easy integration into tight spaces.
It features a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts with a snap action mechanism.
The guaranteed mechanical life of this unit is a minimum of 10 million operations.
It is certified to IEC 60947-5-1 and ISO 13849-1 standards, and holds hazardous area certifications including CCC, cULus, and EAC.
The housing is made from fibreglass reinforced plastic, providing durability and protection.
This limit switch uses a plunger actuator type.
It has an ingress protection rating of IP66 and IP67, making it suitable for harsh environments.
It features conduit entries compatible with 2 x (M20 x 1.5) fittings, enhancing installation flexibility.
The contact type is snap action, which allows for quick and reliable switching.
