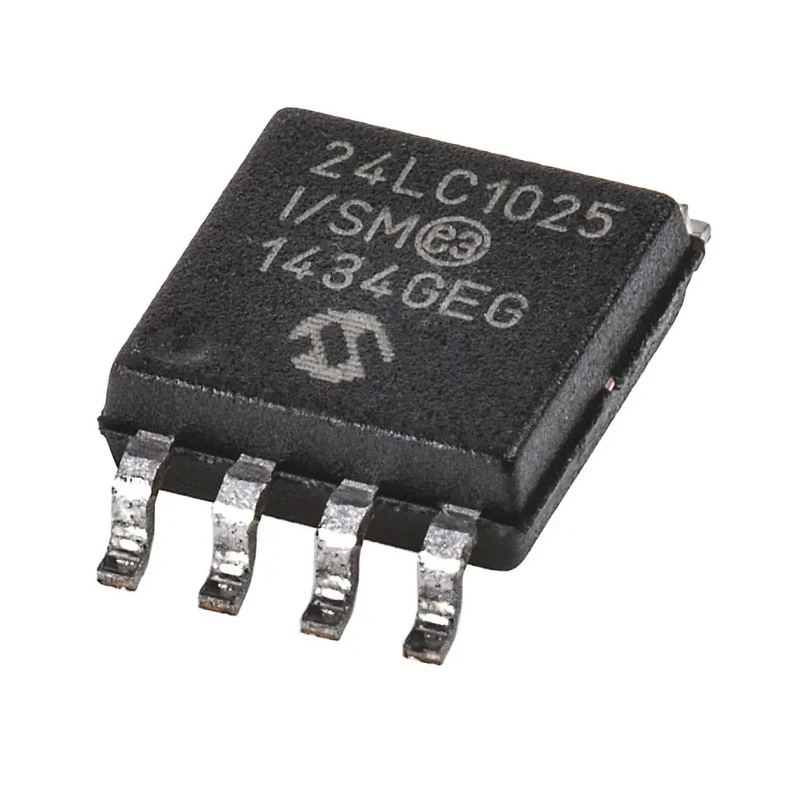

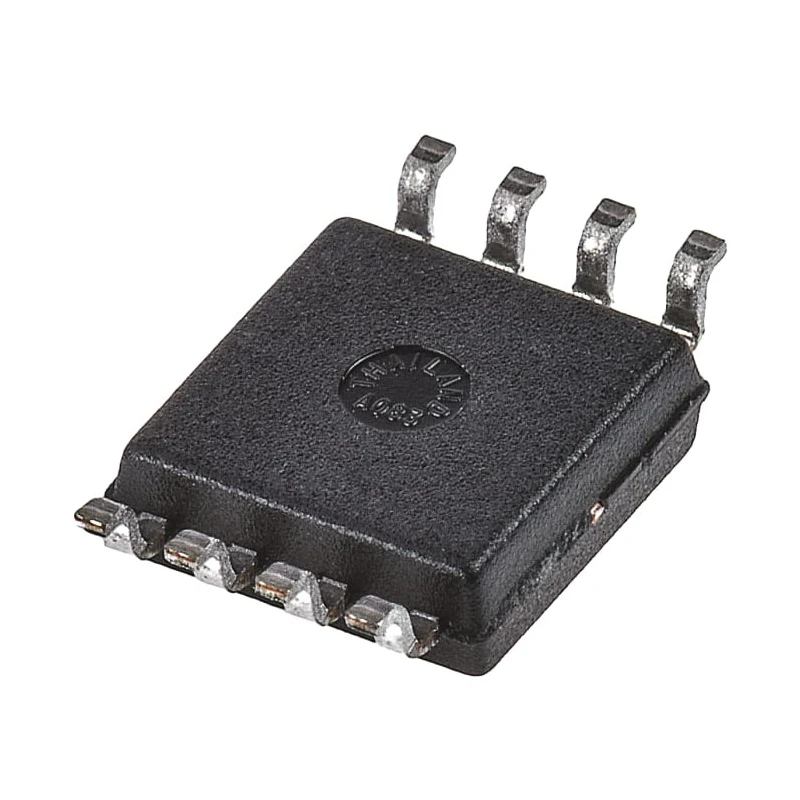

Microchip 1 MB Serial EEPROM 900 ns 8-Pin SOIJ Serial-I2C 24LC1025-I/SM

Microchip 24LC1025-I/SM is a high-performance 1 MB Serial EEPROM designed to deliver reliable data storage with a fast access time of 900 ns. Packaged in an 8-pin SOIJ form factor, this Serial-I2C compatible EEPROM supports a maximum clock frequency of 400 kHz, making it suited for industrial and automotive data storage applications. It operates over a wide supply voltage range from 2.5 V to 5.5 V and maintains data retention for up to 200 years, ensuring long-term data integrity.

This EEPROM features a low supply current of 450 μA, optimizing power efficiency for embedded systems and portable electronics. It withstands extreme operating temperatures from -40°C to 85°C, making it reliable for use in harsh environments. Conforming to the automotive standard AEC-Q100, it is suitable for automotive system integration and other demanding industrial use cases.

The chip's compact dimensions, specifically a length of 5.26 mm and width of 7.94 mm, enable integration in space-sensitive electronic assemblies. The device has a memory organisation of 128K x 8 bit, providing 128 words of 8 bits, which allows efficient serial access to data. Mount type is surface mount, facilitating easy PCB assembly.

Common industrial applications for this Serial EEPROM include manufacturing automation, embedded systems, security modules, and automotive electronics where robust and reliable data storage is critical. The device is packaged ready for insertion into machinery, aiding in improved production efficiency and component standardization.

Memory size of 1 MB suitable for industrial data storage. Serial-I2C interface supports communication up to 400 kHz clock frequency. Package type is SOIJ designed for surface mount applications. Operating temperature range from -40°C to 85°C for harsh environments.

Low supply voltage range between 2.5 V and 5.5 V enhances power flexibility. Data retention guaranteed for 200 years ensuring long-term reliability. Supply current of 450 µA optimized for low power consumption. Automotive AEC-Q100 compliant for automotive system applications.

Compact dimensions of 5.26 mm length and 7.94 mm width for space-constrained designs. 128K x 8 bit organisation providing 128 words of 8 bits each. Explore EnvMart for additional semiconductor and memory chip solutions from leading brands focusing on industrial, automotive, and commercial applications.
