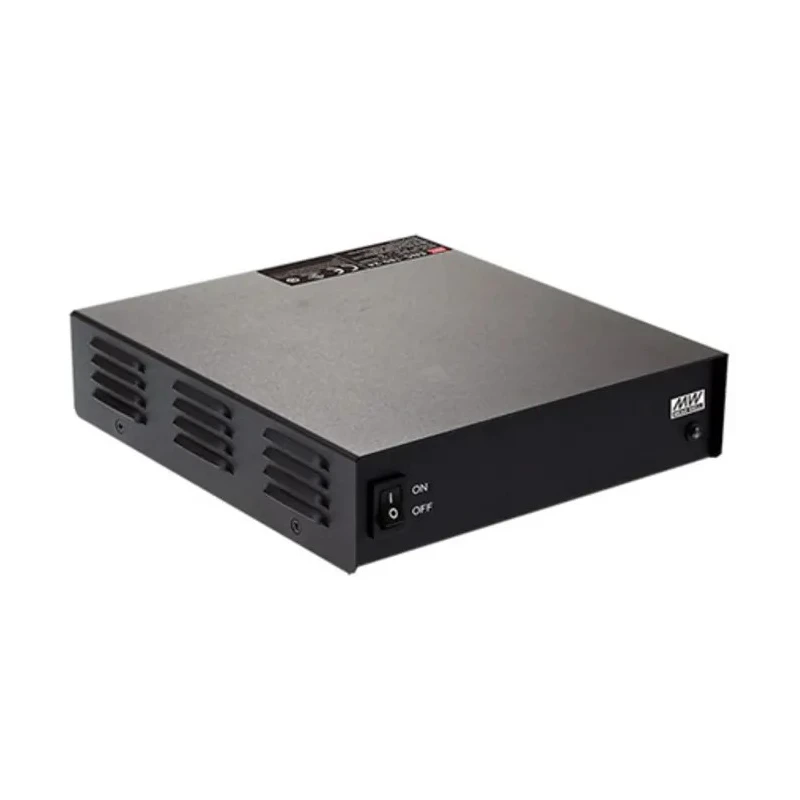

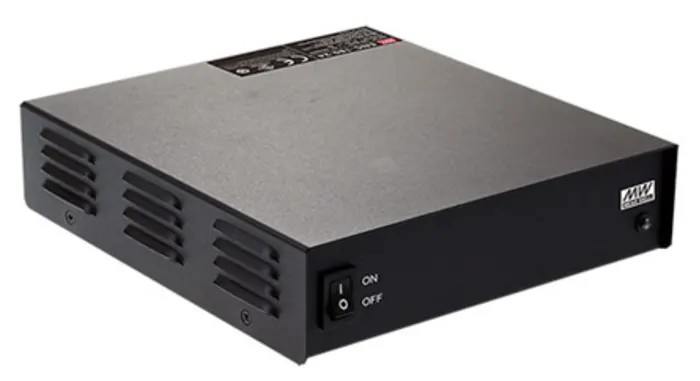

MEAN WELL AC/DC Adapter Universal Input 90-264V AC 27.6V DC 13A Output ENP-360-24

MEAN WELL ENP-360-24 AC/DC Adapter is a desktop power supply designed for communication-related industrial applications. It supports an input voltage range from 90V to 264V AC and provides a stable DC output of 27.6 volts at a maximum current of 13 amperes, delivering up to 360 watts of power. The unit features a rugged design with dimensions of 192mm length, 178mm width, and 45.5mm depth, cooled by free air convection and a fanless construction for quiet, maintenance-free operation.

This adapter includes multiple protection features such as overload, overvoltage, overtemperature, and short circuit safeguards, ensuring safe and reliable performance in harsh environments. The built-in power factor correction enhances electrical efficiency, and the device meets rigorous safety standards including CE, UL 60950-1, and IEC 60950-1 certifications. Energy efficiency complies with VI Level, ranging between 91% and 94% depending on the specific model variation.

The ENP-360 series is widely used in communication system components such as TV antenna installations, surveillance setups, electric scooter chargers, and land mobile radio systems. It operates efficiently within an ambient temperature range from -30°C to +70°C, making it suitable for diverse industrial conditions.

Universal AC input voltage from 90 to 264V for global compatibility. High maximum output current of 13 amperes ensuring reliable power delivery. Fanless design enabling quiet operation and minimal maintenance. Designed to operate efficiently up to 70°C ambient temperature.

Compact dimensions of 192mm length, 178mm width, and 45.5mm depth for space-saving installation. Overload, overvoltage, overtemperature, and short circuit protection for enhanced device safety. Integrated power factor correction function to improve energy efficiency.

Compliance with CE, UL 60950-1, and IEC 60950-1 safety standards for industrial use. Efficient performance with 91% to 94% energy efficiency depending on model. Ideal for communication equipment including TV antennas, surveillance systems, and land mobile radios.

Please note that input power leads are not supplied with this product and must be ordered separately. This product supports mounting within communication and industrial equipment where stable and efficient power supply is critical.
