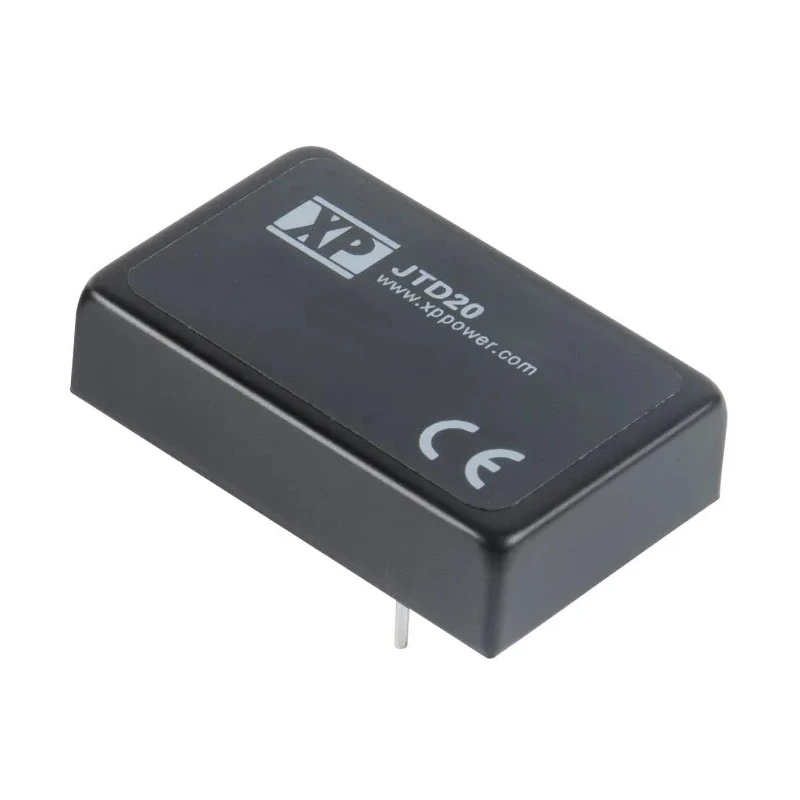

XP Power Regulated Isolated DC/DC Converter 12V DC 1.67A 36V DC Input 9V Input 20W Through Hole JTD20
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTD20 DC/DC Converter, 12V dc/ 1 |
| Brand | XP Power |
| Efficiency | 88.5% |
| Length | 40.64mm |
| Model | JTD20 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTD20 |
| Maximum Operating Temperature | 100°C |
| Package Type | 1.6 x 1 in |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- The converter features a compact 1.6 x 1 inch through-hole package design suitable for PCB mounting.
- The unit operates efficiently at 88.5% with low heat dissipation.
- Designed for industrial environments, it operates from -40°C up to 100°C ambient temperature.
- Provides solid 1.6 kV DC isolation ensuring electrical safety and noise immunity.
- Includes remote On/Off control functionality for system integration.
- Single output regulated design delivering stable 12V DC output voltage.
- Suitable for power supply and distribution applications in electronics and industrial systems.
- Backed by a 3-year warranty from XP Power ensuring reliable long-term operation.
Product Description
XP Power JTD20 is a series of high-quality isolated DC/DC converters designed to provide regulated 12V DC output at 1.67A current with a power rating of 20 watts. This model supports a wide input voltage range from 9V to 36V DC, accommodating various power supply configurations. The compact 1.6 x 1 inch through-hole package enables easy PCB mounting and integration within electronic assemblies.
Offering efficient power conversion with an 88.5% efficiency rating, the JTD20 converter ensures minimal energy loss and reduced thermal output. It features a wide operating temperature range from -40°C to 100°C, making it suitable for harsh industrial, laboratory, HVAC, and manufacturing environments.
The device provides robust electrical isolation of 1600V DC between input and output, enhancing system safety and reducing electromagnetic interference risks. Additional features include remote On/Off control for flexible system operation and a single reliable output delivering stable 12V voltage.
Typical applications include power supplies for industrial control systems, communication devices, instrumentation, and embedded electronics requiring isolated and regulated DC voltage. The converter’s through-hole mounting facilitates durable connections and straightforward installation.
The converter’s compact footprint and weight optimize space-constrained designs. Its durability and range make it ideal for use in electrical panels and power distribution setups.
XP Power JTD20 Series isolated DC-DC converters are widely used in industrial, laboratory, automotive, and commercial equipment requiring stable and isolated DC power. This product comes with a 3-year factory warranty for peace of mind.
Explore EnvMart’s extensive selection of DC/DC Converters and power supply components for your electrical and electronic system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 20 watts.
It supports a wide input voltage range from 9V to 36V DC.
The efficiency rating of this converter is 88.5%.
The dimensions of this model are 40.64mm in length, 25.4mm in width, and 10.4mm in depth.
It operates within a temperature range from -40°C to 100°C.
This model provides a single output.
The output voltage is 12V DC, and the output current is 1.67A.
It features a through-hole mounting type, suitable for PCB integration.
The isolation voltage provided by this model is 1.6kV DC.
Yes, it includes remote On/Off control functionality for system integration.
It is suitable for power supplies in industrial control systems, communication devices, and instrumentation.
The country of origin for this model is Taiwan.
