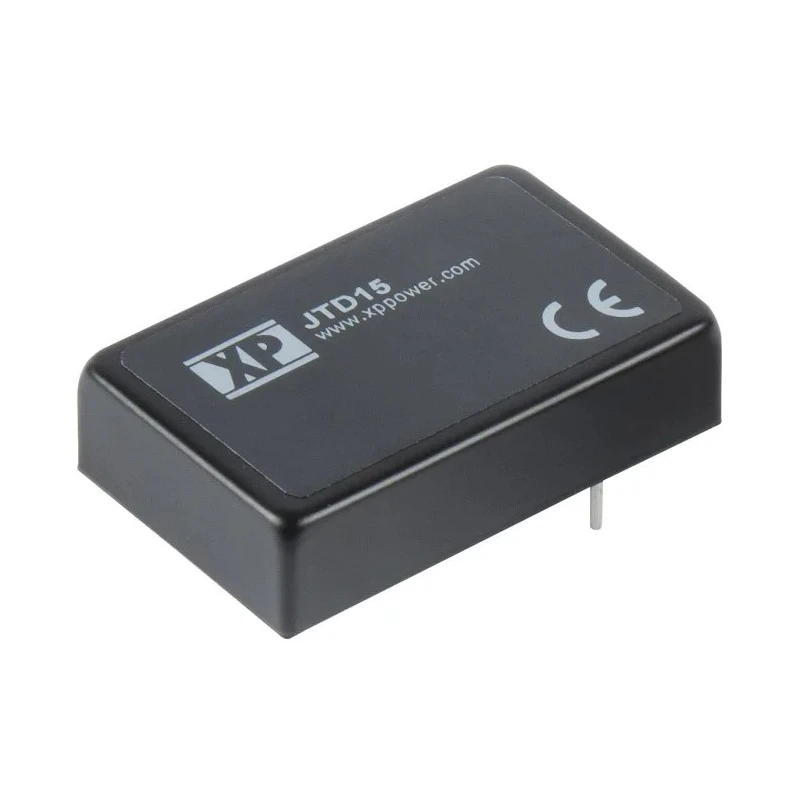

XP Power Isolated DC/DC Converter 15V DC Output 500mA 36V DC Max Input 9V Min Input 15W Through Hole JTD15

Free Delivery in India | Lowest Global Shipping Charges

XP Power Isolated DC/DC Converter 15V DC Output 500mA 36V DC Max Input 9V Min Input 15W Through Hole JTD15

Name: XP Power Isolated DC/DC Converter 15V DC Output 500mA 36V DC Max Input 9V Min Input 15W Through Hole JTD15
Brand: XP Power
SKU: 203984
Price: 576.48 USD
Availability: InStock



Category DC/DC Converter Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters XP Power JTD15 DC/DC Converter, 15V dc/ 500 mA, 36
Brand	XP Power
Efficiency	86%
Length	40.64mm
Model	JTD15
Depth	10.4mm
Width	25.4mm
Mount Type	Through Hole
Series	JTD15
Maximum Operating Temperature	100°C
Package Type	1.6 x 1 in
Minimum Operating Temperature	-40°C
Number of outputs	2
Maximum Output Power	15W
Maximum Input Voltage	36V dc
Minimum Input Voltage	9V
Output Voltage 1	15V dc
Output Current 1	500mA
Isolation Voltage	1.6kV dc
Input Ratio	4:1
Input Ratio4	1
Wide 4	1 input range

Key Features

Through-hole mounting type ensuring secure PCB installation.
Two isolated outputs with ±10% output voltage adjustment.
High isolation voltage of 1.6kV DC for safety and noise reduction.
Compact 1.6 x 1 inch package size with 40.64mm length and 25.4mm width.
Operating temperature from -40°C to 100°C suitable for harsh environments.
High efficiency of 86% reducing heat dissipation.
Remote on/off control for flexible system integration.

Product Description

XP Power JTD15 DC/DC Converter series offers a reliable and efficient solution for isolated DC voltage conversion needs in industrial, electronic, and power supply applications. Model JTD15 provides a stable 15V DC output at 500mA current rating with a maximum input voltage of 36V DC and minimum of 9V DC, accommodating a wide input voltage range ratio of 4:1.

This through-hole mounted converter features a compact footprint of 1.6 inches by 1 inch, with physical dimensions of 40.64mm length, 25.4mm width, and 10.4mm depth. Its isolation voltage rated at 1600V DC enhances operational safety and significantly minimizes electrical noise interference, essential for sensitive electronics and communication equipment.

Designed to operate reliably between -40°C to 100°C ambient temperature, the JTD15 converter sustains performance in demanding industrial environments. It provides two isolated outputs with an adjustable voltage range of ±10%, making it highly versatile for various circuit configurations requiring regulated power supplies.

The unit boasts an efficiency of 86%, promoting reduced power loss and thermal management. Remote On/Off capability allows integration into automated control systems for energy saving and operational convenience. The product is manufactured in Taiwan, Province Of China, and is backed by a 3-year warranty ensuring quality and durability.

Typical applications include industrial control systems, instrumentation, telecommunications equipment, and other electronic systems requiring isolated, regulated power supplies. The JTD15 series is well suited for harsh environments, meeting demanding standards without compromising reliability.

Wide 4:1 input voltage range ensures broad compatibility. Through-hole mounting offers sturdy PCB attachment. High isolation voltage enhances safety and noise immunity. Compact size facilitates easy integration into limited spaces.

Extended operating temperatures support industrial use. Efficient power conversion minimizes heat generation. Remote On/Off control for advanced system management. Two isolated outputs with adjustable voltage for versatility.
