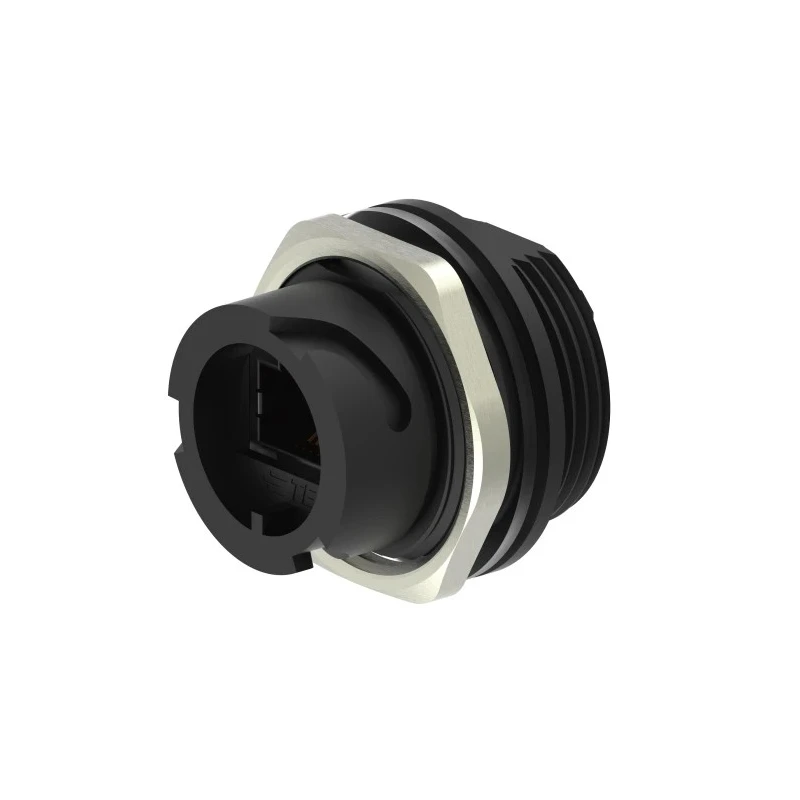

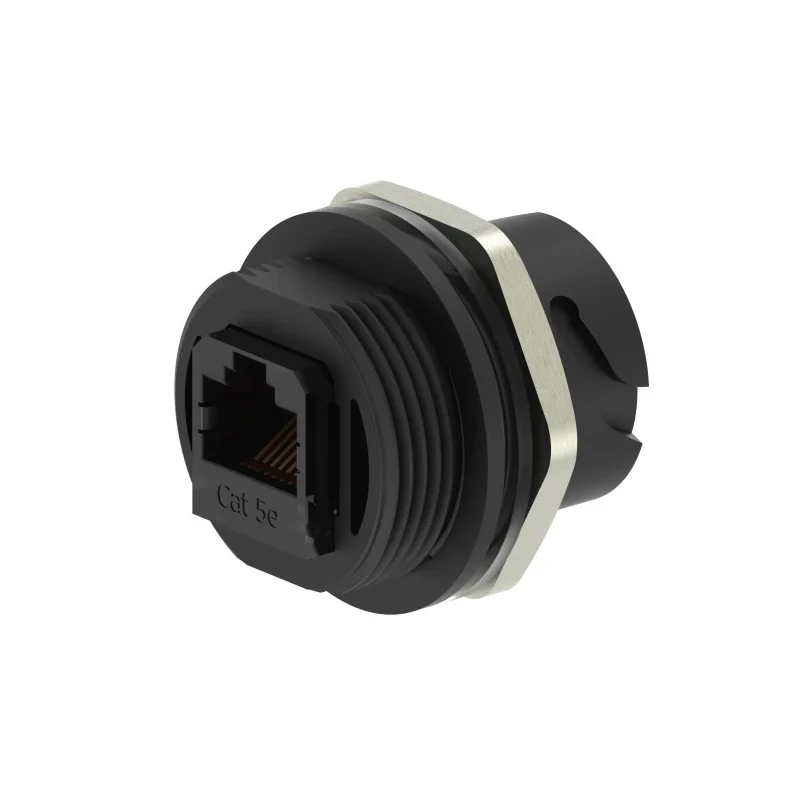

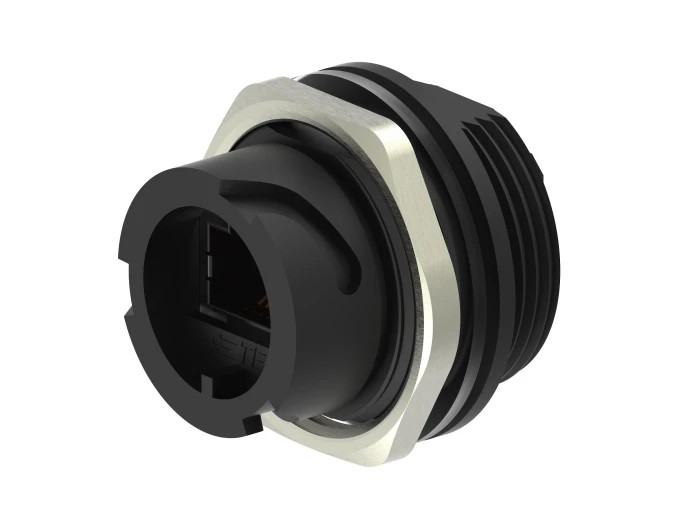

TE Connectivity 2355443 Series RJ45 Connector Female Panel Mount Cat5e Shielded IP67 RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | RJ45 |
| IP Rating | IP67 |
| Connector Type | Circular Connector |
| Mount Type | Panel Mount |
| Contact Material | Phosphor Bronze |
| Series | 2355443 |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Standards/Approvals | EIA/TIA-568-B.2 Cat.5e Specification, RoHS, UL |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- Provides reliable IP67 protection with double-bayonet locking.
- Cat5e rated shielded RJ45 connector for high-speed data transmission.
- Panel mount installation with bulkhead receptacle design.
- Constructed with phosphor bronze contact material and gold over nickel plating.
- Flame-resistant housing made from glass reinforced PBT or die-cast nickel-plated zinc.
- Operates over a temperature range from -40°C to 85°C.
- Meets EIA/TIA-568-B.2 Cat5e, RoHS, and UL standards.
- Resistant to chemicals and UV radiation for outdoor and industrial use.
Product Description
TE Connectivity 2355443 Series RJ45 Connector Female Panel Mount Cat5e Shielded IP67 RJ45 is designed for robust industrial and commercial Ethernet networking applications. Featuring a double-bayonet locking mechanism, it ensures a secure and reliable connection even in harsh environments.
The connector supports Cat5e specifications complying with EIA/TIA-568-B.2 standards, providing high-quality data transmission for network and telecom uses. Its shielded design minimizes electromagnetic interference, enhancing signal integrity.
This panel mount circular RJ45 connector includes a bulkhead receptacle mount suitable for mounting in either outside or inside panel cut-outs, allowing flexible installation options. The contact pins are made from phosphor bronze with gold over nickel plating to ensure durability and resistance to corrosion.
The rugged housing options include flame-resistant glass reinforced PBT or die-cast nickel-plated zinc, which offer strong resistance to chemical exposure and UV radiation, making it suitable for outdoor environments.
Operating temperature ranges from -40°C to 85°C, ensuring performance in a wide variety of climates and conditions. This connector is not rated for hazardous area certification but complies with RoHS and UL standards for safety and reliability.
Provides reliable IP67 sealing for dust and water resistance. Double-bayonet locking mechanism ensures secure connections. Cat5e rated for high-speed Ethernet networks. Panel mountable design with bulkhead receptacle flexibility.
Durable phosphor bronze contacts plated with gold over nickel. Flame-resistant glass reinforced PBT or die-cast nickel-plated zinc housing. Chemical and UV resistant materials for long lifespan in outdoor use. Operational temperature range from -40°C to 85°C.
Complies with EIA/TIA-568-B.2, RoHS, and UL standards.
This Ethernet connector is ideal for industrial automation, network infrastructure, telecommunications, and outdoor equipment installations. It ensures reliable data connectivity where environmental resistance is critical.
Explore more Connectors and electronic components to build robust networking solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an IP67 rating, providing reliable dust and water resistance.
It operates over a temperature range from -40°C to 85°C, suitable for various climates and conditions.
It complies with EIA/TIA-568-B.2 Cat.5e specifications, RoHS, and UL standards.
The contact material is phosphor bronze with gold over nickel plating, and the housing is made from flame-resistant glass reinforced PBT or die-cast nickel-plated zinc.
This model features a panel mount design with a bulkhead receptacle, allowing for flexible installation in various panel cut-outs.
It is a circular RJ45 connector designed for high-speed Ethernet networks, specifically rated for Cat5e applications.
This RJ45 connector has 1 port.
The connector is shielded, which helps minimize electromagnetic interference and enhances signal integrity.
It is ideal for industrial automation, network infrastructure, telecommunications, and outdoor equipment installations.
It features a double-bayonet locking mechanism, ensuring secure and reliable connections even in harsh environments.
Yes, the materials used in this connector are resistant to chemicals and UV radiation, making it suitable for outdoor use.
The connector is manufactured in India.
