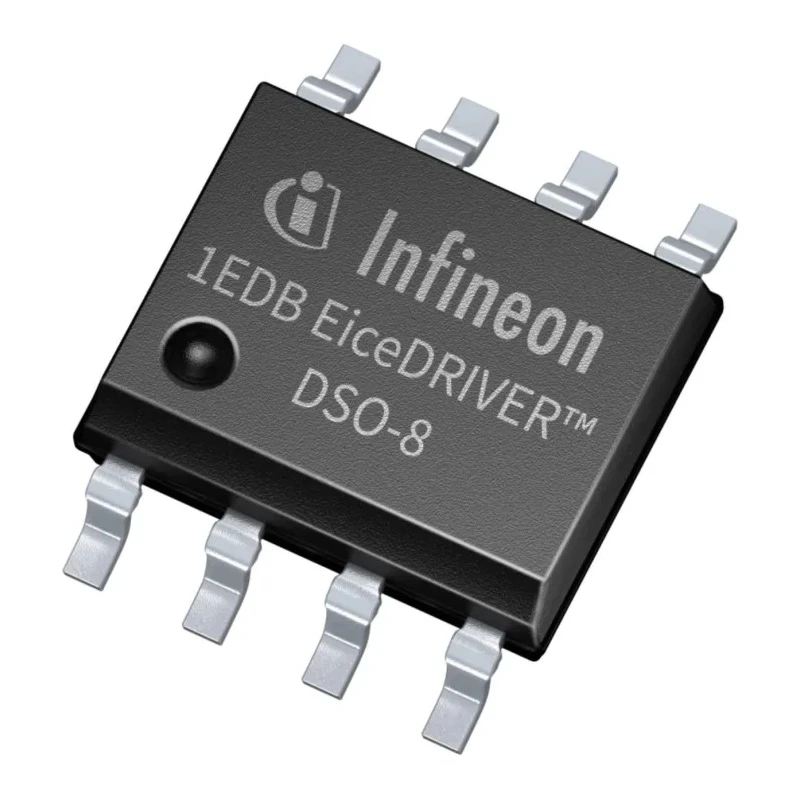

Infineon MOSFET Gate Driver 5.4 A Output Current 8-Pin 15V Surface Mount PG-DSO-8 Package 1EDB7275FXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 1EDB7275FXUMA1 |
| Mount Type | Surface |
| Series | 1ED |
| Output Current | 5.4A |
| Maximum Operating Temperature | 125°C |
| Package Type | PG-DSO-8 |
| Minimum Operating Temperature | -40°C |
| Rise Time | 16ns |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 3V |
| Fall Time | 9ns |
| Driver Type | MOSFET |
Key Features
- Operates with a minimum supply voltage of 3V for compatibility with low-voltage systems.
- Supports maximum supply voltage of 15V to deliver substantial gate drive amplitude.
- Offers fast switching with a rise time of 16 ns and fall time of 9 ns.
- Designed for surface-mount applications with compact PG-DSO-8 package format.
- Meets automotive standard AEC-Q100 ensuring reliability in vehicle electronics.
- RoHS compliant ensuring restricted hazardous substance content.
- Operates effectively within temperature range of -40°C to 125°C.
- Ideal for driving power MOSFETs in DC-DC converters and motor-drive control systems.
Product Description
Infineon 1EDB7275FXUMA1 MOSFET Gate Driver is a high-performance gate driver designed for industrial and automotive power stages. It features a low minimum supply voltage of 3V and delivers a high drive current of 5.4 A, enabling rapid switching of power MOSFETs to enhance efficiency in power management circuits. The surface-mount PG-DSO-8 package supports compact board layouts and facilitates ease of assembly.
This gate driver supports fast switching with a rise time of 16 ns and a fall time of 9 ns, ensuring swift turn-on and turn-off transitions of MOSFET transistors. It withstands a wide operating temperature range from -40°C to 125°C, making it suitable for demanding automotive and industrial environments.
Compliance with the AEC-Q100 automotive standard certifies its reliability for use in vehicle electronics, including power management modules and half-bridge or full-bridge transistor stages. The device is also RoHS compliant, reflecting adherence to environmental and safety requirements for restricted hazardous substances.
Applications include driving power MOSFETs in DC-DC converters, industrial motor drives, automotive power modules, and compact electronics assemblies. Its surface-mount design supports modern manufacturing processes and space-constrained applications.
Operates from a low supply voltage of 3V for wide compatibility. High output current of 5.4 A for efficient gate charge delivery. Fast switching with 16 ns rise and 9 ns fall times reduces power loss. Compact PG-DSO-8 surface mount package for space-saving designs.
Meets AEC-Q100 automotive qualification for reliability in vehicles. Wide temperature operating range from -40°C to 125°C for harsh environments. RoHS compliant to meet environmental safety standards. Suitable for industrial, automotive, and electronic power stage applications.
Explore the range of power management ICs and gate drivers at EnvMart to optimize your electronic circuit designs with trusted Infineon components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output current of 5.4 A, enabling efficient gate charge delivery for power MOSFETs.
It operates with a minimum supply voltage of 3V and supports a maximum supply voltage of 15V.
The rise time is 16 ns and the fall time is 9 ns, allowing for fast switching transitions.
It comes in a compact PG-DSO-8 surface mount package, suitable for space-constrained designs.
It operates effectively within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
Yes, it meets the AEC-Q100 automotive standard, ensuring reliability for vehicle electronics applications.
This unit is RoHS compliant, which means it adheres to restrictions on hazardous substance content.
It features an 8-pin configuration, facilitating easy integration into various circuits.
It is ideal for driving power MOSFETs in applications such as DC-DC converters and motor-drive control systems.
This model belongs to the 1ED series of MOSFET gate drivers.
The Infineon MOSFET Gate Driver is manufactured in India.
It is classified as a MOSFET driver, designed specifically for controlling MOSFET transistors.
