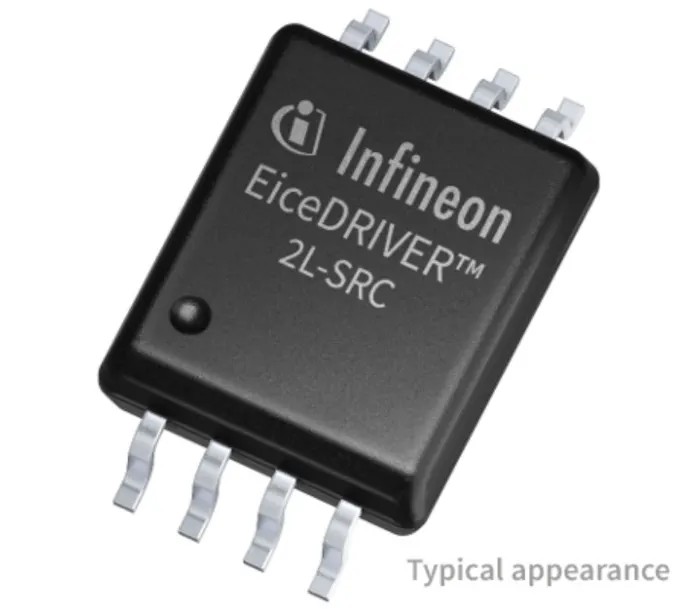

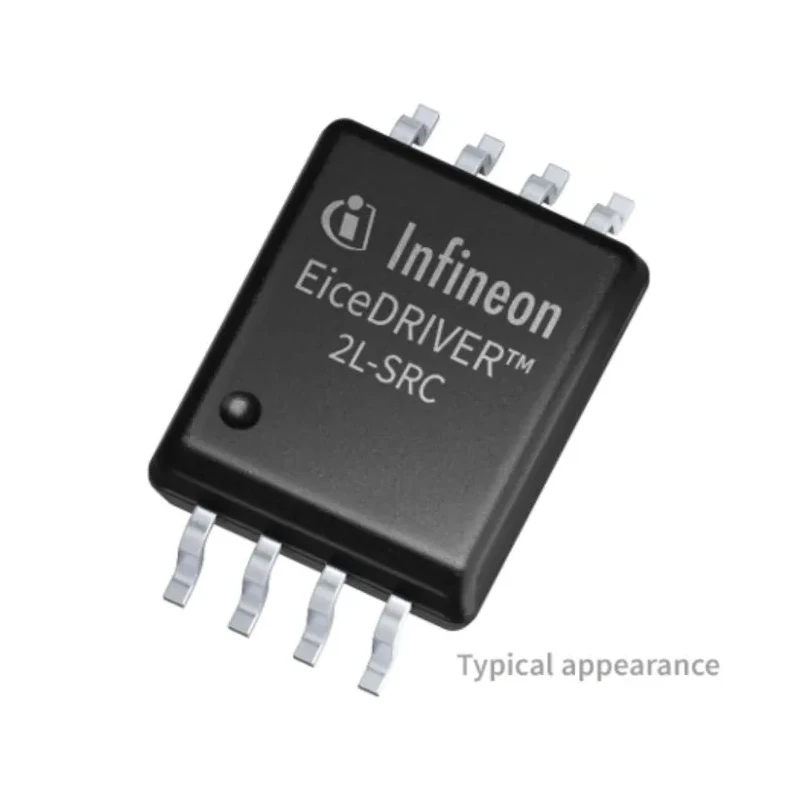

Infineon MOSFET Gate Driver 18 A 8-Pin 15V PG-DSO 1ED3241MC12HXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.65mm |
| Length | 7.5mm |
| Model | 1ED3241MC12HXUMA1 |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | 1ED3241MC12H |
| Output Current | 18A |
| Maximum Operating Temperature | 125°C |
| Package Type | PG-DSO |
| Minimum Operating Temperature | -40°C |
| Rise Time | 30ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| Fall Time | 8.5ns |
| Driver Type | MOSFET |
Key Features
- Features single channel isolated gate drive with two-level slew-rate control.
- Operates with 3.3 V and 5 V input supply voltage.
- Fast switching with 8.5 ns fall time and 30 ns rise time.
- Operates within 5 V to 15 V supply voltage range.
- Compact 8-pin PG-DSO surface mount package.
- Wide operating temperature range from -40°C to 125°C.
- High thermal resistance of 104 K/W ensures efficient heat dissipation.
- Supports output current up to 18 A for high power switching.
Product Description
Infineon 1ED3241MC12HXUMA1 MOSFET Gate Driver is a high performance single-channel isolated driver IC designed for efficient MOSFET switching control. The device supports an output current of 18 A and an 8-pin PG-DSO package form factor with compact dimensions of 7.5 mm in length, 6.4 mm in width, and 2.65 mm in height. Its driver type is MOSFET with two-level slew-rate control to optimize switching speed and electromagnetic compatibility.
This gate driver IC operates with input voltages from 3.3 V and 5 V and supports a supply voltage range from 5 V minimum to 15 V maximum. It features fast switching with 8.5 ns fall time and 30 ns rise time, enabling rapid MOSFET switching essential for power management circuits. The device maintains reliability over a wide temperature range from -40°C to 125°C.
The PG-DSO surface mount package ensures easy assembly on circuit boards and solid thermal management with a 104 K/W thermal resistance rating. Although it is not compliant with automotive standards, its robust design makes it suitable for industrial and electronic power applications such as motor drives, power converters, and industrial controls.
Features single channel isolated gate drive with two-level slew-rate control. Operates efficiently with 3.3 V and 5 V input supply voltages. Fast switching with 8.5 ns fall time and 30 ns rise time. Wide operating temperature range from -40°C to 125°C.
Compact 8-pin PG-DSO surface mount package. High thermal resistance of 104 K/W for reliable heat dissipation. Output current capacity of 18 A for high power control. Supply voltage range of 5 V to 15 V suitable for various applications.
Suitable for industrial electronics, power management ICs, and motor control systems.
Infineon's 1ED3241MC12HXUMA1 MOSFET Gate Driver is an essential component for enhancing the efficiency and reliability of power electronic designs. Its compact form factor and robust electrical characteristics make it ideal for embedded applications requiring fast switching and high current capability.
Explore a wide selection of power management integrated circuits and gate drivers on EnvMart to optimize your industrial and electronic projects with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an output current capacity of 18 A, making it suitable for high power switching applications.
The device operates within a supply voltage range of 5 V to 15 V.
It has a length of 7.5 mm, a width of 6.4 mm, and a height of 2.65 mm.
The rise time is 30 ns and the fall time is 8.5 ns, enabling fast switching performance.
It operates within a wide temperature range from -40°C to 125°C.
This model comes in a compact 8-pin PG-DSO surface mount package.
It operates efficiently with input supply voltages of 3.3 V and 5 V.
This model utilizes a MOSFET driver type, designed for efficient switching control.
It has a high thermal resistance rating of 104 K/W, which aids in efficient heat dissipation.
This device is not compliant with automotive standards but is suitable for industrial and electronic power applications.
It is suitable for applications such as motor drives, power converters, and industrial controls.
The series designation for this model is 1ED3241MC12H.
