Murata Power Solutions Series Isolated DC/DC Converter 24V DC Input 20V, -5V Output, 240mA Current, 4.8W Power, Surface MGJ6

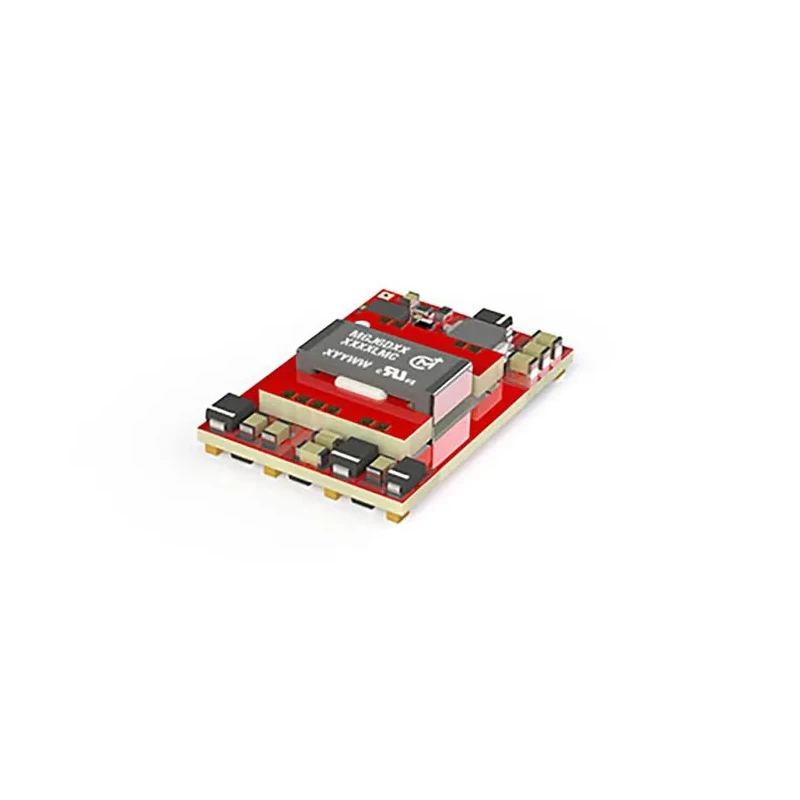

Murata Power Solutions MGJ6D242005LMC-R7 is an isolated DC/DC Converter specially designed for high side and low side gate drive circuits in power electronics such as IGBTs and MOSFETs. It provides bipolar asymmetric output voltages of 20V and -5V at a maximum output current of 240mA, drawing from a 24V DC input voltage with a minimum input of 18V DC, delivering up to 4.8 watts of power. The device comes in a surface mount package with a compact footprint, measuring 27.81mm in length, 39.98mm in width, and 9.35mm in depth, and weighing only 2.3g.

This converter series is tailored for applications requiring high isolation and reliability, featuring an isolation voltage test rating of 5.7kV DC and ultra low coupling capacitance of 15pF, making it ideal for motor drives, inverters, and industrial electronic circuits sensitive to interference. Operating efficiently up to 81%, the converter supports an extended temperature range from -40°C to +105°C, ensuring stable performance even in harsh industrial environments.

The MGJ6 series enhances system efficiency by enabling optimized drive levels for gate drivers in bridge circuits. It is compliant with RoHS standards, reflecting its environmental acceptance in modern electronics design. This converter is widely used in industrial, manufacturing, power supply, and automation sectors where dependable isolated DC power conversion is critical.

Offers dual output voltages of 20V and -5V at 240mA output current. High isolation voltage rating of 5.7kV DC ensures safe system operation. Surface mount package with dimensions 27.81 x 39.98 x 9.35 mm and weight 2.3g. Efficiency rating of 81% reduces energy losses in power systems.

Wide operating temperature range from -40°C to +105°C for industrial use. Low coupling capacitance of 15pF minimizes electrical noise. Compatible with gate drive circuits for IGBT and MOSFET devices.

This product represents a highly reliable and precision-engineered DC-DC conversion solution for challenging electronic applications. It supports implementation in power management, motor control, industrial automation, and laboratory instrumentation where compact, efficient, and isolated power stages are required.
