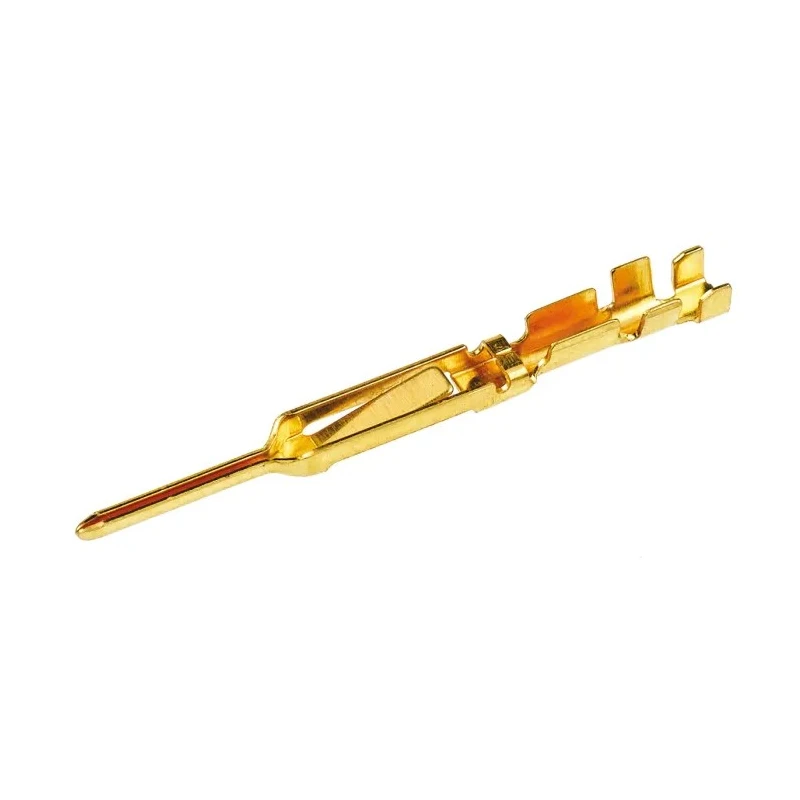

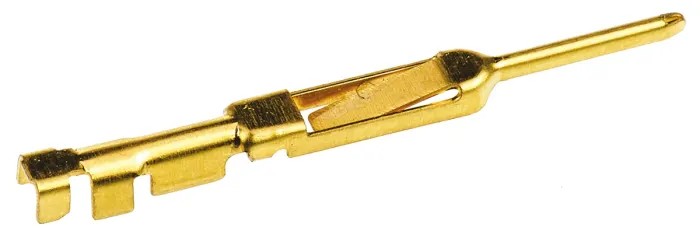

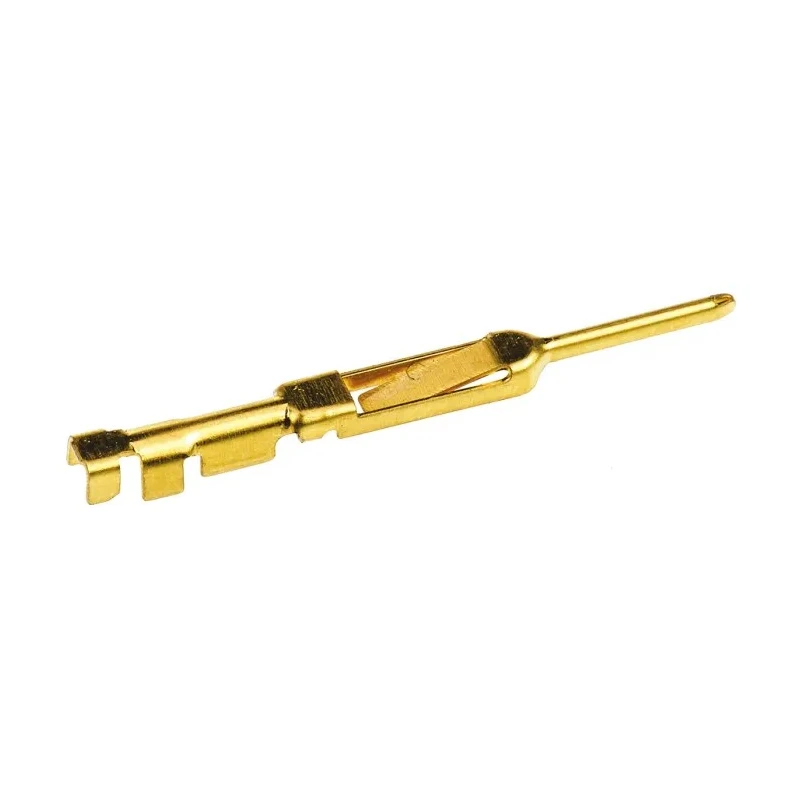

TE Connectivity FFC Series Male Crimp Terminal 2A Current 26 AWG Min Wire, 22 AWG Max Wire 86561-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 21.1mm |
| Model | 86561-6 |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | FFC Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 25mΩ |
| 509-2183 | 0.4μm Gold plated on contact area, Gold Flash on remainder, loose |
| 668-9416 | 0.4μm Gold plated on contact area, Gold Flash on remainder, strip |
| 668-9410 | Tin plated all over, strip |
| 668-9429 | Tin plated all over, loose |
Key Features
- Precision gold plating on contact area ensures excellent conductivity and corrosion resistance.
- Constructed with phosphor bronze for durable and reliable contact material.
- Crimp termination type suitable for secure wiring applications.
- Operates efficiently within temperature range of -55°C to 105°C.
- Compact length of 21.1mm enables use in space-constrained electronic components.
- Compatible with AMPMODU Mod II Male pin crimps and 2.54mm pitch systems.
- Suitable for high-reliability wire-to-board and wire-to-wire connections.
- No specific standards approvals listed but designed for industrial electronic use.
Product Description
TE Connectivity 86561-6 FFC Series Male Crimp Terminal is a high-quality crimp contact designed for use with FFC connector housings. It supports a current rating of 2A and accommodates wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum). The contact is made from phosphor bronze material, offering excellent mechanical strength and electrical conductivity.
This male crimp terminal features gold plating on the contact area to ensure optimal electrical connection and resistance to corrosion, supplemented by a gold flash finish on other areas. The terminal length is 21.1mm, making it compact and suitable for use in various PCB and cable mount receptacles.
The crimp termination ensures secure and reliable wiring, suitable for industrial electronics applications involving wire-to-board and wire-to-wire connections. It operates in a wide temperature range from -55°C up to 105°C, facilitating use in demanding environments.
Designed to be a part of the AMPMODU Mod II Male pin crimp series, this product offers compatibility with a broad range of related contacts and housings, including those with a 2.54mm centerline pitch.
Precision gold plating for conductivity and corrosion resistance. Phosphor bronze contact material for durability. Crimp termination for reliable connections. Operating temperature range from -55°C to 105°C. Compact 21.1mm length fits tight spaces.
Compatible with AMPMODU Mod II pin crimps and 2.54mm pitch systems. Suitable for wire sizes 26 AWG to 22 AWG. Current rating of 2A supports moderate power applications.
This product is ideal for use in electronic manufacturing, industrial automation, telecommunications, and other applications requiring secure and high-quality connector terminations. It is well-suited for laboratory, commercial, and manufacturing settings. Browse TE Connectivity Crimp Contacts and connectors on EnvMart for trusted industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2A, making it suitable for moderate power applications.
It operates efficiently within a temperature range of -55°C to 105°C, allowing use in various environments.
The terminal accommodates wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum).
The length of this terminal is 21.1mm, which is compact and suitable for space-constrained applications.
It features a crimp termination type, ensuring secure and reliable wiring connections.
The contact is constructed from phosphor bronze, providing excellent mechanical strength and electrical conductivity.
The contact area is precision gold plated, which ensures excellent conductivity and corrosion resistance.
Yes, it is designed for use with FFC connector housings and is compatible with AMPMODU Mod II Male pin crimps.
The maximum contact resistance is rated at 25mΩ, ensuring effective electrical performance.
The TE Connectivity FFC Series Male Crimp Terminal is manufactured in India.
It is suitable for high-reliability wire-to-board and wire-to-wire connections in industrial electronics applications.
This model features options such as 0.4μm gold plating on the contact area and gold flash on the remainder, as well as tin plating options.
