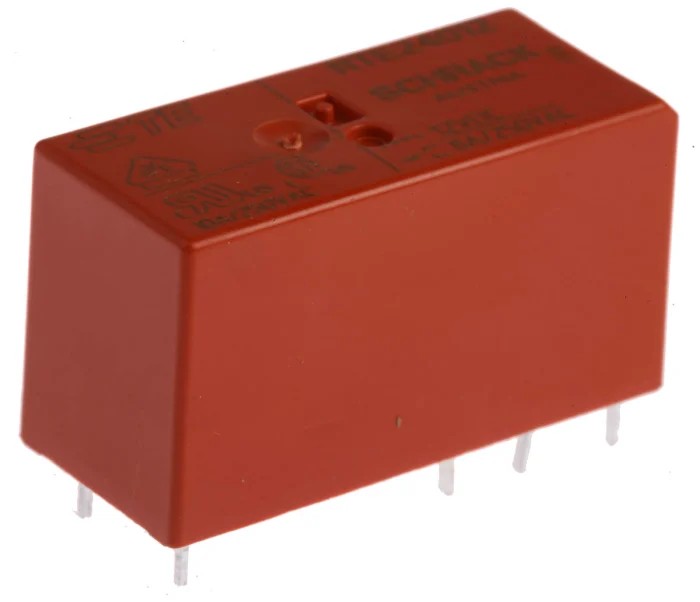

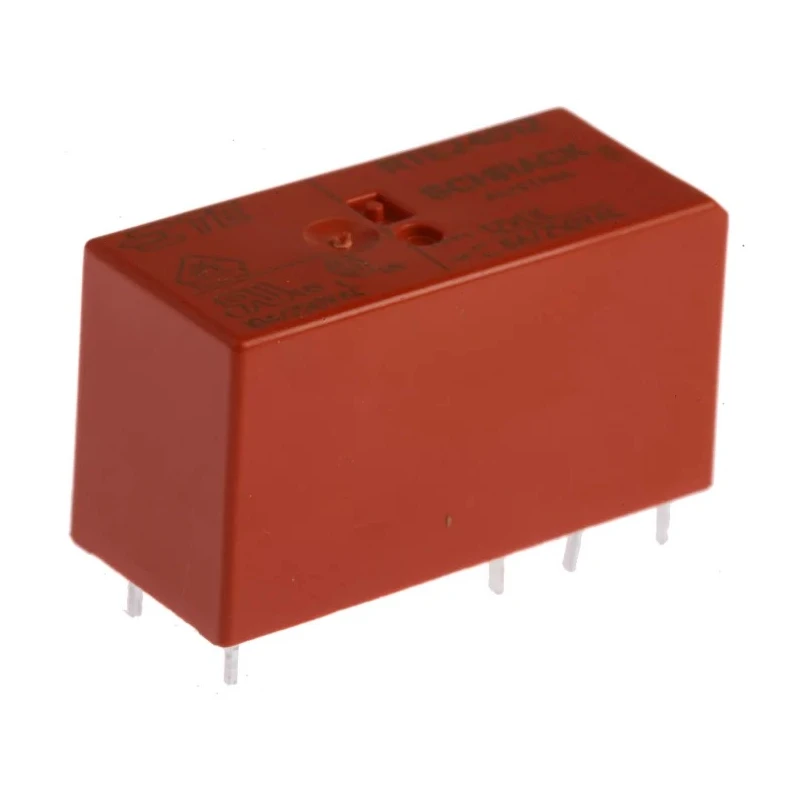

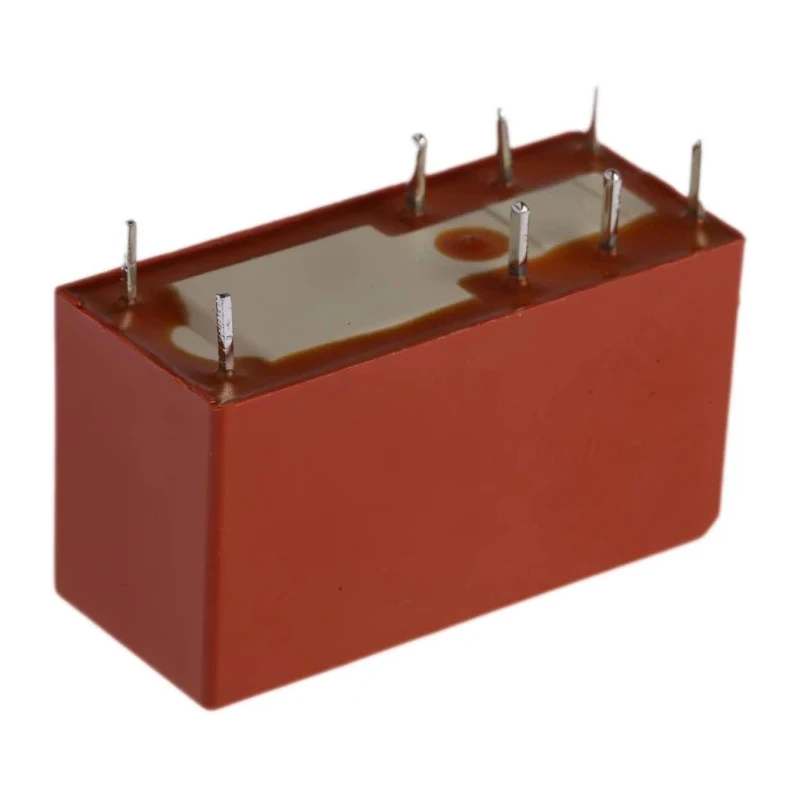

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RTE24012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |

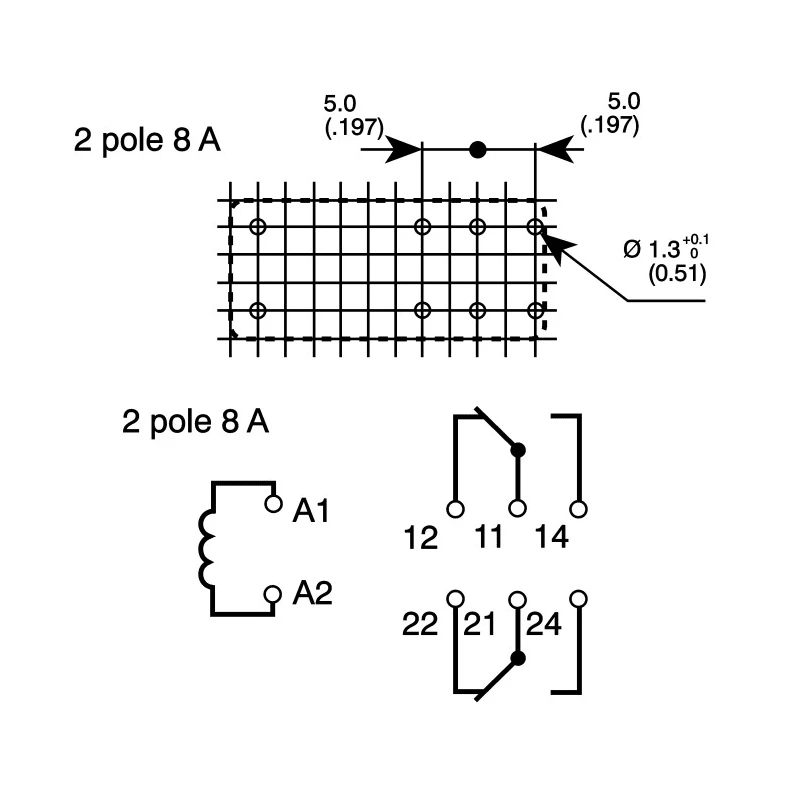

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Coil voltage is 12 volts DC ensuring low power actuation.
- Double Pole Double Throw (DPDT) contact configuration offers versatile switching options.
- High switching current capacity of 8 amperes supports demanding electrical loads.
- Durable silver nickel alloy contact material improves conductivity and longevity.

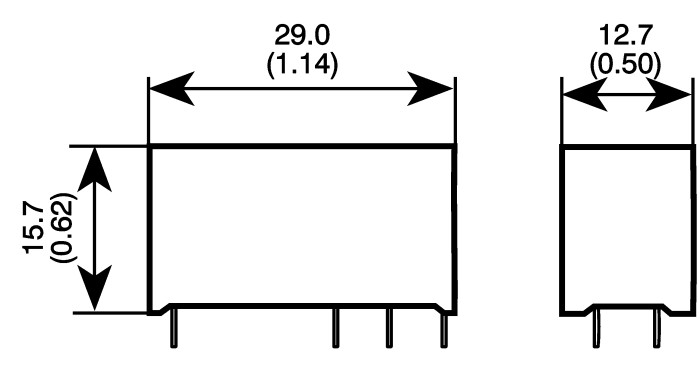

- Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm suitable for PCB mounting.
- Coil resistance of 360 ohms limits power consumption to 400 milliwatts.
- Wide operating temperature range between -40°C and 85°C ensures functionality in harsh environments.
- Through-hole solder terminals are compatible with standard PCB assembly processes.
Product Description
TE Connectivity RTE24012 is a versatile PCB power relay featuring a 12V DC coil voltage and 8A switching current capability with a Double Pole Double Throw (DPDT) contact configuration. Designed for general purpose use, this relay is ideal for automation, HVAC systems, security lighting, and other domestic or industrial applications.
The relay's contact material uses silver nickel alloy to provide excellent electrical conductivity and resistance to corrosion, enhancing durability and performance. It operates reliably in a wide temperature range from -40°C to 85°C, making it suitable for harsh environments and long-term use.
The relay is mounted via PCB through-hole solder terminals with a compact footprint of 29mm length, 12.7mm width, and 15.7mm height to facilitate space-efficient circuit design. It draws low coil power of 400mW with a coil resistance of 360 ohms, minimizing energy consumption during operation.
12V DC coil voltage for efficient control. DPDT contact configuration enables multiple circuit switching. High 8A switching current supports moderate loads. Silver nickel alloy contacts for durability and conductivity. Through-hole solder terminals for standard PCB mount.
Wide operating temperature range from -40°C to 85°C. Compact dimensions suitable for PCB assembly. RoHS compliant ensuring environmental safety. Engineered and manufactured in Austria under quality standards.
This TE Connectivity RTE24012 power relay is widely used in industrial automation, heating systems, security lighting, and other electrical control applications. It provides reliable switching performance with a long service life, suitable for laboratory, manufacturing, HVAC, and commercial equipment uses.
Explore more Power Relay solutions and other electronic components within the TE Connectivity range at EnvMart to meet your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 12 volts DC, ensuring low power actuation.
This power relay has a maximum switching current capacity of 8 amperes, suitable for moderate electrical loads.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching options.
The coil resistance is 360 ohms, which limits power consumption to 400 milliwatts during operation.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height, making it suitable for PCB mounting.
It operates reliably in a wide temperature range from -40°C to 85°C, suitable for harsh environments.
The contacts are made from silver nickel alloy, which enhances conductivity and longevity.
This model is designed for PCB mounting and features through-hole solder terminals for standard assembly processes.
Yes, the RTE24012 is RoHS compliant, ensuring it meets environmental safety standards.
The coil power consumption is 400 milliwatts, which is relatively low for efficient operation.
This relay is ideal for general purpose use in automation, HVAC systems, security lighting, and other electrical control applications.
The maximum switching AC voltage for this relay is 400 volts AC.
